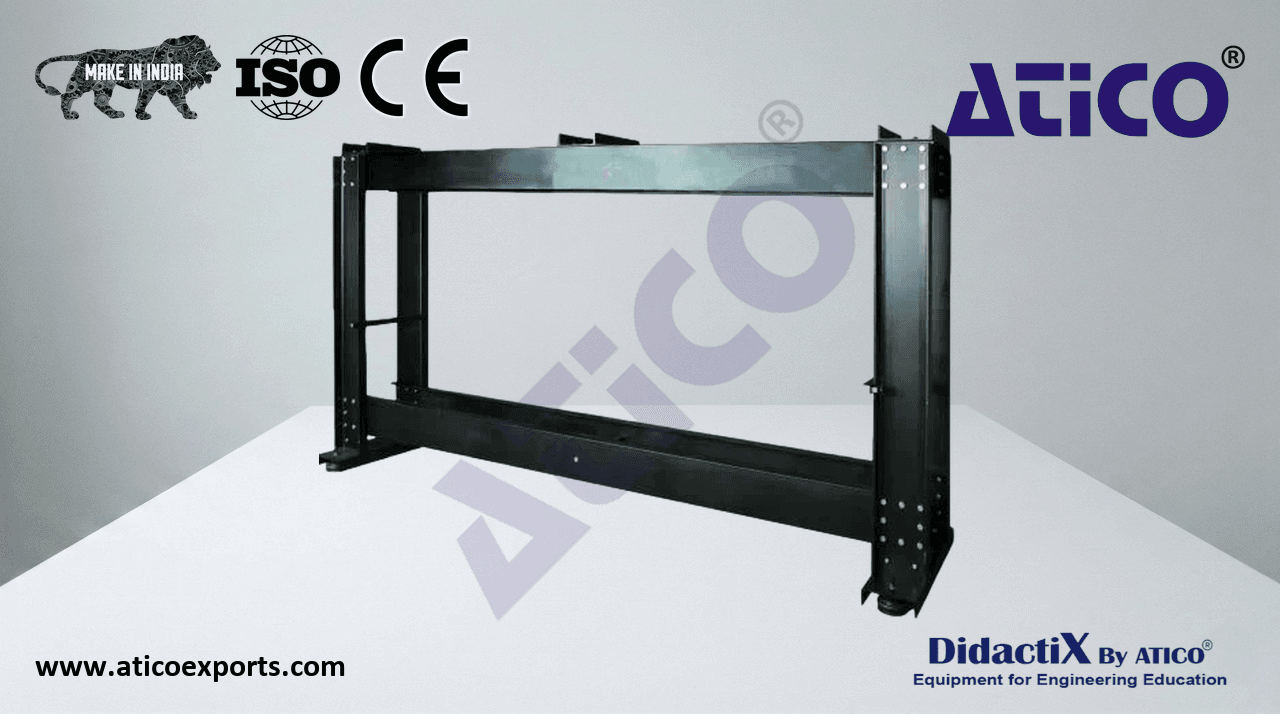

300kN UNIVERSAL TEST FRAME

A heavy-duty universal test frame constructed from a twinned steel channel frame fastened with high tensile fixings. Provides a large internal working space suitable for structural testing of beams, trusses and other specimens under point and distributed loads. Overall structure: 4. Learn about 300kN UNIVERSAL TEST FRAME suppliers for optimal educational outcomes.. 61 m long ° 2. 53 m high ° 1. Learn about 300kN UNIVERSAL TEST FRAME utm-magnus India for optimal educational outcomes.. 20 m wide
Internal working space: 4. 0 m long ° 1. Learn about 300kN UNIVERSAL TEST FRAME price for optimal educational outcomes.. 6 m high.

• Frame steel section: Nominally 300 (W) × 90 (H) mm parallel flange
• Base feet: 1200 mm (L)
• Upright member: 2340 mm (L)
• Upper and lower member: 4610 mm (L)
• Cross support: 600 mm (L)
• Tie bar: Ø50.8 × 580 mm (L)
• Machine mounts: Ø160 mm, M20, up to 100 mm adjustment
• All steel frame parts painted with corrosion protection
• Point test load capacity: 300 kN
• Four-point bending test capacity: 2 × 200 kN
