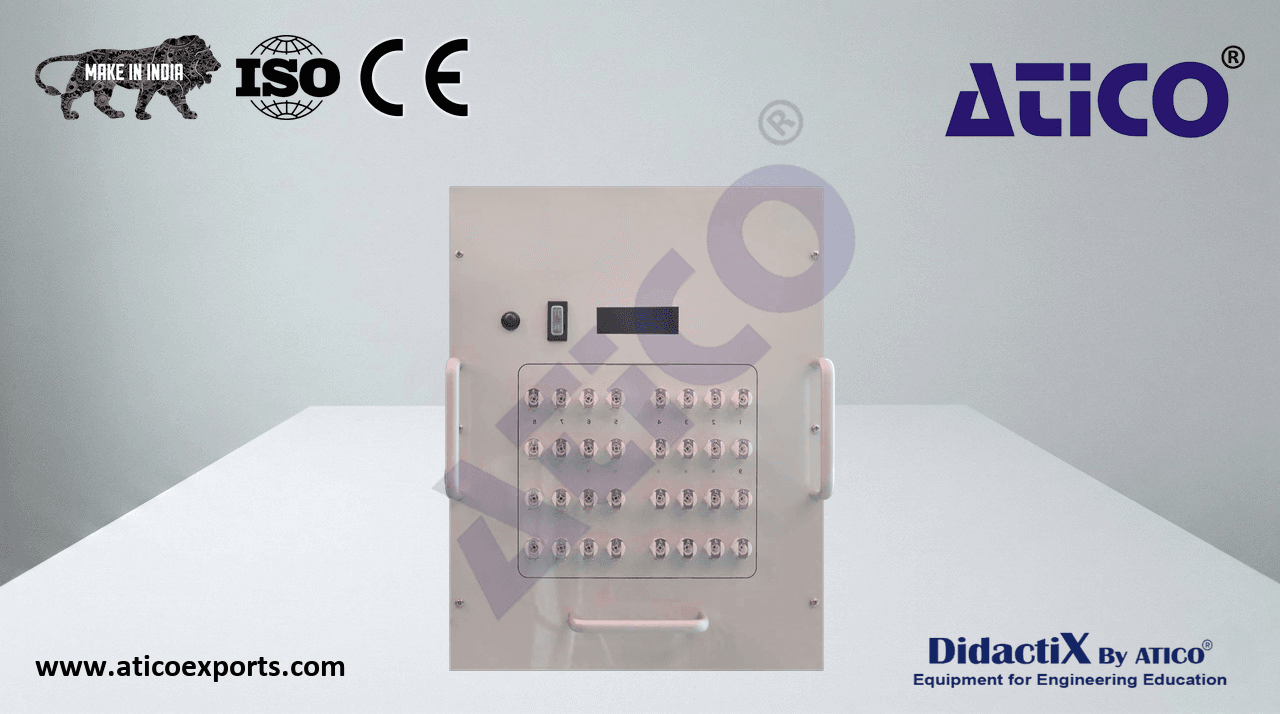

32-Way Pressure Display Unit

A 32-way pressure measurement and display unit for use with the FC series flumes.

The 32-Way Pressure Display Unit is an optional ancillary for the Flow Channel range. It measures and displays up to 32 pressures from models, Pitot tubes and other measuring instruments fitted to a water channel. It is ideally suited to applications where multiple pressure measurements are required, for example in flow over spillways and through sluice gates. Learn about 32-Way Pressure Display Unit exporters for optimal educational outcomes.. The unit mounts onto the control and instrumentation frame of the water channel. Connection to each of the 32 calibrated pressure transducers is via quick-release pressure inputs mounted on the front panel of the unit. Learn about 32-Way Pressure Display Unit for educational labs for optimal educational outcomes.. This allows easy and quick connection between the unit and an experiment mounted in a water channel. All pressures are measured with respect to atmosphere. Learn about 32-Way Pressure Display Unit manufacturers for optimal educational outcomes.. The unit has an integral liquid crystal display with a scroll switch that allows all 32 channels to be viewed in groups of four at any time. The conditioned outputs of the pressure sensors, and any other connected compatible electronic instruments, may be output to an optional data acquisition system to allow computer-based data acquisition and display. Learn about 32-Way Pressure Display Unit equipment for optimal educational outcomes.. Using a data acquisition system enables accurate real-time data capture, display, calculation and charting of all relevant parameters on a suitable computer (computer not included). When the 32-Way Pressure Display Unit is combined with a data acquisition system, it allows laboratory time to be used more efficiently compared to recording data manually. Learn about 32-Way Pressure Display Unit price for optimal educational outcomes.. The facility in the software to average data to remove the fluctuations inherent in water channel measurements, enhances the quality of the results by making their interpretation much easier. This provides significant experimental advantages over conventional instruments such as manometers. Learn about 32-Way Pressure Display Unit fluid-mechanics India for optimal educational outcomes..
