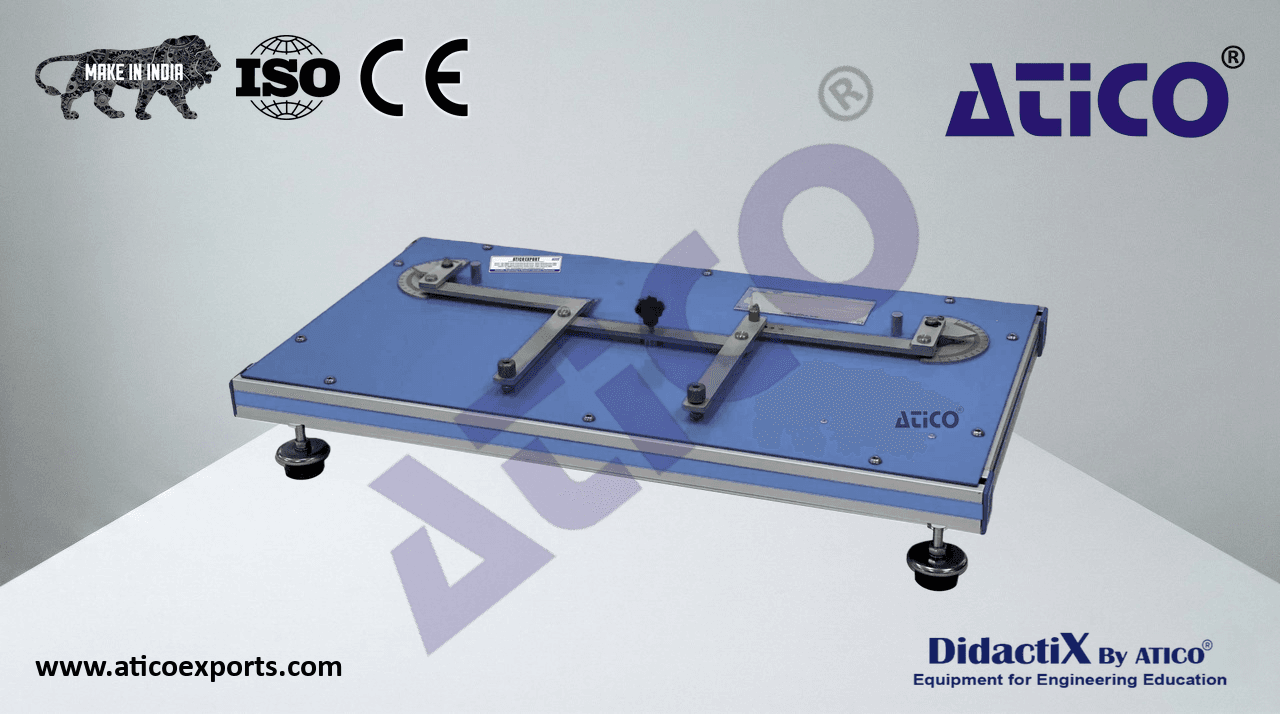

Ackermann Steering Mechanism

The Ackermann Steering Mechanism, allows to explain the special features of the Ackermann steering geometry and to study the influence of the steering angle with varying steering geometry.

ATENG 12073 — Ackermann Steering Mechanism

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12073” unit mainly consists of:
  Two levers made of aluminum.
  Intermediate steering rod made of aluminum.
  Two track rods, with individual length adjustable.
• Two pivots. Space between pivots: 480 mm approx.
  Two indicators to measure the steering angle.
• Two graduated discs for angle displacement:
  ATENG 12073 detail
• Measuring range of the steering angle: ± 70°.
• Scale graduation: 1°.
