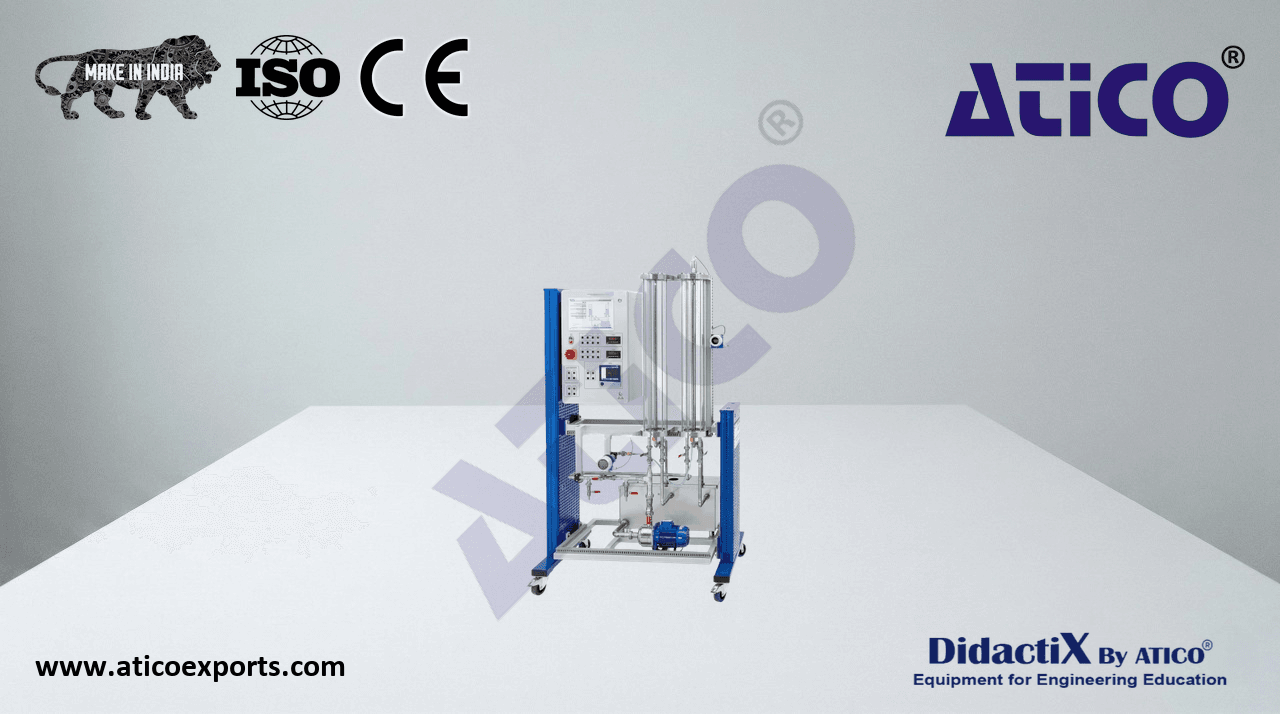

The trainer aims to practise the use and practical handling of industrial components that are connected using a current-loop interface.
Technical Specifications
use and practical handling of industrial components with a 4–20 mA current-loop interface
various measuring principles for level measurement: direct measurement with capacitive level sensor and indirect measurement with capacitive pressure sensor
one glass tank with 1 level sensor and 1 pressure sensor
each sensor equipped with one analogue 4–20 mA interface and one HART interface
current-loop connections led out with lab jacks on the front of the switch cabinet
2-channel line recorder with touchscreen operation
USB interface to export the measurement data
second glass tank with two free connections, prepared for own measuring instruments
