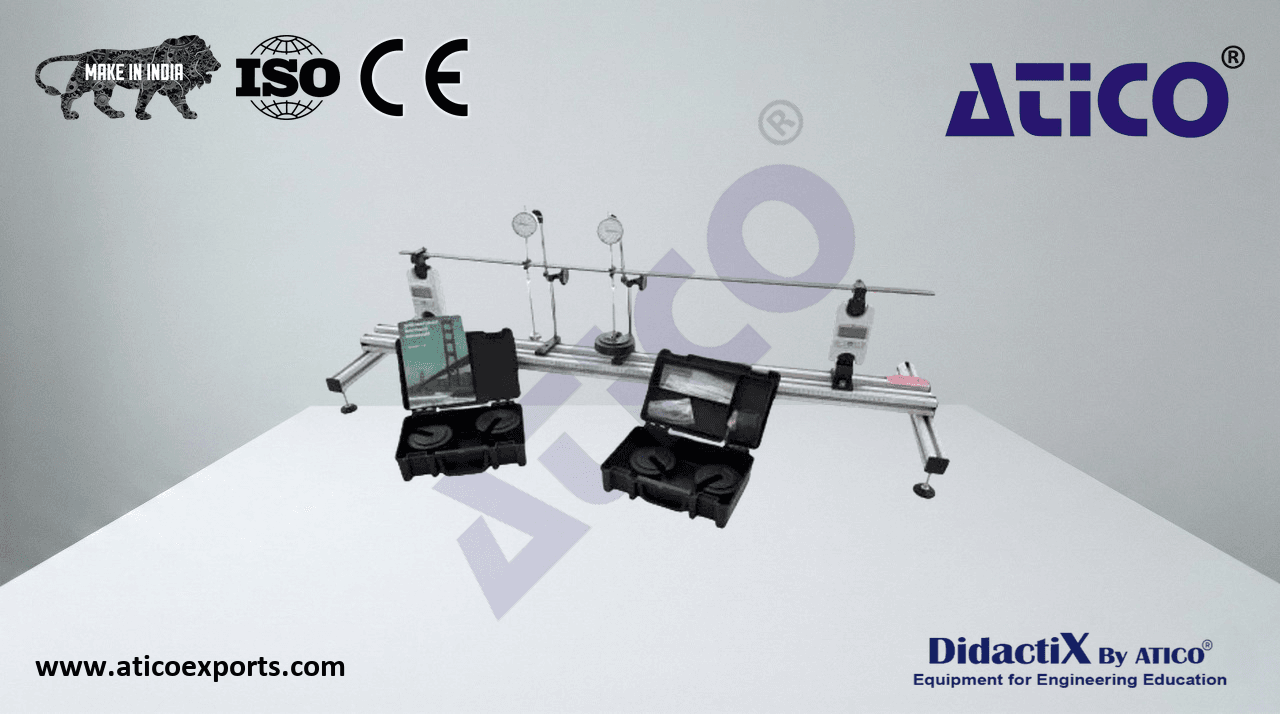

ADVANCED BEAM TESTING APPARATUS (ANALOGUE VERSION)

The bench-mounted apparatus has an aluminium profiled base on levelling feet. Three reaction piers can be moved along the base to create differing test spans. Each reaction pier displays the applied force digitally in Newtons (N), has a tare function, and a clamping mechanism for the test beam allowing simply supported end conditions with no vertical movement. Learn about ADVANCED BEAM TESTING APPARATUS (ANALOGUE VERSION) manufacturers for optimal educational outcomes.. A set of test beams is supplied together with two analogue dial gauges for measuring beam deflections and slopes. The dial gauges are mounted on movable stands for accurate positioning along the beam length. Learn about ADVANCED BEAM TESTING APPARATUS (ANALOGUE VERSION) suppliers for optimal educational outcomes.. A set of calibrated weights, hangers, and necessary tools are included.

• Base frame: approximately 1400mm in length
• Three adjustable reaction piers
• Newton (N) display: 0.1N resolution
• Battery-operated reaction piers with auto-off function
• Hangers and beam clamps × 4
• Analogue dial gauges × 2: 25mm travel, 0.01mm resolution
• Steel test beam: 1200(L) × 25(W) × 5(H) mm
• Aluminium test beam: 1200(L) × 25.4(W) × 3.2(H) mm
• Aluminium test beam: 1200(L) × 25.4(W) × 4.76(H) mm
• Aluminium test beam: 1200(L) × 25.4(W) × 6.35(H) mm
