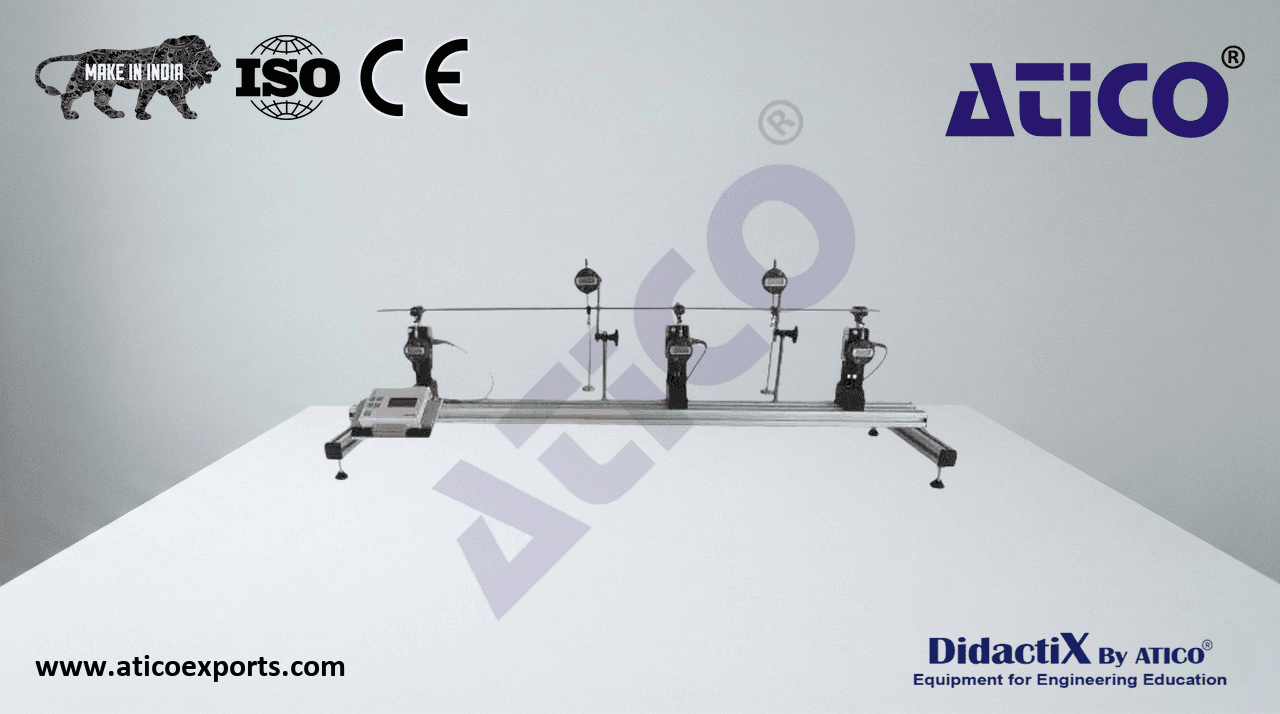

ADVANCED BEAM TESTING APPARATUS (DIGITAL VERSION)

An unlimited range of beam experiments can be performed to measure support reactions, deflections, and rotations of simply supported, fixed, and two-span continuous beams, simple and propped cantilevers, and sinking supports. Test beams of different material and cross-section are carried by pinned supports on three load-measuring piers, each containing an electronic load cell measuring vertical reaction forces. Load cell outputs are fed into a supplied Data Acquisition Interface, with software capturing all key experimental parameters. Learn about ADVANCED BEAM TESTING APPARATUS (DIGITAL VERSION) for educational labs for optimal educational outcomes.. Three dial gauges on movable stands measure beam and support displacements. Supplied with hangers, a calibrated weight set, and a set of test beams. Learn about ADVANCED BEAM TESTING APPARATUS (DIGITAL VERSION) equipment for optimal educational outcomes..

• Bench-mounted test frame supplied
• Test beams:
  • Steel: 1200(L) × 25(W) × 5(H) mm
  • Brass: 1200(L) × 25.4(W) × 4.76(H) mm
  • Aluminium: 1200(L) × 25.4(W) × 6.35(H) mm
  • Aluminium: 1200(L) × 25.4(W) × 3.20(H) mm
  • Aluminium: 1200(L) × 25.4(W) × 4.76(H) mm
  • Aluminium: 1200(L) × 19.0(W) × 6.35(H) mm
• Pier load cell capacity: 500N
• Digital dial gauges × 3: 12.7mm travel, 0.01mm resolution
• Dial gauge connection leads × 3
• Load hangers × 4
