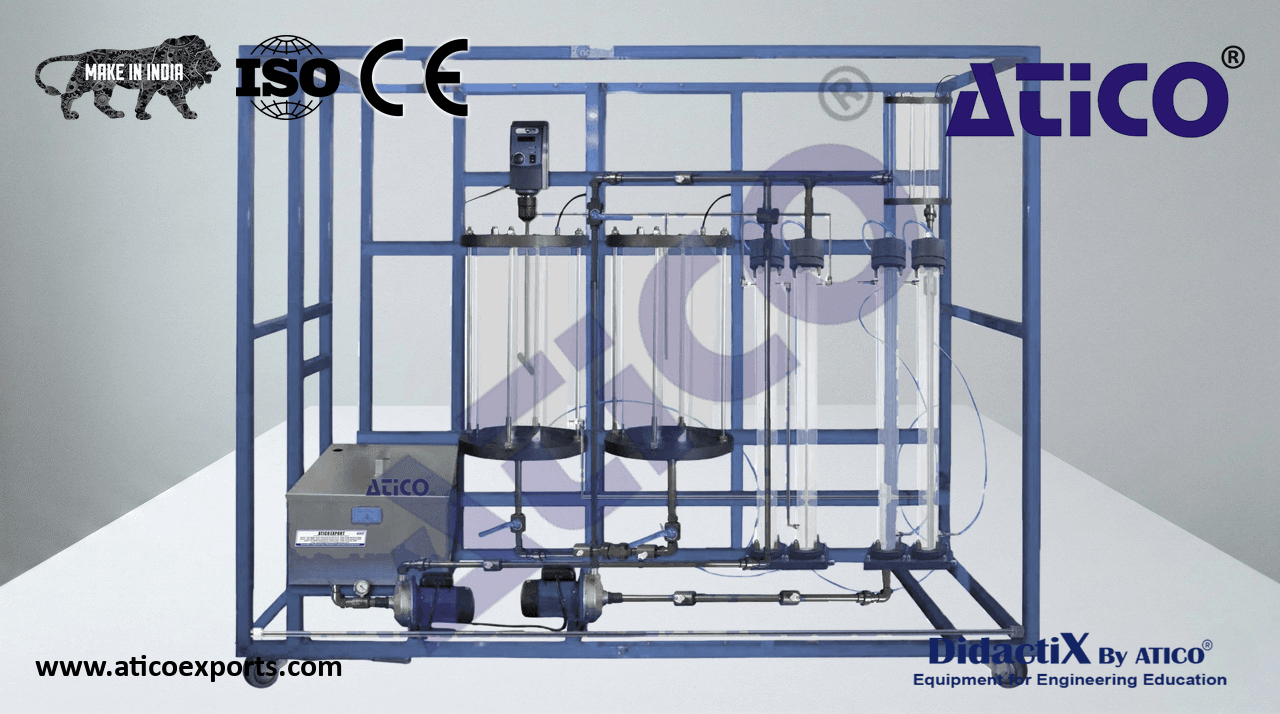

ATENG 10862 — Advanced Crystallization Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
The main elements are transparent to observe the process.
Diagram in the front panel with distribution of the elements similar to the real one.
- Tank for the saturated solution with a capacity of 25 l. It includes:
“J” type temperature sensor.
Variable speed stirrer.
- Tank for the undersaturated solution with a capacity of 25 l. It includes:
“J” type temperature sensor.
- Heating circuit:
- Tank with a capacity of 35 l. It includes:
- Heating element with thermostat, power: 2 kW.
“J” type temperature sensor.
Level switch.
- Pump to impel hot water:
- Maximum flow rate: 8 l/min.
- Maximum head: 10 m.
Two concentric tubes heat exchangers to heat the solution to be saturated.
- Pump to impel the saturated solution:
- Maximum flow rate: 20 l/min.
- Maximum head: 40 m.
Two concentric tubes heat exchangers to cool the saturated solution.
- Removable crystallization cell made of PMMA:
- Approximate diameter: 40 mm.
- Approximate height: 80 mm.
- Flowmeter, range: 0 - 15 l/min.
Flow regulation by valves.
- Electronic console:
Metallic box.
Temperature sensors connectors.
Digital display for the temperature sensors.
Selector for the temperature sensors.
Heating element controller.
Stirrer switch.
Pumps switches.
On/Off switches.
Cables and Accessories, for normal operation.
