Advanced Zeeman Effect Experimental System with Electromagnet

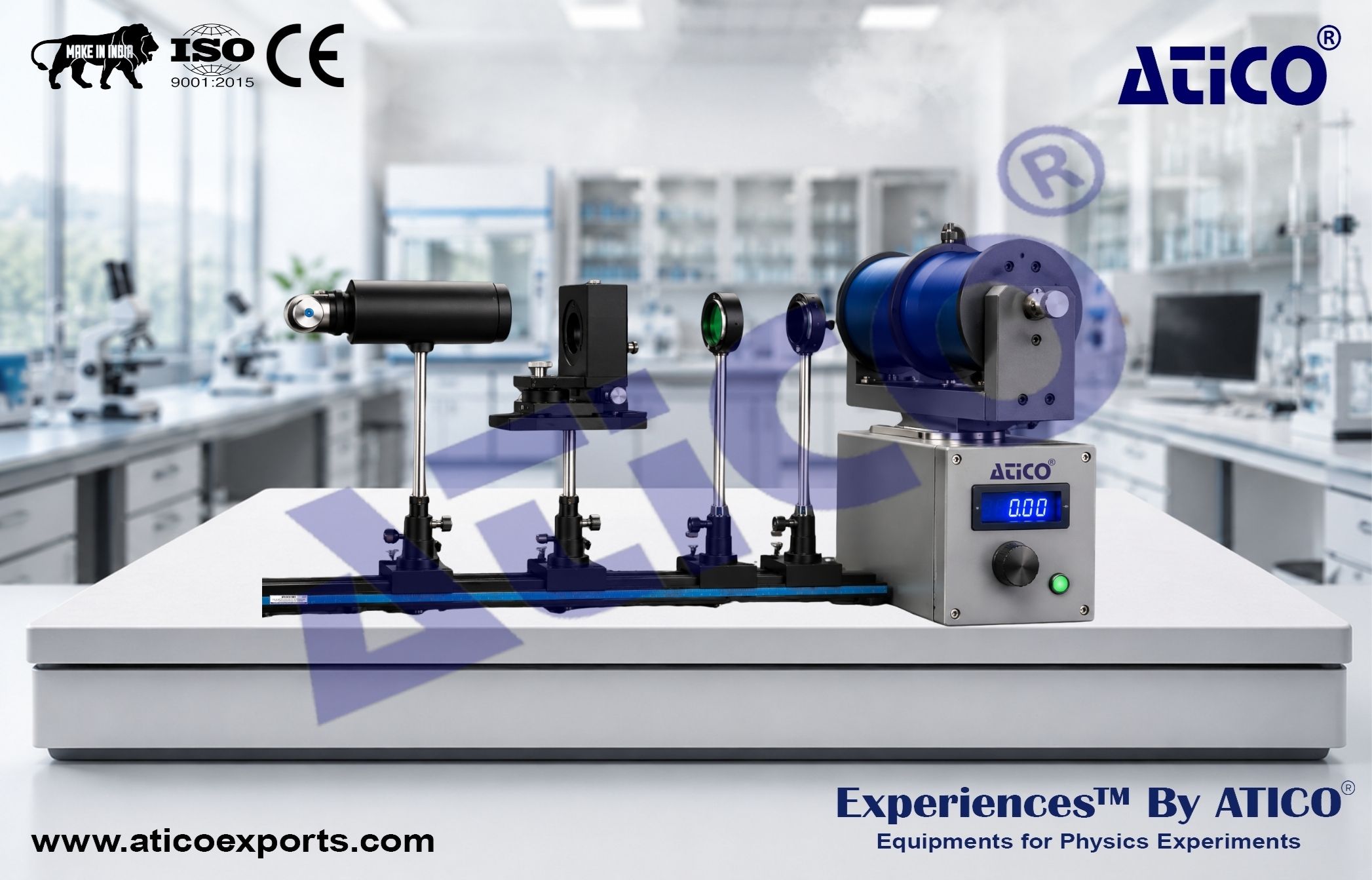

The Advanced Zeeman Effect Experimental System with Electromagnet designed to investigate one of the most significant phenomena in atomic physics—the Zeeman effect. The experiment provides direct evidence of atomic magnetic moments and spatial quantization by observing the splitting of atomic spectral lines under the influence of a magnetic field. The system utilizes a powerful electromagnet capable of producing magnetic fields greater than 1 Tesla, allowing clear observation of the splitting of the Mercury spectral line at 546.1 nm into its characteristic π and σ components. Both transverse and longitudinal Zeeman effects can be observed, enabling detailed study of spectral line polarization and magnetic interactions within atoms. A high-quality Fabry-Perot etalon provides excellent spectral resolution for observing fine spectral structures. The included direct reading microscope allows precise measurement of interference patterns, while an optional CCD camera with analysis software enables digital image acquisition and quantitative evaluation of Zeeman splitting for determination of fundamental physical constants. The wideband Fabry-Perot etalon also permits observation of Zeeman effects at additional Mercury wavelengths, including 577 nm, 436 nm, and 404 nm, when used with optional interference filters. Physics Lab Experiments from Atico Exports.

Experiments:

Observation of Transverse and Longitudinal Zeeman Effects:

• Observe Zeeman splitting of the Mercury spectral line at 546.1 nm
• Compare transverse and longitudinal observation modes
• Study the influence of magnetic field orientation on spectral line behavior

Study of Atomic Magnetic Moments and Spatial Quantization:

• Understand the origin of atomic magnetic moments
• Demonstrate spatial quantization of atomic energy levels
• Explore magnetic interactions in atomic systems

Spectral Line Splitting and Polarization Analysis:

• Observe splitting of Mercury spectral lines into π and σ components
• Analyze polarization characteristics using the polarizer and quarter-wave plate
• Investigate the relationship between magnetic fields and atomic spectra

Determination of Quantum Numbers and Fundamental Constants:

• Measure Zeeman splitting accurately
• Determine the Bohr Magneton from experimental observations
• Calculate Lande’s g-factor and associated quantum numbers

Fabry-Perot Interferometry:

• Learn the operating principle of a Fabry-Perot etalon
• Observe high-resolution interference patterns
• Perform precise spectral measurements using interferometric techniques

Digital Spectral Analysis (Optional):

• Capture interference patterns using the CCD imaging system
• Analyze spectral line splitting with dedicated software
• Improve measurement accuracy and experimental efficiency

• Zeeman Effect Studies
• Atomic Physics Experiments
• Quantum Mechanics Education
• Magneto-Optical Phenomena
• Spectroscopy and Interferometry
• Determination of the Bohr Magneton
• Measurement of Lande’s g-Factor
• Polarization Analysis
• Advanced Physics Laboratory Training

Electromagnet Magnetic Field Strength:

• 1.0 T

Pole Diameter:

• 25 mm

Pole Spacing:

• 10 mm

Pole Aperture Diameter:

• 6 mm

Magnet Rotation Range:

• 90°

Fabry-Perot Etalon Material:

• Quartz

Etalon Diameter:

• 40 mm

Air Gap Spacing:

• 2 mm

Finesse:

• ≥ 50

Flatness:

• < λ/30

Central Wavelength:

• 589.3 nm

Resolution (λ/Δλ):

• 2 × 10⁵

Reflectivity:

• 90%

High Reflection Bandwidth:

• 100 nm

Pencil Mercury Lamp Emitter Diameter:

• 6.5 mm

Mercury Lamp Power:

• 3 W

Interference Filter Central Wavelength:

• 546.1 nm

Filter Transmittance:

• 80%

Polarizer Rotation Range:

• 360°

Quarter-Wave Plate:

• Optimized for 546 nm

Eyepiece Magnification:

• 15×

Measurement Range:

• 8 mm

Measurement Resolution:

• 0.01 mm

Components Included:

Pencil Mercury Lamp:

• Quantity: 1

Electromagnet:

• Quantity: 1

Condensing Lens:

• Quantity: 1

Fabry-Perot Etalon:

• Quantity: 1

Polarizer:

• Quantity: 1

Interference Filter (546 nm):

• Quantity: 1

Reading Microscope:

• Quantity: 1

Imaging Lens:

• Quantity: 1

Combined Power Supply Unit (Mercury Lamp & Electromagnet):

• Quantity: 1

Optical Rail:

• Quantity: 1

Slides:

• Quantity: 4

Quarter-Wave Plate:

• Quantity: 1

Teslameter with AC Adapter:

• Quantity: 1

Optional Accessories:

CCD Camera, USB Interface & Analysis Software:

• Quantity: 1 Set

Interference Filters with Mounts (577 nm & 435 nm):

• Quantity: 1 Set

• Strong Electromagnet with Adjustable Magnetic Field
• Observation of Both Transverse and Longitudinal Zeeman Effects
• High-Resolution Fabry-Perot Spectroscopy
• Accurate Measurement of Fundamental Physical Constants
• Uniform Magnetic Field Distribution
• Optional Digital Imaging and Analysis Capability
• Comprehensive Experimental Content
• Suitable for Undergraduate, Postgraduate, and Research Laboratories
• Observation of Both Transverse and Longitudinal Zeeman Effects
• Adjustable Magnetic Field Generated by Electromagnet
• Large Magnet Pole Diameter for Uniform Interference Patterns
• Wideband Fabry-Perot Etalon for Multiple Mercury Spectral Lines
• High-Precision Magnetic Field Measurement
• Direct Reading Microscope for Accurate Analysis
• Optional CCD Camera with Image Analysis Software
• Suitable for Advanced Physics Laboratories
