Aerodynamic Testing Bench

The Aerodynamic Testing Bench, perform aerodynamic tests both in the field of bodies exposed to flow around and in the field of steady incompressible flow.

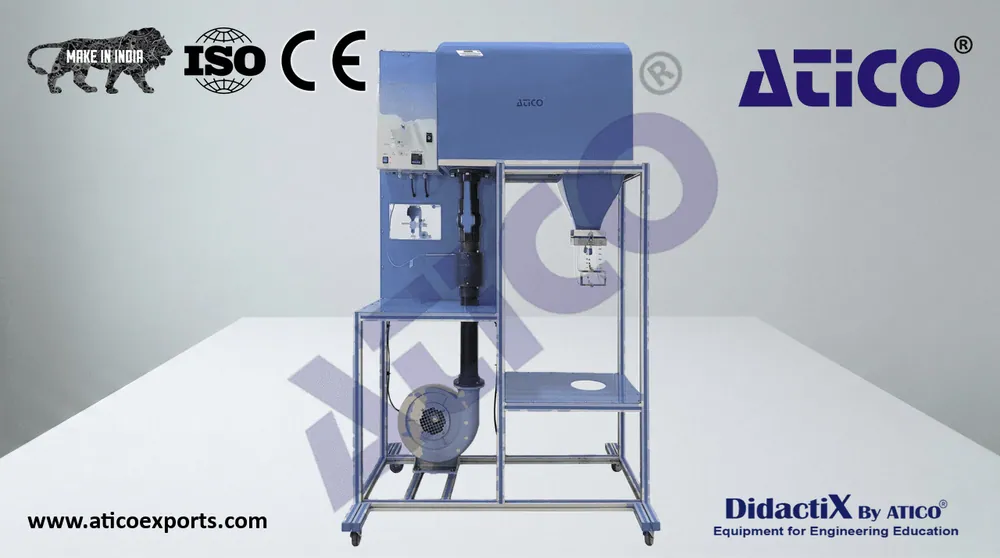

ATENG 11827 — Aerodynamic Testing Bench

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Main metal elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Radial blower with speed control through variable-frequency drive:
• Power consumption: 0.5 kW.
• Maximum flow rate: 17 m³/min.
  Flow rectifier to reduce turbulences and provide a homogeneous flow.
• Nozzle with outlet section of 50 x 100 mm. Maximum speed of the flow at the outlet of the nozzle:
  40 m/s.
  Vertical working section.
  “J” type temperature sensor to measure the air temperature in the inlet pipe.
  Two pressure taps and an orifice plate in the inlet pipe to determine the air flow (speed). ATENG 11827 detail
  Pressure tap at the lower side of the rectifier.
  Air flow regulating valve.
  Cables and accessories, for normal operation.
