ATENG 11816 — Aerodynamic Tunnel, 300X300 mm

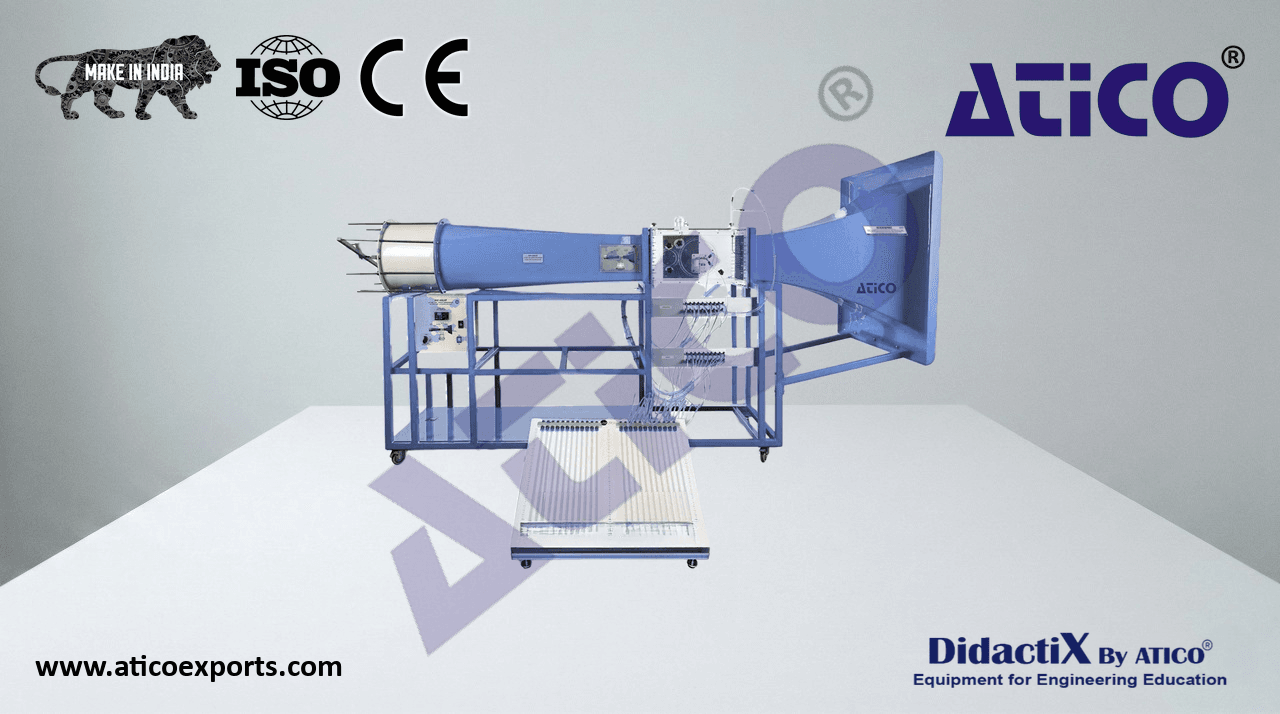

Bench-top wind tunnel in open circuit and with incompressible subsonic flow.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Inlet section with lips, a haven section and a 9.5:1 contraction ratio.
- Transparent working area of 300 x 300 mm and length of 600 mm to assemble and test the different models.
The working area includes a Pitot static tube mounted in the top side.
Outlet section with diffuser that allows to avoid the generation of turbulences, which can generate damages the current quality in the
working area.
- Variable speed axial-flow fan:
- Air velocity in the working area: 0 – 34 m/s.
- Power: 1.5 kW.
An electronic console contains the controller for the axial fan.
Sixty different pressure tappings (along the tunnel and in the models).
Several models and accessories are available, allowing a comprehensive study of subsonic aerodynamics. All these models include several
pressure tappings.
