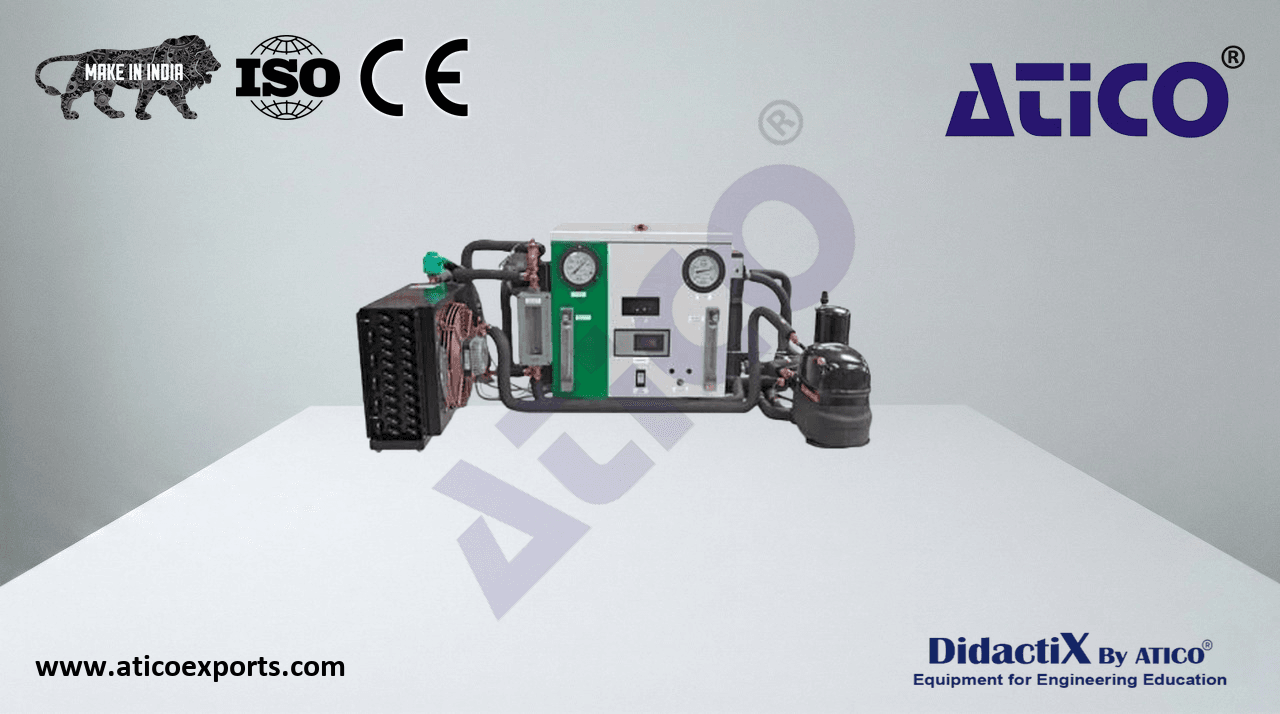

AIR AND WATER HEAT PUMP Deluxe

The vapour compression cycle is the most common form of refrigeration, transferring heat from the area being cooled to a higher temperature region. Heat pumps use this effect to recover heat at a useful temperature for heating or other processes by upgrading low-grade 'free' heat — for example, from ambient air or water.

Construction:

• Panel: High quality aluminium

Controls:

• Operating parameters varied by manual adjustment of evaporator and condenser water control valves
• Air or water source evaporator selectable via panel-mounted switch

Instrumentation:

• Pressure gauges × 2: Evaporating and condensing pressures
• Multi-point digital temperature indicator: 9 type K thermocouples; 0.1K resolution
• Flow meters × 3: For condenser cooling water, evaporator water flow rates, and R134a flow rate
• Digital wattmeter for compressor electrical energy measurement

Safety Features:

• Emergency stop button
• Condenser high pressure switch and compressor thermal overload switch
• Residual current circuit breaker
• Combined double pole main switch and overload cut-out
• All electrical components connected to common earth conductor
