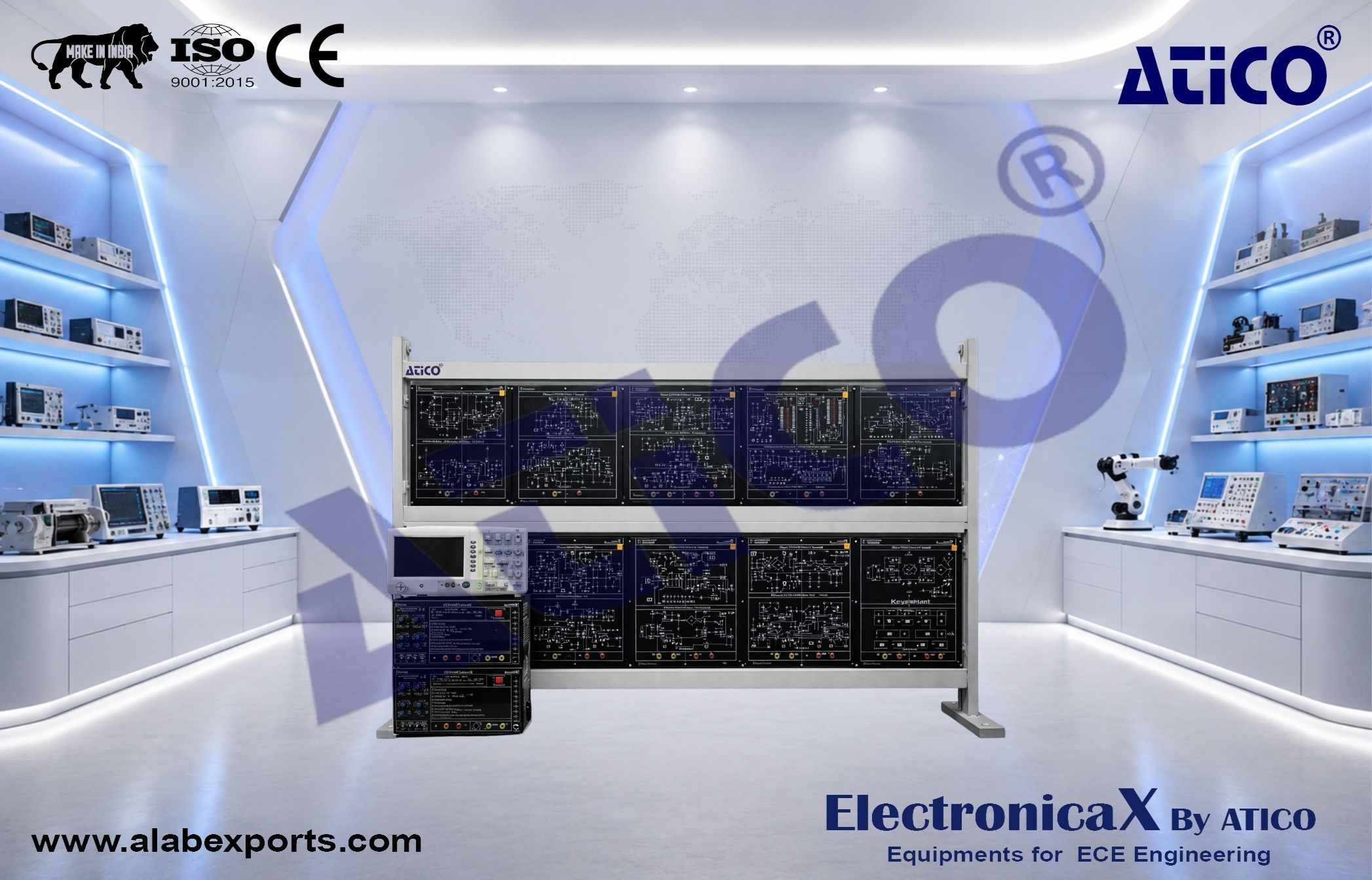

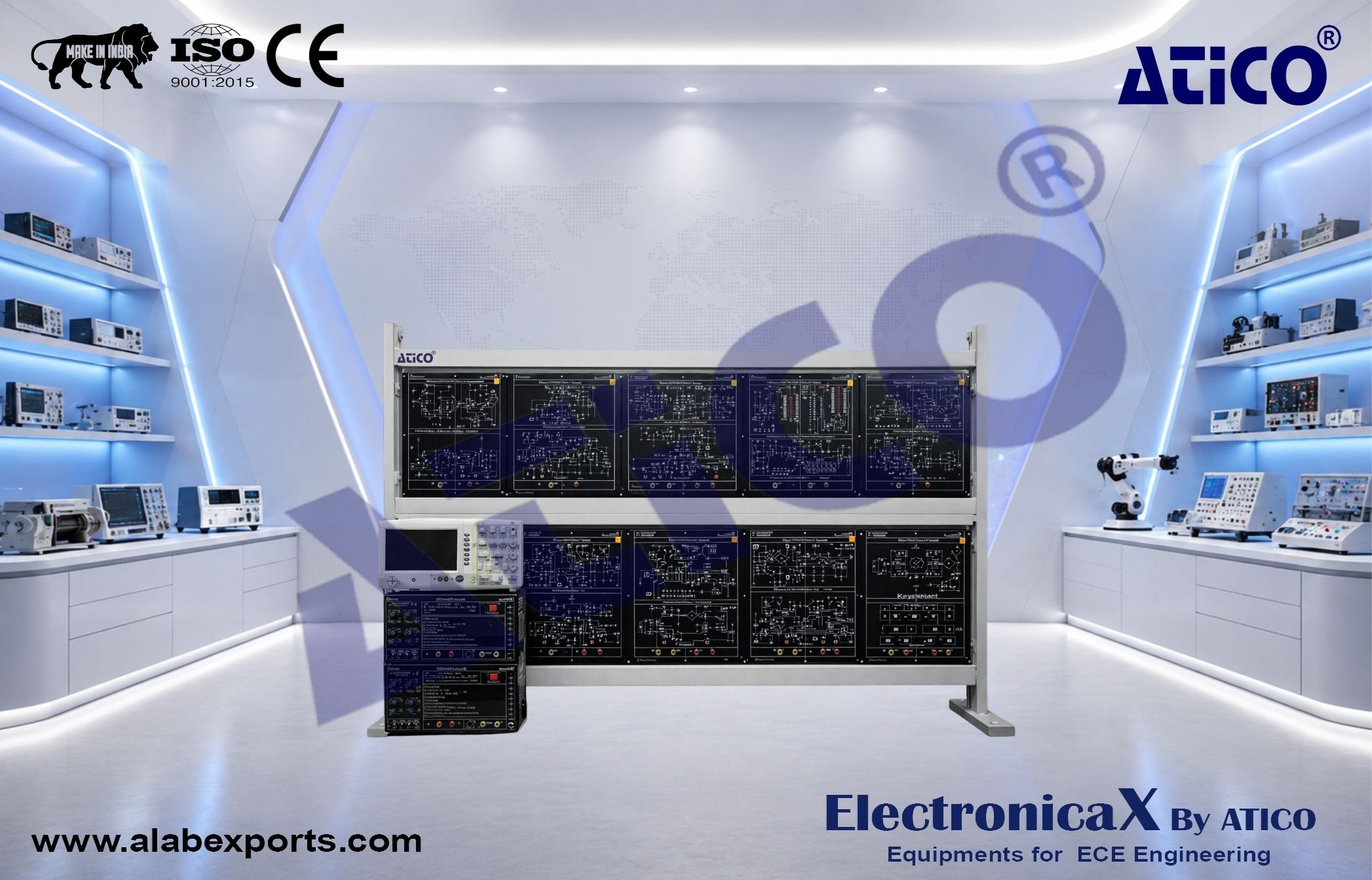

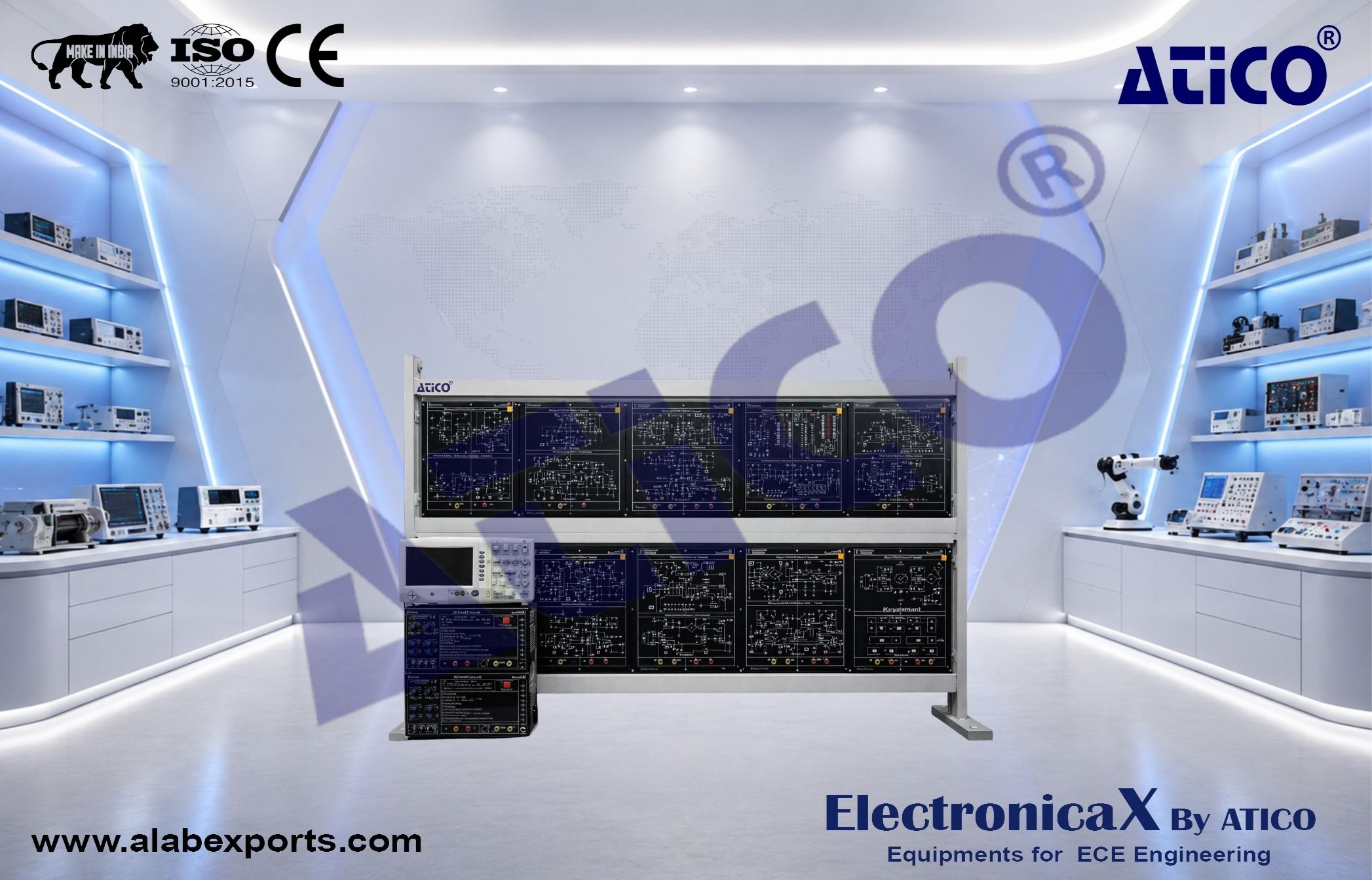

Analog Communication Trainer

The Analog Communication Trainer includes basic and advanced modules to experiment on fundamental and higher level analog and digital topics of a telecommunication course. The purpose of the modules is to enable students to acquire a clear experimental view of basic and advanced concepts and familiarity with laboratory operations.

This trainer combines modules with experimental circuits and offers complete courses of basic and advanced communication in 8 analog experiment modules. With optional power supply and signal unit, oscilloscope or spectrum analyzer, students can perform various experiments independently.

ANALOG COMMUNICATION MODULES

LIST OF EXPERIMENTS

• RF Oscillator Experiment
• Second Order LPF & HPF Experiment
• AM Modulator Experiment
• AM Demodulator Experiment
• DSB-SC and SSB Modulator Experiment
• DSB-SC and SSB Demodulator Experiment
• FM Modulator Experiment
• FM Demodulator Experiment
• TDM Multiplexer Experiment
• TDM Demultiplexer Experiment
• FDM Multiplexer Experiment
• FDM Demultiplexer Experiment
• Analog to Digital Converter Experiment
• Digital to Analog Converter Experiment
• Frequency Converter
• Signal Recovery

ANALOG COMMUNICATION EXPERIMENTS MODULES

01 SECOND ORDER ACTIVE FILTERS & RF OSCILLATORS MODULE

Lab 1 Second Order Active Filters

• Experiment 1 Second Order Active Low-pass Filter (Low-pass -3dB Frequency: 1 kHz ~ 3 kHz)
• Experiment 2 Second Order Active High-pass Filter (High-pass -3dB Frequency: 5 kHz ~ 10 kHz)
• Experiment 3 Second Order Active Band-pass Filter (Center Frequency: 10 kHz ~ 100 kHz, Bandwidth: 6 kHz ~ 60 kHz)
• Experiment 4 Second Order Active Band-stop Filter (Cutoff Frequency: 10 kHz ~ 100 kHz, Bandwidth: 6 kHz ~ 60 kHz)

Lab 2 RF Oscillators

• Experiment 1 Colpitts Oscillator (1 MHz ~ 9 MHz)
• Experiment 2 Hartley Oscillator (500 kHz ~ 1.8 MHz)
• Experiment 3 Crystal Oscillator (500 kHz ~ 1.8 MHz)
• Experiment 4 Voltage Controlled Oscillator (3.5 MHz ~ 4 MHz)

02 AM MODULATOR & DEMODULATOR MODULE

Lab 3 AM Modulator

• Experiment 1 Transistor AM Modulator (Carrier: 1.5 kHz ~ 2 kHz, Audio: 500 Hz ~ 1 kHz)
• Experiment 2 MC1496 AM Modulator (Carrier: 500 kHz ~ 1 MHz, Audio: 500 Hz ~ 1 kHz)

Lab 4 AM Demodulator

• Experiment 1 AM Diode Detector (Carrier: 300 kHz, Audio: 500 Hz ~ 2 kHz)
• Experiment 2 AM Product Detector (Carrier: 500 kHz ~ 1 MHz, Audio: 500 Hz ~ 1 kHz)

03 DSB-SC & SSB MODULATOR / DEMODULATOR MODULE

Lab 5 Modulator

• Experiment 1 DSB-SC Modulator (Carrier: 100 kHz ~ 500 kHz, Audio: 500 Hz ~ 1 kHz)
• Experiment 2 SSB Modulator (Carrier: 200 kHz, Audio: 500 Hz ~ 1 kHz)

Lab 6 Demodulator

• Experiment 1 DSB-SC Product Detector (Carrier: 100 kHz ~ 500 kHz, Audio: 500 Hz ~ 1 kHz)
• Experiment 2 SSB Product Detector (Carrier: 200 kHz, Audio: 500 Hz ~ 1 kHz)

04 FM MODULATOR & DEMODULATOR MODULE

Lab 7 FM Modulator

• Experiment 1 MC4046 FM Modulator (Carrier: 20 kHz, Audio: 1 kHz)
• Experiment 2 LM566 FM Modulator (Carrier: 20 kHz, Audio: 500 Hz ~ 700 Hz)

Lab 8 FM Demodulator

• Experiment 1 MC4046 FM Demodulator (Carrier: 20 kHz, Audio: 1 kHz)
• Experiment 2 LM565 FM Demodulator (Carrier: 20 kHz, Audio: 500 Hz ~ 700 Hz)

05 TDM MULTIPLEXER & DEMULTIPLEXER MODULE

Lab 9 TDM Multiplexer

• Experiment 1 Waveform Generator (Sine: 13 kHz, Triangle: 2.3 kHz, Square: 2.3 kHz)
• Experiment 2 TDM Multiplexer (3 Channels, 500 ms ~ 50 ms)

Lab 10 TDM Demultiplexer

• Experiment 1 TDM Demultiplexer (3 Channels, 500 ms ~ 50 ms)

06 FDM MULTIPLEXER & DEMULTIPLEXER MODULE

Lab 11 FDM Multiplexer

• Experiment 1 FDM Signal Generator (Carrier: 500 kHz ~ 1.5 MHz, Audio: 500 Hz ~ 1.5 kHz)
• Experiment 2 DSB-SC Signal Generator (Carrier: 500 kHz ~ 1.5 MHz, Audio: 500 Hz ~ 1.5 kHz)
• Experiment 3 FDM Multiplexer (DSB-SC, Bandwidth: 2 MHz)

Lab 12 FDM Demultiplexer

• Experiment 1 FDM Demultiplexer (DSB-SC, Product Type)

07 A/D & D/A CONVERTER MODULE

Lab 13 Analog-to-Digital Converter

• Experiment 1 ADC0804 (8-bit, 0–5V)
• Experiment 2 ADC0809 (8-bit, 0–5V)

Lab 14 Digital-to-Analog Converter

• Experiment 1 R-2R DAC (4-bit, 0–5V)

08 FREQUENCY CONVERTER & SIGNAL RECOVERY MODULE

Lab 15 Frequency Converter

• Experiment 1 Frequency Multiplier (10 kHz)
• Experiment 2 Up/Down Converter (LO: 100 kHz, RF: 120 kHz)

Lab 16 Signal Recovery

• Experiment 1 Carrier Recovery Circuit (10 kHz)
• Experiment 2 Clock Recovery Circuit (TTL, Manchester, 5 kHz ~ 10 kHz)

ACCESSORY SETS

2mm STACKABLE TEST LEAD SET (350mm Length)

Assorted in 5 different colors (30 units):

• Red x 6
• Yellow x 6
• Blue x 6
• Black x 6
• Green x 6

4mm STACKABLE TEST LEAD SET (350mm Length)

Assorted in 5 different colors (10 units):

• Red x 2
• Yellow x 2
• Blue x 2
• Black x 2
• Green x 2

EXPERIMENTS FRAME (1450mm Length)

• Epoxy coated steel bended T-slot frame
• DIN Standard A4 with two shelves
• Side frame: T shape

Dimensions:

• Length: 1450mm
• Width: 20mm
• Height: 300mm

UNIVERSAL LAB STATION

DC POWER SUPPLY

Fixed Output:

• +5V/0.5A
• -5V/0.5A
• +12V/0.5A
• -12V/0.5A

Variable Output:

• 0V to +23V/1A
• 0V to -23V/1A

AC POWER SUPPLY

• Fixed Output:
• 19V–15V–9V–0V–9V–15V–19V

FUNCTION GENERATOR

Waveforms:

• Sine
• Triangle
• Square

Frequency Range:

• 1Hz to 1MHz (6 decades)

Frequency Steps:

• 1Hz to 10Hz
• 10Hz to 100Hz
• 100Hz to 1KHz
• 1KHz to 10KHz
• 10KHz to 100KHz
• 100KHz to 1MHz

Outputs:

• Sine: 0 to 12V peak-to-peak

• Triangle: 0 to 8V peak-to-peak

• Square: 0 to 16V peak-to-peak

• Includes fine adjustment, amplitude control, and DC offset

• TTL Mode Output Range: 1Hz to 1MHz

DATA SWITCHES MODULE

• 5 slide switches with output terminals
• Down position: LO level
• Up position: HI level

MULTI INTERFACE ADAPTOR MODULE

• Miniature socket
• 2mm socket
• 4mm banana adaptors

OPTIONAL EQUIPMENT (FOR EXPERIMENT TESTING)

• 3° Digit Digital Multimeter
• 60MHz Digital Storage Oscilloscope
