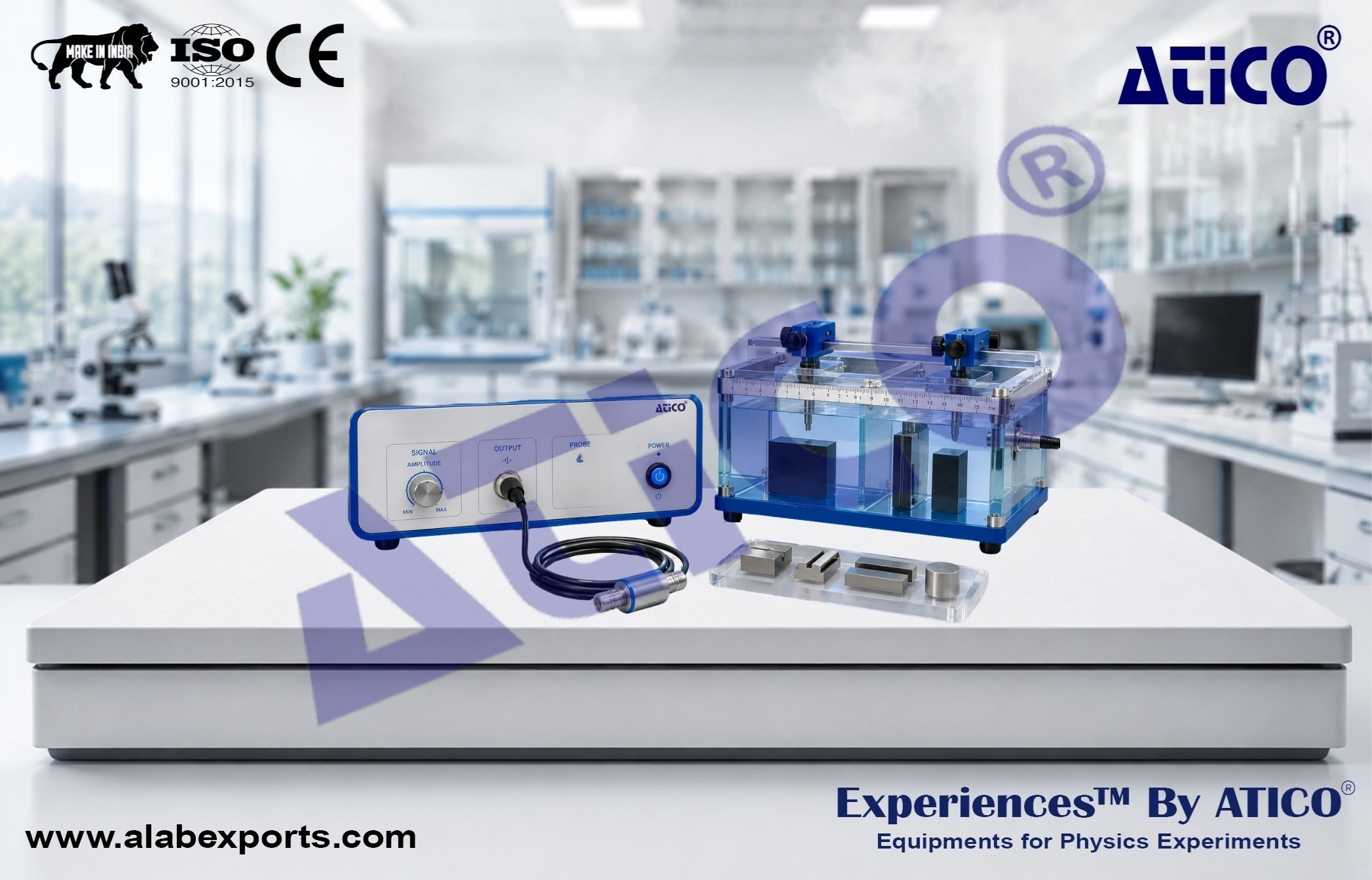

Apparatus of A-Scan Ultrasound & Applications for Advanced Physics Lab

The Apparatus of A-Scan Ultrasound & Applications for Advanced Physics Lab is designed to demonstrate the principles and applications of ultrasonic pulse-echo technology. Ultrasonic waves are widely used in medical diagnostics, industrial inspection, material testing, and nondestructive evaluation. This apparatus enables students to study the generation, propagation, reflection, and detection of ultrasonic waves through practical experiments. Using A-scan pulse-echo techniques, the system allows the measurement of material thickness, sound velocity, and internal defect detection. Students can observe reflected ultrasonic signals and understand how ultrasonic testing is used to identify flaws, inclusions, cracks, and voids inside materials. The apparatus also provides valuable insight into medical ultrasonic diagnostic methods by simulating measurements commonly performed in biological and medical applications. Its reliable performance and user-friendly design make it an excellent teaching instrument for physics, biomedical engineering, and medical technology laboratories. Physics Lab Experiments from Atico Exports.

Experimental Applications:

Measurement of Sound Velocity and Water Layer Thickness:

• Determine the velocity of sound in water
• Measure water layer thickness using ultrasonic pulse-echo techniques

Simulated Measurement of Human Organ Thickness:

• Perform ultrasound-based measurements similar to medical diagnostic procedures
• Study the principles of ultrasonic diagnostics

Resolution Analysis:

• Evaluate the resolution capability of the ultrasonic system
• Understand the influence of resolution on measurement accuracy and defect detection

Thickness Measurement of Solid Materials:

• Measure the thickness of various solid samples
• Investigate ultrasonic wave propagation in different materials

Internal Defect Detection:

• Detect internal flaws such as cracks, voids, and inclusions
• Analyze defects using ultrasonic inspection techniques

Specifications:

Pulse Voltage:

• 450 V

Output Pulse Width:

• < 5 μs

Detection Blind Area:

• < 0.5 cm

Detection Depth:

• < 100 cm in Water

Ultrasonic Transducer Probe:

• Integrated Transmitter/Receiver
• Frequency: 2.5 MHz

Cylindrical Samples:

• Aluminum Alloy
• Crown Glass
• Plastic

Included Test Samples:

Resolution Test Block:

• Included

Defect Detection Sample:

• Included

Parts List:

Main Unit:

• Quantity: 1

Ultrasonic Transducer Probe:

• Quantity: 1

Cylindrical Sample Set:

• Quantity: 1 Set

Resolution Test Block:

• Quantity: 1

Defect Detection Sample:

• Quantity: 1

Power Cord:

• Quantity: 1

Instruction Manual:

• Quantity: 1

• High Performance Experimental System
• Simple, Stable, and Reliable Operation
• Ideal for Bio-Physics and Medical Physics Education
• Suitable for Ultrasonic Testing and Measurement Studies
• Hands-On Learning in Medical and Industrial Ultrasonic Applications
