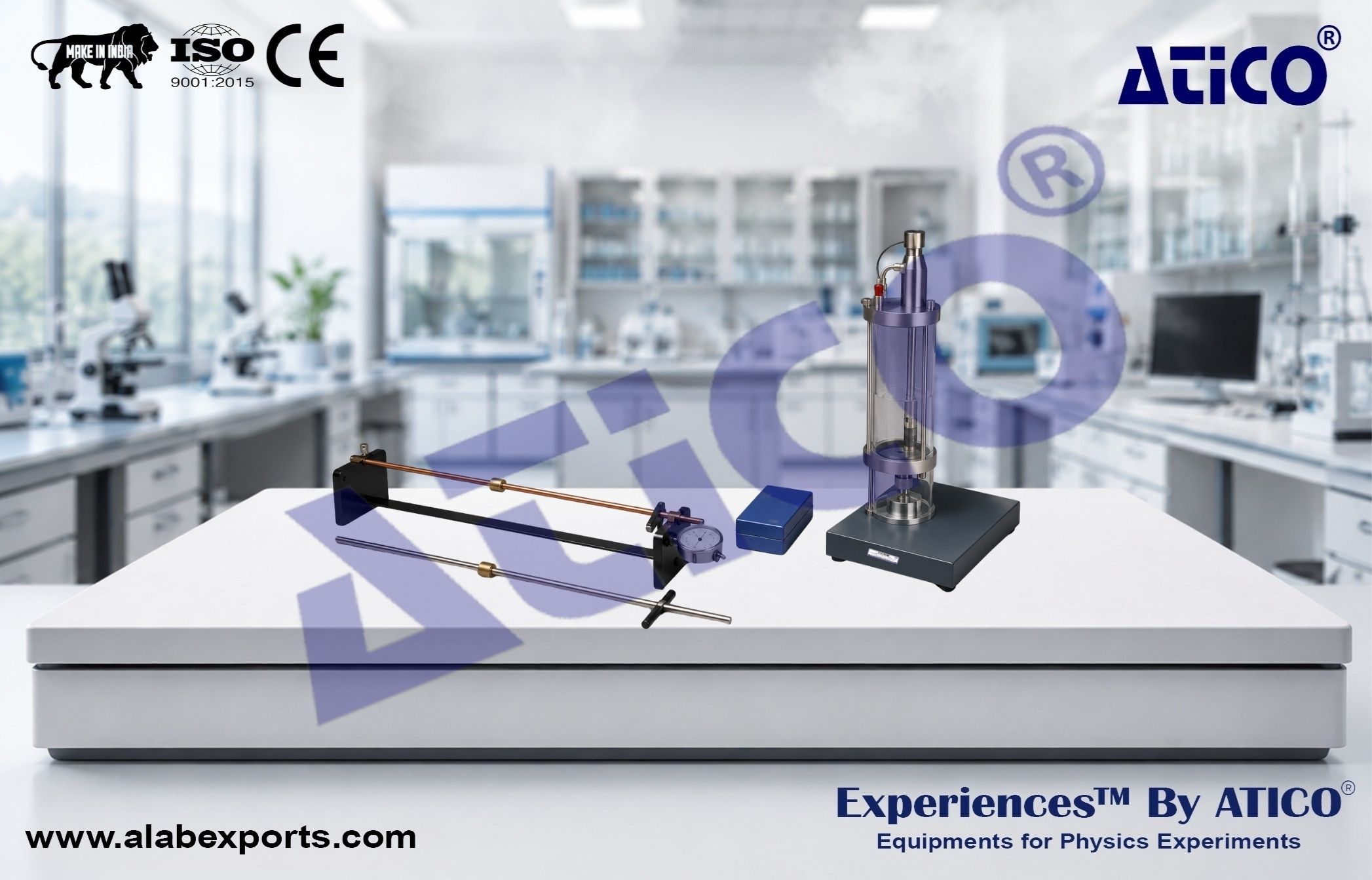

Apparatus of Comprehensive Heat Experiments

Experiments :

• Study of viscosity coefficient measurement using a temperature-controlled circulating water system.

Experiments :

• PID intelligent temperature control system provides stable and uniform heating of the test medium.

Experiments :

• Water circulation temperature control unit features water level indication, low-water audio-visual alarm, and fan-assisted cooling.

Experiments :

• PT100 platinum resistance thermometer enables accurate real-time temperature measurement of the test medium.

Temperature Range :

• Ambient temperature to 80°C with PID control, resolution 0.1°C.

Viscosity Coefficient Measurement Range :

• 0.1–50 Pa·s.

Glass Tube :

• Inner tube diameter Ø30 mm, outer cylinder diameter Ø50 mm, total height 42 cm.

Steel Ball Diameter Options :

• Ø1 mm, Ø1.5 mm, and Ø2 mm.

Test Medium :

• Copper tube, stainless steel tube, and similar materials; sample length 70 cm.

Micrometer :

• Resolution 0.001 mm, measuring range 0–1 mm.

Maximum Power Consumption :

• 650 W.

Designed For :

• Physics Lab Experiments from Atico Exports.
