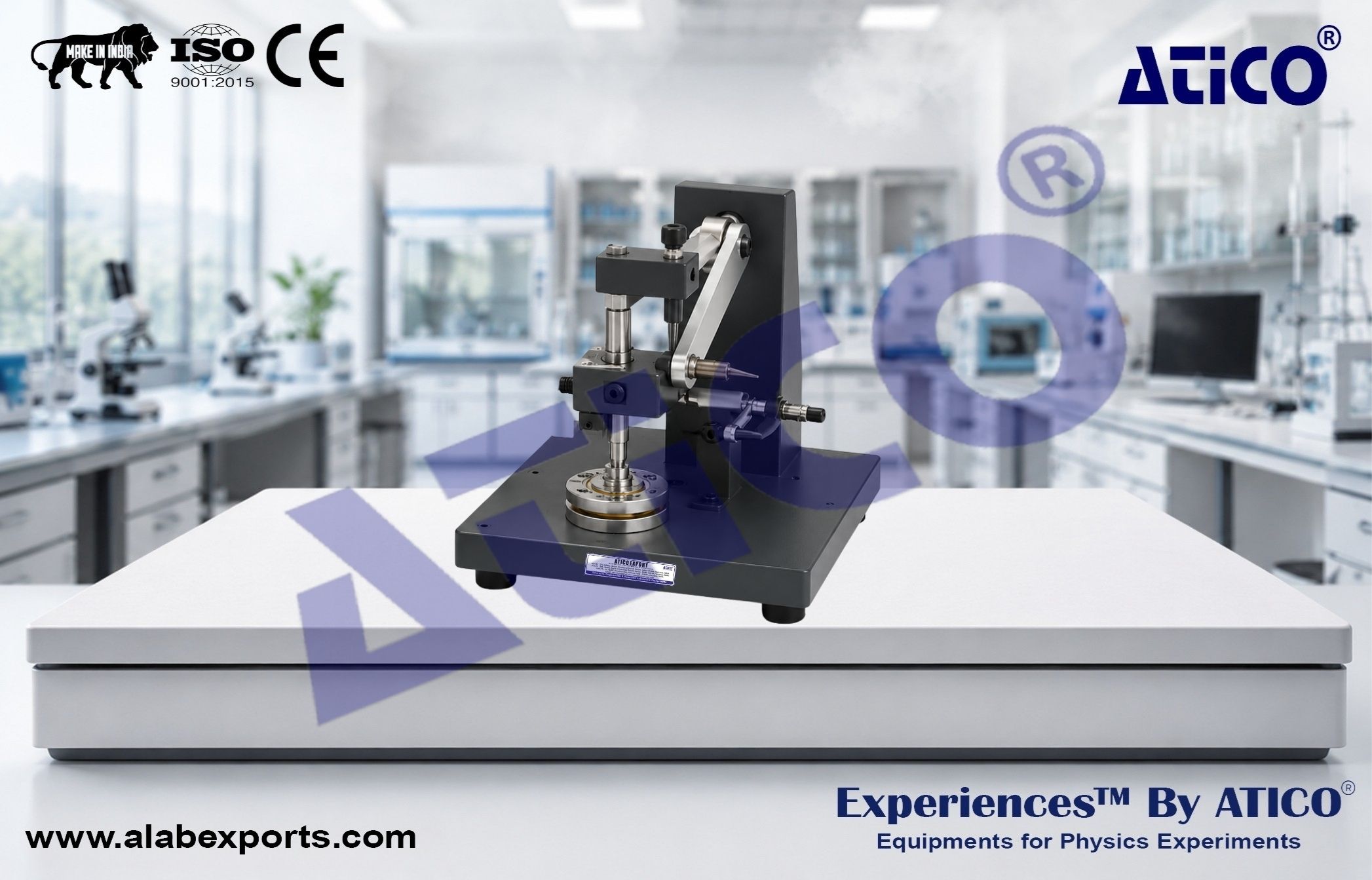

Apparatus of Forced Vibration and Resonance Lab Experiments

This apparatus is designed for studying resonance phenomena in a tuning fork vibration system. It enables the investigation of resonance curves, damping effects, frequency variations due to mass changes, and the measurement of unknown masses through resonance analysis. Manufactured by Atico Export India.
Experiments:

1. Resonance Curve and Q-Factor Measurement

• Study resonance characteristics of a tuning fork under periodic driving forces
• Plot resonance amplitude versus frequency curves
• Determine the resonance frequency and quality factor (Q)
• Investigate energy storage and dissipation in resonant systems

2. Frequency-Mass Relationship Investigation

• Study the relationship between vibration frequency and tuning fork arm mass
• Analyze frequency shifts caused by attached masses
• Measure unknown masses using resonance-based methods
• Verify theoretical relationships between mass and resonant frequency

3. Damping Effect Study

• Investigate the influence of damping on tuning fork vibrations
• Observe changes in resonance amplitude and bandwidth
• Examine the effect of adjustable magnetic damping on system response

• Resonance Studies
• Quality Factor (Q) Measurements
• Mechanical Vibration Analysis
• Frequency Response Experiments
• Damping Investigations
• Mass Determination by Resonance Method
• Acoustics and Oscillation Education
• Undergraduate Physics Laboratory Training

Steel Tuning Fork

• Nominal Vibration Frequency: Approximately 260 Hz

Digital DDS Signal Generator

• Frequency Range: 100 Hz to 600 Hz
• Minimum Step Size: 1 mHz
• Resolution: 1 mHz
• Frequency Accuracy: ±20 ppm
• Stability: ±2 ppm/hour
• Output Power: 2 W
• Output Amplitude: 0 to 10 Vpp, Continuously Adjustable

AC Digital Voltmeter

• Measuring Range: 0 to 1.999 V
• Resolution: 1 mV

Solenoid Coil Assembly

• Includes Coil, Core, and Connection Cable
• DC Impedance: Approximately 90 Ω
• Maximum Allowable AC Voltage: RMS 6 V

Mass Blocks Included

• 5 g × 1
• 10 g × 2
• 15 g × 1

Magnetic Damping Block

• Adjustable Along the Z-Axis

Oscilloscope

• User Supplied

• High-Stability DDS Signal Source
• Fine Frequency Resolution of 1 mHz
• Adjustable Magnetic Damping System
• Supports Quantitative Resonance Curve Analysis
• Suitable for Q-Factor Determination
• Enables Resonance-Based Mass Measurements
• Simple, Accurate, and Reliable Experimental Operation
