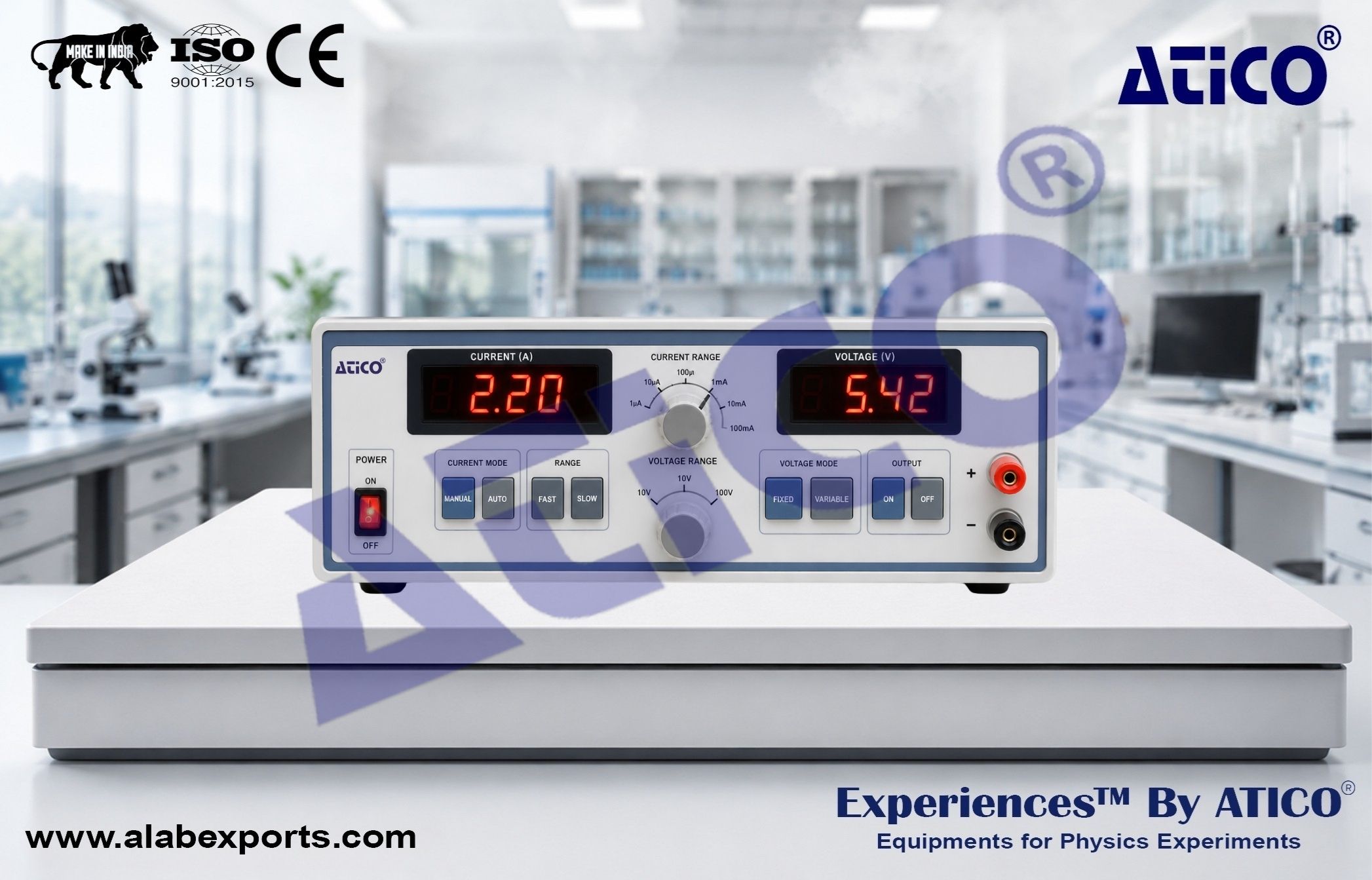

Apparatus of Franck-Hertz Experiment Complete Model for Advanced Physics Lab

The Apparatus of Franck-Hertz Experiment Complete Model for Advanced Physics Lab is an advanced educational system designed to demonstrate one of the most important experiments in modern physics. The Franck-Hertz experiment provides direct evidence for the existence of discrete atomic energy levels, confirming Bohr’s atomic model and laying the foundation for quantum mechanics. In this experiment, electrons emitted from a heated cathode are accelerated through a controlled electric field and collide with Argon atoms contained within a gas-filled tube. When the electrons acquire sufficient kinetic energy, they undergo inelastic collisions with Argon atoms, transferring a fixed amount of energy and exciting the atoms to higher energy states. The resulting changes in collector current reveal the quantized nature of atomic energy levels. Compared with basic Franck-Hertz systems, this complete model incorporates a built-in data acquisition (DAQ) card that allows direct connection to a computer through a USB interface. Experimental results can be recorded manually, displayed on an oscilloscope, or analyzed using dedicated software, providing students with a modern and efficient experimental experience. The apparatus combines compact construction, reliable performance, and advanced data processing capabilities, making it an excellent teaching tool for undergraduate and advanced physics laboratories. Physics Lab Experiments from Atico Exports.

Experiments:

Measurement of Plate Current versus Accelerating Voltage:

• Observe the characteristic relationship between plate current and accelerating voltage
• Record and analyze the Franck-Hertz current-voltage curve
• Identify periodic current maxima and minima corresponding to atomic excitation

Study of Electron-Atom Collisions:

• Investigate inelastic collisions between electrons and Argon atoms
• Observe energy transfer during atomic excitation processes
• Understand the physical mechanism behind electron energy loss

Determination of the First Excitation Potential of Argon:

• Measure the voltage interval between successive current peaks
• Calculate the first excitation potential of Argon atoms
• Verify experimentally the existence of discrete atomic energy levels

Verification of Bohr’s Atomic Theory:

• Demonstrate quantized energy states in atoms
• Provide experimental evidence supporting Bohr’s atomic model
• Relate observed results to modern quantum theory

Determination of Planck’s Constant:

• Use the measured excitation potential of Argon
• Establish the relationship between atomic excitation energy and quantum theory
• Calculate Planck’s constant from experimental data

Computer-Based Data Acquisition and Analysis:

• Acquire experimental data directly through USB connection
• Display and analyze real-time Franck-Hertz curves
• Improve measurement accuracy and data processing efficiency

• Franck-Hertz Experiment
• Verification of Bohr Atomic Theory
• Quantum Mechanics Education
• Atomic Energy Level Studies
• Electron-Atom Collision Experiments
• Excitation Potential Measurements
• Determination of Planck’s Constant
• Modern Physics Laboratory Training

Number of Observable Curve Peaks:

• ≥ 5

Franck-Hertz Tube:

• Argon Gas Filled

Filament Voltage (VF):

• 1 ~ 5 VDC
• Continuously Adjustable

Filament Voltage Display:

• 3½-Digit Digital Display

Accelerating Voltage (VG2K):

• 0 ~ 90 VDC
• Continuously Adjustable

Accelerating Voltage Display:

• 3½-Digit Digital Display

Microcurrent Measurement Range:

• 0.1 nA ~ 10 μA

Data Acquisition Interface:

• USB

Data Processing:

• Dedicated Software Included

Components Included:

Main Unit:

• Including Franck-Hertz Tube, Scanning Voltage Source & Current Amplifier
• Quantity: 1 Set

BNC Cable:

• Quantity: 2

USB Cable:

• Quantity: 1

Software CD:

• Quantity: 1

Power Cord:

• Quantity: 1

Instructional Manual:

• Quantity: 1

• Built-In USB Data Acquisition System
• No External DAQ Hardware Required
• No Preheating Required for Argon Tube
• Multiple Methods of Data Collection and Analysis
• Real-Time Computer-Based Experiment Monitoring
• Clear Observation of Characteristic Franck-Hertz Peaks
• Stable and Reliable Experimental Results
• Ideal for Undergraduate and Advanced Physics Laboratories
• No Preheating Required for Argon Gas Tube
• Multiple Operation Modes: Manual Recording, Oscilloscope Viewing, or Computer-Based Data Analysis
• Built-In Data Acquisition System with USB Interface
• Compact, Stable, and Reliable Design
• Real-Time Data Processing and Visualization
• Ideal for Demonstrating Atomic Energy Quantization
• Suitable for College and University Physics Laboratories
