Apparatus of Ramsaue Townsend Effect for Advanced Physics Lab

The Apparatus of Ramsaue Townsend Effect for Advanced Physics Lab is an important phenomenon in modern physics that demonstrates the relationship between the scattering cross section of electrons and their velocity. At higher electron energies, the scattering cross section of gas atoms increases as electron energy decreases. However, below a certain energy level, the scattering cross section drops significantly, a behavior that cannot be explained by classical physics and is successfully interpreted through quantum mechanics.

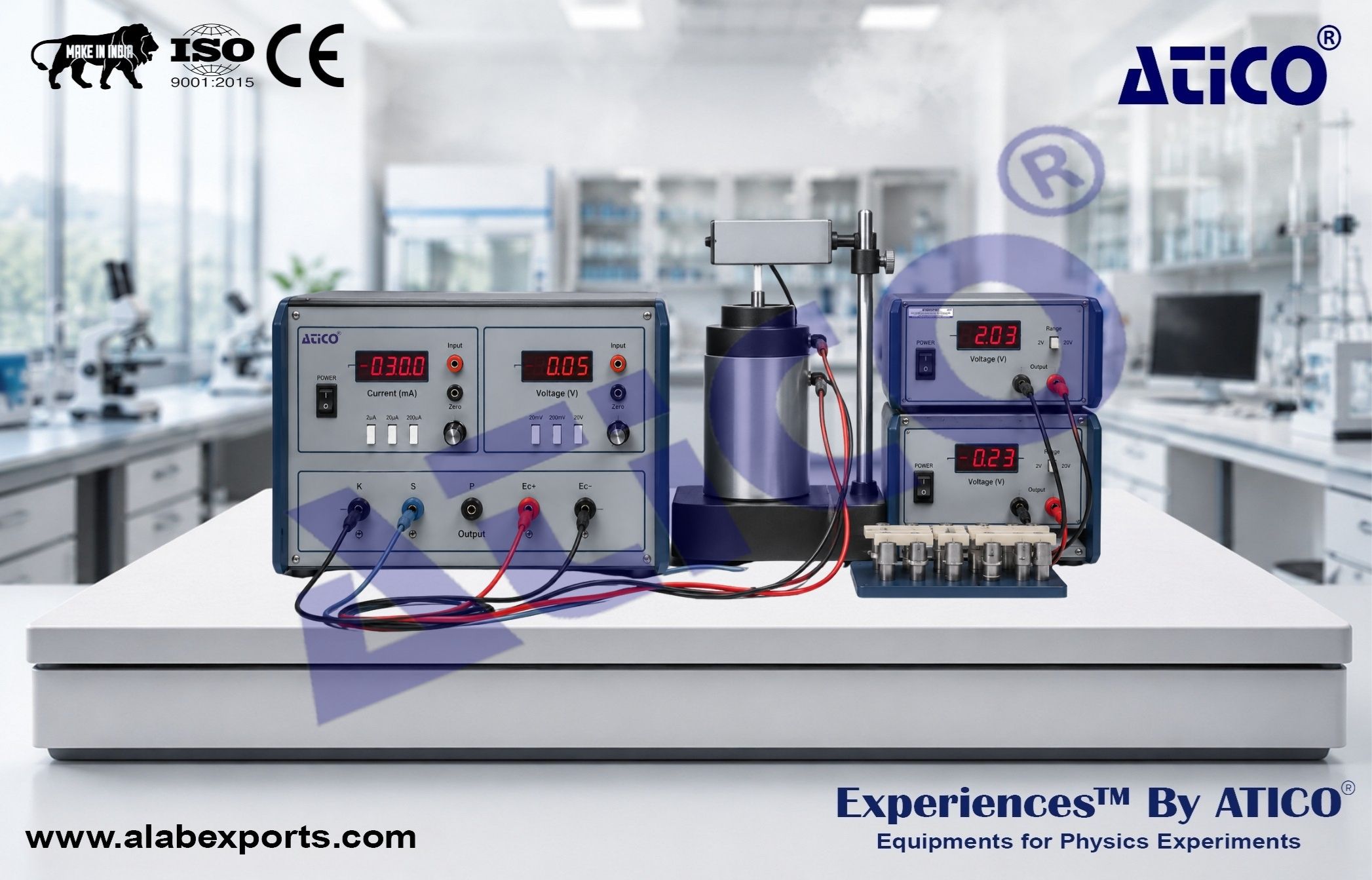

The Ramsauer-Townsend Effect Apparatus is designed to measure the relationships between scattering probability, electron speed, and electron energy. It enables detailed investigation of electron scattering phenomena and provides valuable practical experience in quantum mechanics and atomic physics.

The apparatus is well suited for physics laboratories in colleges and universities, offering students the opportunity to explore fundamental concepts of electron-atom interactions through hands-on experimentation.

Manufactured by Atico Export India.

Experimental Objectives:

Study Electron-Atom Collision Mechanisms:

• Understand how electrons interact with gas atoms
• Study the influence of electron velocity on scattering cross section

Measure Scattering Probability Versus Electron Speed:

• Investigate variations in scattering probability of low-energy electrons
• Analyze the relationship between electron velocity and scattering behavior

Calculate the Effective Elastic Scattering Cross Section:

• Analyze experimental data to determine the effective elastic scattering cross section
• Understand atomic-level collision behavior

Determine the Electron Energy Corresponding to Minimum Scattering Probability:

• Identify the electron energy at which scattering probability reaches a minimum
• Calculate the corresponding energy value from experimental measurements

Verify the Ramsauer-Townsend Effect:

• Demonstrate the Ramsauer-Townsend Effect experimentally
• Understand the underlying quantum mechanical principles

Filament Voltage:

• 0 – 5 V
• Adjustable

Accelerating Voltage:

• 0 – 15 V
• Adjustable

Compensating Voltage:

• 0 – 5 V
• Adjustable

Transmissive Current Meter:

• 3 Ranges: 2 μA, 20 μA, 200 μA
• 3½ Digits Display

Scattering Current Meter:

• 4 Ranges: 20 μA, 200 μA, 2 mA, 20 mA
• 3½ Digits Display

Electron Collision Tube:

• Xenon (Xe) Gas Filled

AC Oscilloscope Observation:

• Effective Acceleration Voltage: 0 – 10 V
• Adjustable

Parts List:

Power Supply:

• Quantity: 1

Measurement Unit:

• Quantity: 1

Electron Collision Tubes:

• Quantity: 2

Base and Stand:

• Quantity: 1

Vacuum Flask:

• Quantity: 1

Cables:

• Quantity: 14

Instruction Manual:

• Quantity: 1

• Easy-to-Use and Compact Design
• Comprehensive Experimental Applications
• Stable and Reliable Performance
