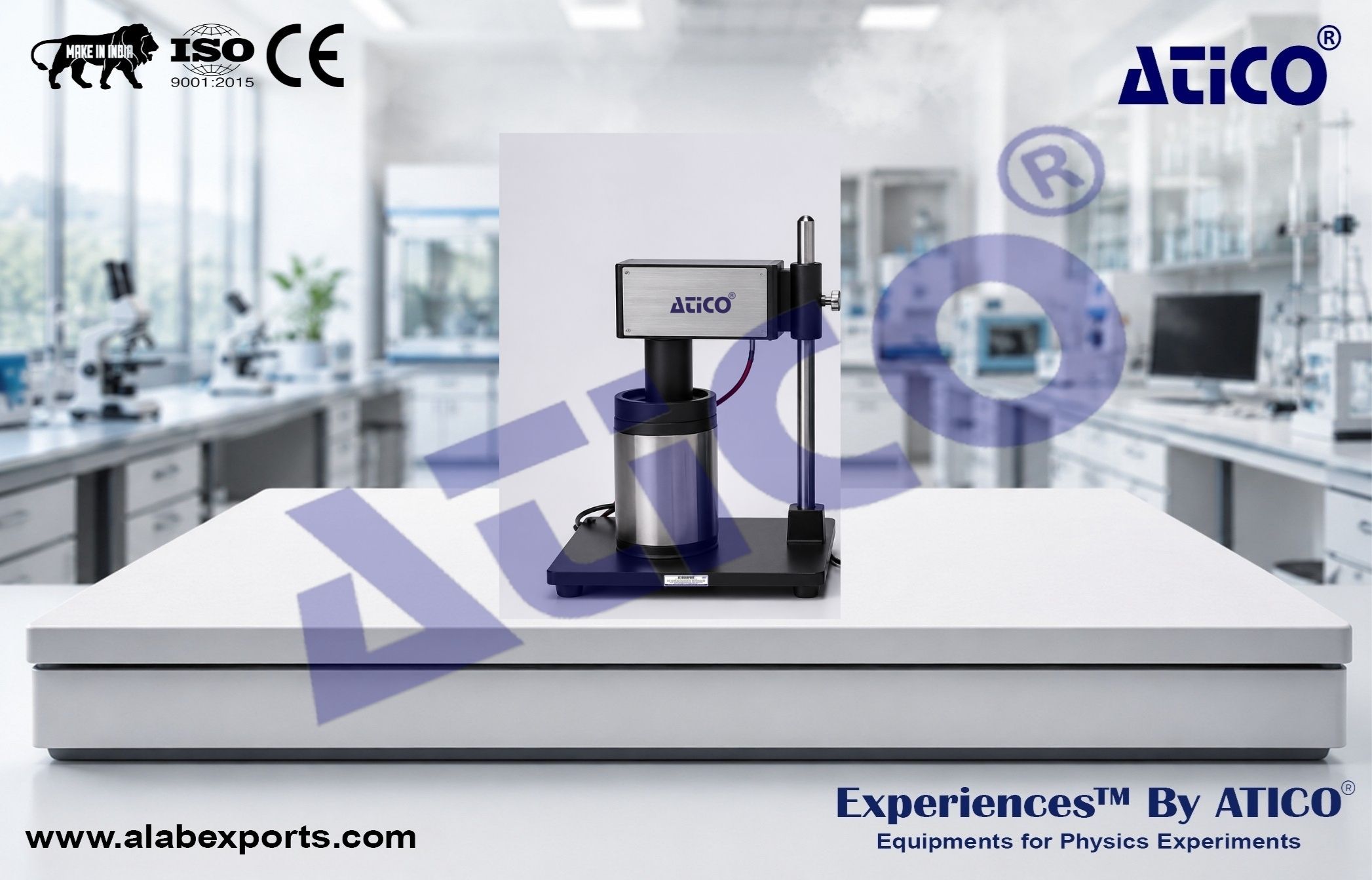

Apparatus of Ramsauer Townsend Effect

This Ramsauer-Townsend effect experiment system is designed to investigate the scattering behavior of low-energy electrons in noble gases and demonstrate the quantum mechanical nature of electron-atom interactions. It enables students to measure electron scattering probability, determine the elastic scattering cross section of gas atoms, and verify the Ramsauer-Townsend effect through both DC and AC measurement methods. The system provides stable experimental performance and supports oscilloscope observation of characteristic curves. Note: Liquid nitrogen and oscilloscope are not included. Manufactured by Atico Export India.

Experiments :

• Study the Collision Mechanism Between Electrons and Gas Atoms and Learn to Measure the Atomic Scattering Cross Section.
• Measure the Relationship Between Scattering Probability and the Velocity of Low-Energy Electrons.
• Calculate the Effective Elastic Scattering Cross Section of Gas Atoms.
• Determine the Electron Energy Corresponding to the Minimum Scattering Probability or Minimum Scattering Cross Section.
• Verify the Ramsauer-Townsend Effect and Interpret the Results Using Quantum Mechanics.

Filament Voltage :

• 0–5 V
• Continuously adjustable

Accelerating Voltage :

• 0–15 V
• Continuously adjustable

Compensating Voltage :

• 0–5 V
• Continuously adjustable

Transmissive Current :

• 2 μA
• 20 μA
• 200 μA ranges
• 3½-digit display

Scattering Current :

• 20 μA
• 200 μA
• 2 mA
• 20 mA ranges
• 3½-digit display

Electron Collision Tube :

• Xenon (Xe) gas

AC Oscilloscope Observation :

• Effective acceleration voltage: 0–10 V
• Continuously adjustable

Standard Accessories :

• Power Supply – 1
• Measurement Unit – 1
• Electron Collision Tube – 2
• Base and Stand – 1
• Vacuum Flask – 1
• Connection Cables – 14
• Instruction Manual – 1
