Apparatus of Shear Modulus and Rotational Moment of Inertia for Mechanics Physics Lab

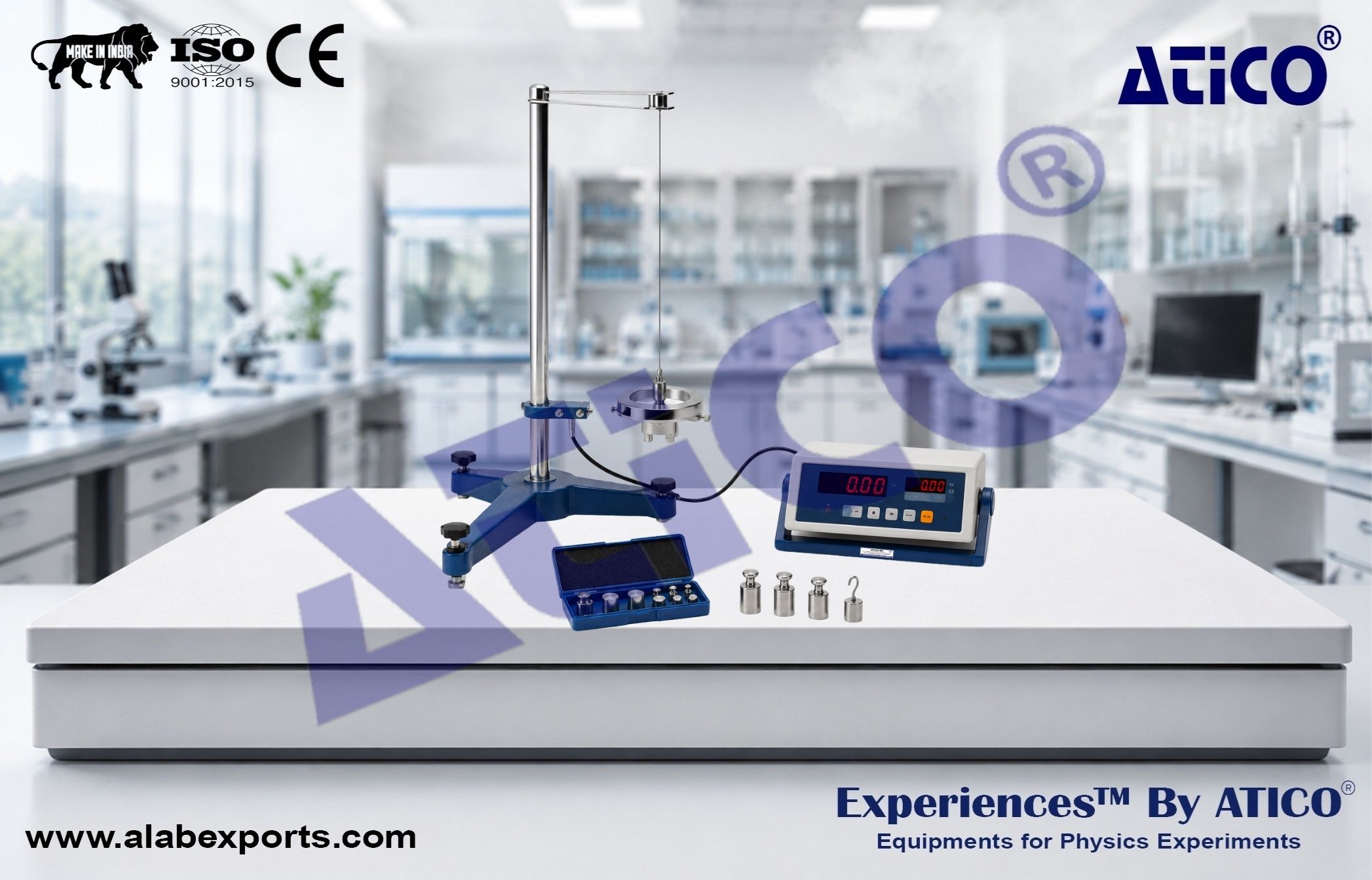

This Apparatus of Shear Modulus and Rotational Moment of Inertia for Mechanics Physics Lab is designed for studying the mechanical properties of materials and the principles of rotational dynamics. The apparatus enables accurate measurement of shear modulus and determination of the rotational moment of inertia using the torsional pendulum method. A specially designed hanging claw replaces conventional disk plates, allowing different rigid bodies to be mounted in either horizontal or vertical orientations for comprehensive rotational studies. The integrated Hall sensor and electronic timing system provide precise and repeatable measurements of torsional oscillation periods.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Measure and Calculate the Shear Modulus of Different Materials
• Determine the Rotational Moment of Inertia of Rigid Bodies
• Verify the Perpendicular Axis Theorem
• Verify the Parallel Axis Theorem
• Study the Effect of Mass Distribution on Rotational Motion
• Investigate the Influence of Axis Orientation on Rotational Dynamics

Educational Objectives

• Understand the Concept of Shear Modulus and Torsional Oscillations
• Learn Methods for Determining Rotational Moment of Inertia
• Analyze the Relationship Between Mass Distribution and Rotational Behavior
• Explore Fundamental Principles of Rotational Mechanics

Digital Timing Device :

• Maximum Counting Number: 80
• Timing Range: 0–255.99 s
• Resolution: 0.01 s

Hanging Claw :

• Length: 110 mm
• Width: 16 mm
• Supports Vertical or Horizontal Mounting

Hall Sensor :

• DC 5 V

Support :

• Triangular Base with Support Rod and Clamp

Rigid Ring :

• Inner Diameter: 80 mm
• Outer Diameter: 110 mm

Rigid Square Bar :

• Length: 120 mm
• Mass: Approx. 312 g

Rigid Column Bar :

• Length: 120 mm
• Mass: Approx. 187 g

Standard Supply

• Digital Timing Device × 1
• Hanging Claw × 1
• Hall Sensor × 1
• Support Assembly × 1
• Rigid Ring × 1
• Rigid Square Bar × 1
• Rigid Column Bar × 1
• Small Steel Balls × 2
• Magnetic Steel Piece × 1
• Steel and Copper Strings × 10

• Hall Sensor and Electronic Timer
• Specially Designed Metal Claw Replacing Conventional Disk Plates
• High Measurement Accuracy
• Economical and Easy to Operate
