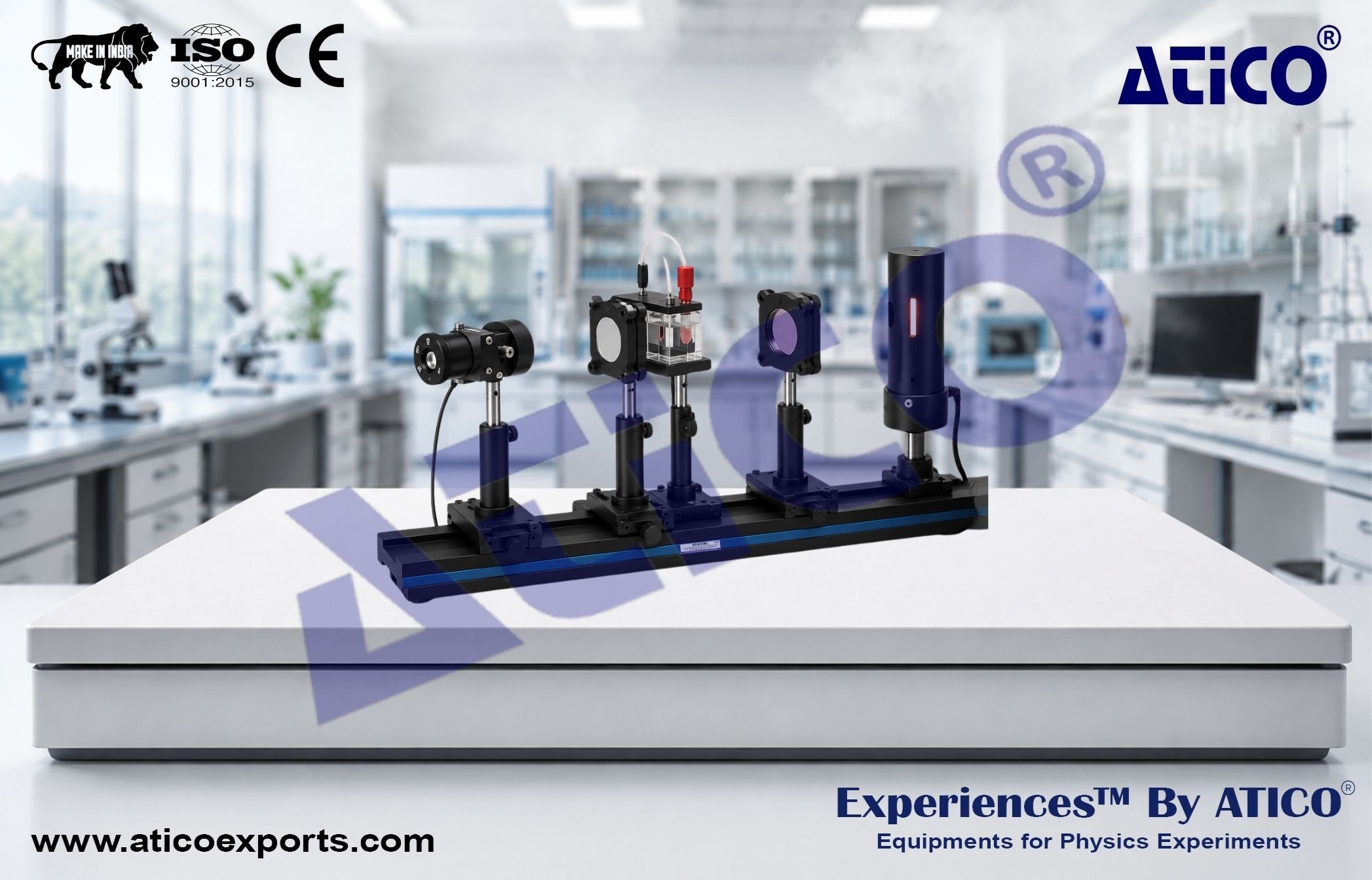

Apparatus of Ultrasonic Grating for Lasers and Photonics Physics Lab

The Apparatus of Ultrasonic Grating for Lasers and Photonics Physics Lab is designed to demonstrate the acousto-optic effect, where ultrasonic waves create periodic variations in the refractive index of a medium, forming an ultrasonic grating. When light passes through this modulated medium, diffraction occurs, producing patterns that can be analyzed to study the interaction between sound and light.This apparatus provides a practical method for measuring the speed of sound in a liquid medium through optical diffraction techniques. The system enables students to investigate fundamental principles of acousto-optics while developing essential laboratory skills in optical alignment, measurement, and data analysis.
All components are mounted on a precision optical rail, allowing convenient setup and accurate alignment. The apparatus is suitable for undergraduate and advanced physics laboratories, offering reliable results and valuable insight into modern optical technologies.

• Physics Lab Experiments from Atico Exports.

Experiments :

Study of the Acousto-Optic Effect :

• Observe how ultrasonic waves produce periodic refractive index variations that act as a diffraction grating.

Measurement of Sound Velocity :

• Determine the speed of sound in a liquid medium by analyzing the diffraction pattern generated by the ultrasonic grating.

Optical Alignment Techniques :

• Develop practical skills in aligning optical components and establishing accurate optical paths.

Ultrasonic Signal Source :

• Resonance Frequency Approx. 10.000 MHz

Frequency Resolution :

• 0.001 MHz

Slit Width :

• 0.04 mm

Slit Length :

• 6 mm

Lens Focal Length :

• 157 mm

Lens Effective Aperture :

• 28 mm

Ultrasonic Cell Dimensions :

• 80 × 40 × 59 mm

Microscope Eyepiece Measurement Range :

• 0–6 mm

Microscope Eyepiece Resolution :

• 0.01 mm

Optical Rail Length :

• 650 mm

Optical Rail Scale Resolution :

• 1 mm

Main Electronic Unit :

• Quantity: 1

Low-Pressure Sodium Lamp :

• Quantity: 1

Optical Rail :

• Quantity: 1

Slides :

• Quantity: 5

Narrow Slit :

• Quantity: 1

Lenses :

• Quantity: 2

Measurement Eyepiece with Mount :

• Quantity: 1

Ultrasonic Cell :

• Quantity: 1

Ultrasonic Cell Support :

• Quantity: 1

Connection Cables :

• Quantity: 2

Power Cord :

• Quantity: 1

Instruction Manual :

• Quantity: 1

• High Measurement Accuracy
• Stable and Reliable Experimental Results
• Suitable for General and Advanced Physics Laboratories
• Affordable Educational Solution
• Hands-On Acousto-Optic Experiments
• Detailed Instruction Manual
