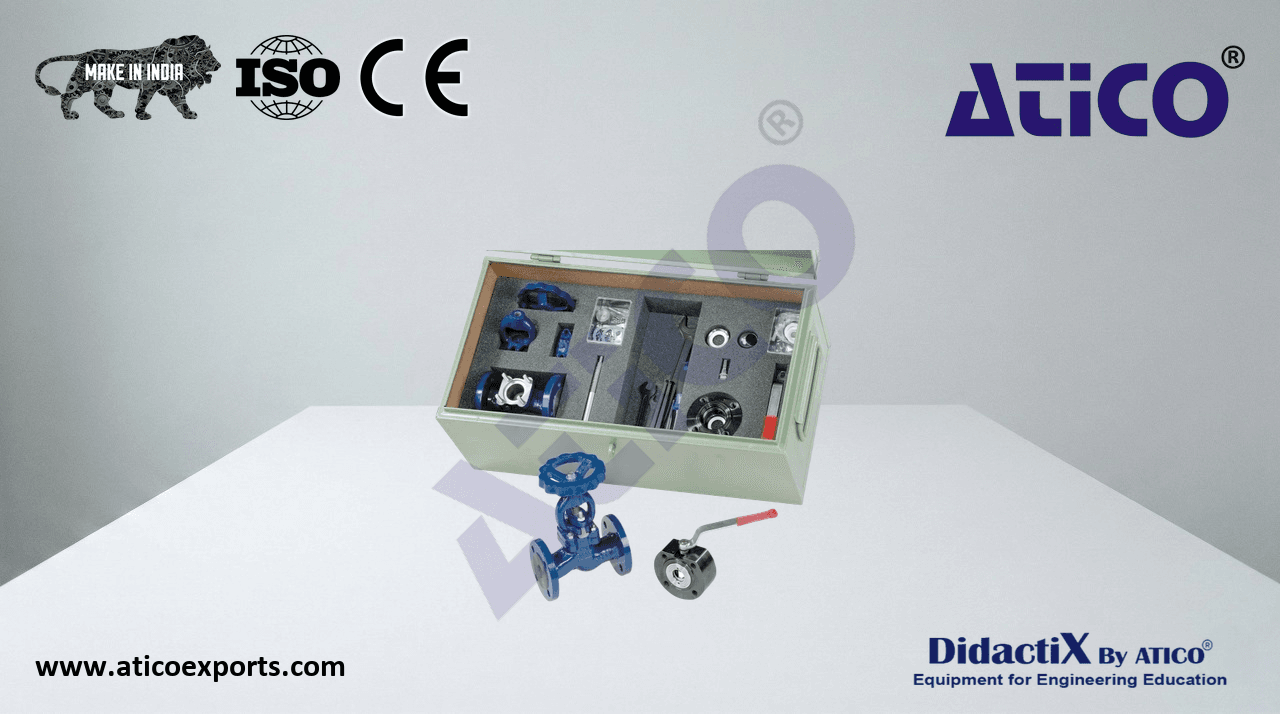

Assembly exercise: ball valve and shut-off valve

Shut-off valves, of the design presented here, are used to shut off and restrict the flow of media. They must be capable of complete flow shut-off. Closure of the valve should be such that the volumetric flow does not suddenly drop to zero in order to prevent shock loads. Learn about Assembly exercise: ball valve and shut-off valve suppliers for optimal educational outcomes.. The valve taper is moved by the spindle and makes a metallic seal against the seating ring pressed into the housing. The spindle is sealed by a packing gland. Learn about Assembly exercise: ball valve and shut-off valve Mechatronics Trainers6 India for optimal educational outcomes.. The joint between the housing and the clamp cover is sealed by a flat seal.

• learning concept for assembly exercises on valves and fittings
• shut-off valve, as kit
• 2-way ball valve, as kit
• complete assembly tool kit
• valve parts and tools housed in a sheet-steel tool box
• part of the Practice Line for assembly, maintenance and repair
