Assembly exercise: butterfly valve and non-return valve

Non-return valves are used where flow reversal is not permitted. They must fully seal off the reverse direction while offering the lowest possible resistance in the forward flow direction. If the differential pressure of the medium falls below the value as dictated by the spring force, the valve closes. Learn about Assembly exercise: butterfly valve and non-return valve specifications for optimal educational outcomes.. Non-return valves are installed in pipelines, and must close if the pressure drops or if a high back-pressure occurs. They are largely maintenance-free and low-wearing. Learn about Assembly exercise: butterfly valve and non-return valve for educational labs for optimal educational outcomes..

• learning concept for assembly exercises on valves and fittings
• butterfly valve with manual adjuster, as set of parts
• typical non-return valve, as set of parts
• complete assembly tool kit

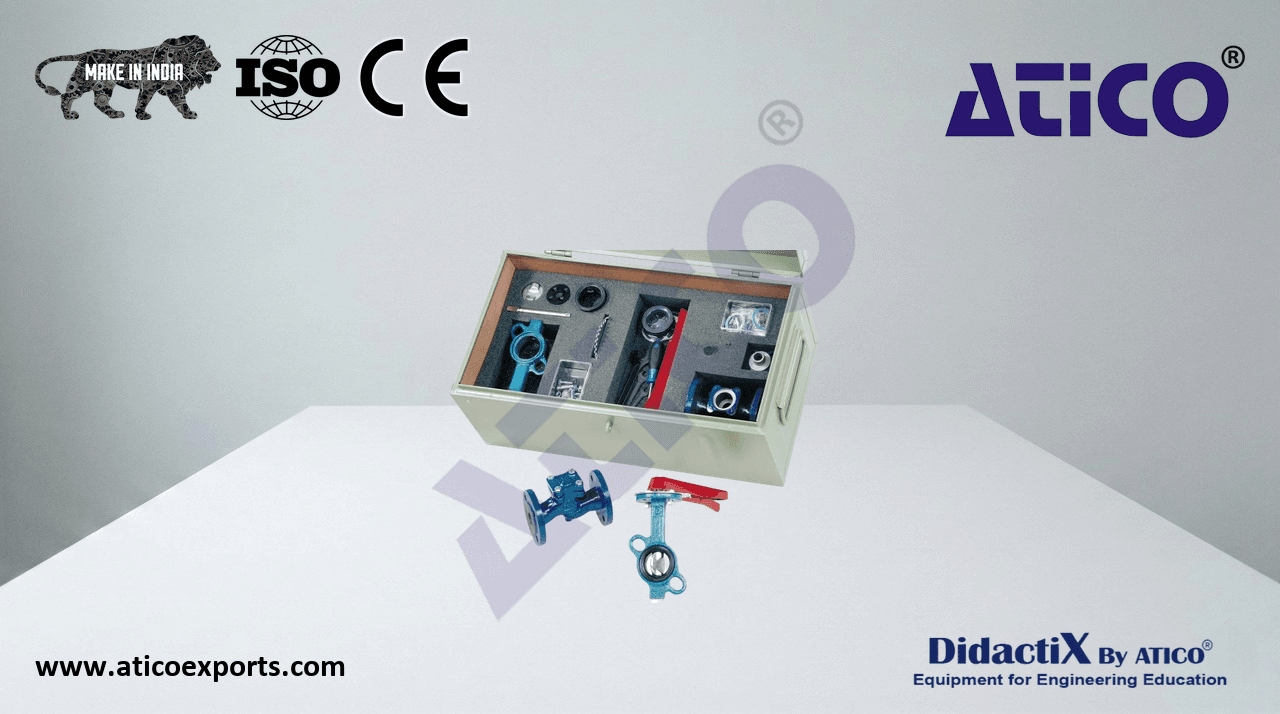

• valve parts and tools housed in a sheet-steel tool box
• part of the Practice Line for assembly, maintenance and repair
