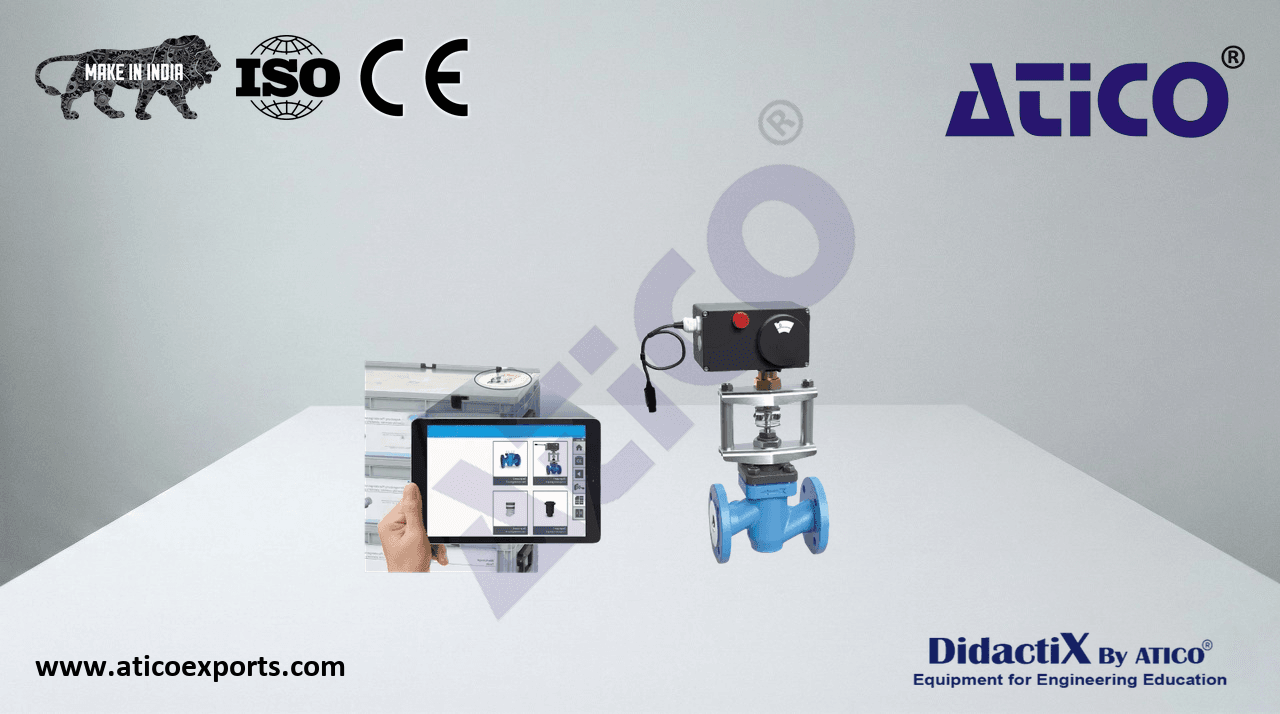

Assembly exercise: electrically driven control valve

The MT 102 unit is an electrically driven control valve. Control valves are key components of process engineering systems. They are generally used for regulating flows of gases or liquids. Learn about Assembly exercise: electrically driven control valve specifications for optimal educational outcomes..

• kit of an electrically driven control valve with digital positioner
• part of the Practice Line for assembly, maintenance and repair
• disassembled control valve with set of spare parts and tools, housed in a storage system with foam inlay
• control valve comprising valve housing, valve bonnet, electric actuator with positioner
• current signal generator for functional test of the assembled control valve
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
• vice required for assembly
• power supply required for functional test
