Assembly exercise: mitre gear Deluxe

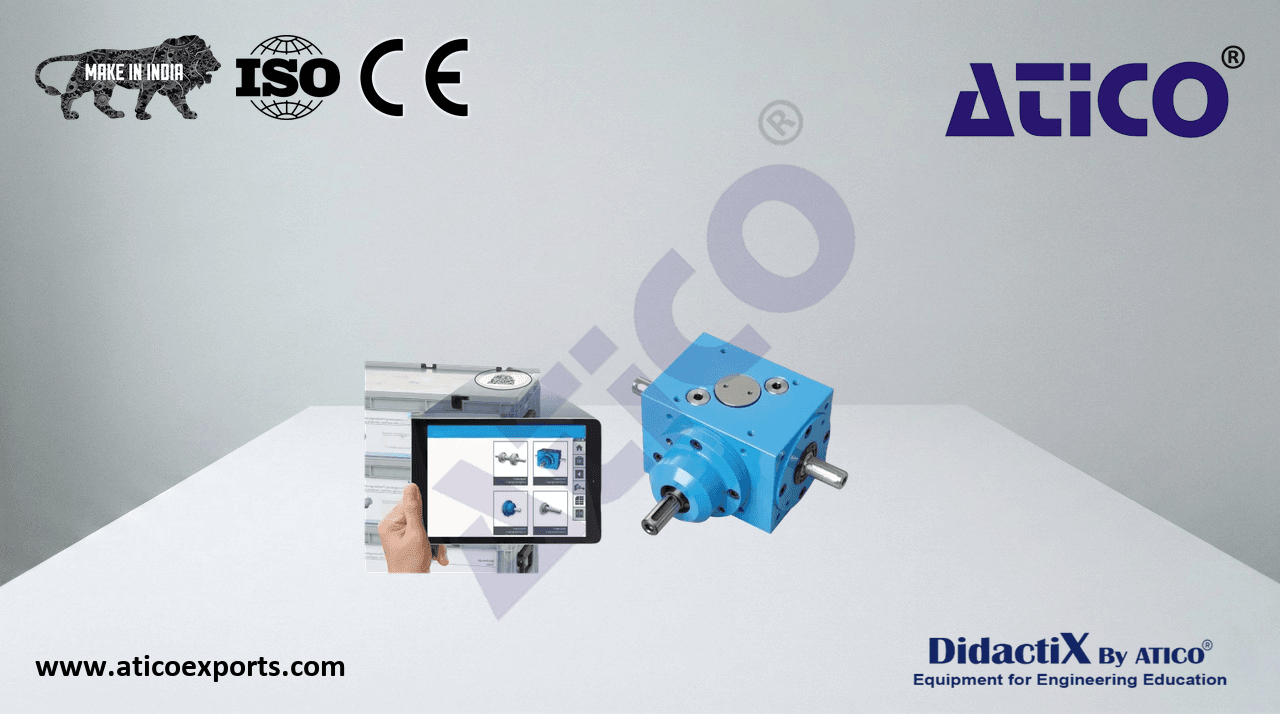

The MT 121 unit is a mitre gear unit with spiral bevel gear wheels. This single-stage gear is used to change the transmission direction and for branching. It is possible to connect two consumers. Learn about Assembly exercise: mitre gear suppliers for optimal educational outcomes.. Spiral bevel gears have more contact area than straight bevel gears. This increases smooth running and transmittable torque. Learn about Assembly exercise: mitre gear Mechatronics Trainers6 India for optimal educational outcomes..

• kit of a mitre gear unit
• part of DigiSkills and of the Practice Line for assembly, maintenance and repair
• disassembled mitre gear with set of small parts and 3 assembly jigs, housed in a storage system with foam inlay
• spiral bevel gear wheels
• gear unit comprising housing, driven and drive shafts, drive and driven bevel gear wheel, as well as bearings
• augmented reality: visualisation of machine elements, display of exploded views, functions
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
