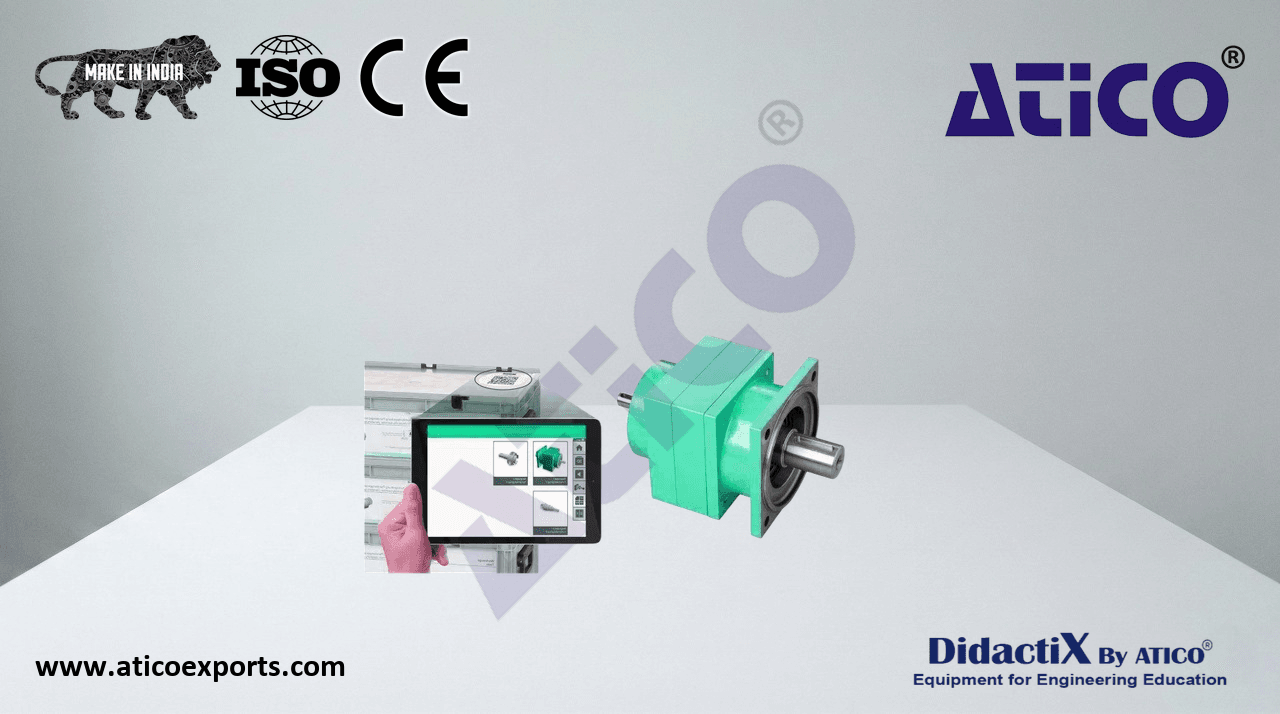

Assembly exercise: planetary gear

Planetary gears transmit and often increase torque while reducing speed at the same time. They are often used in wind power plants and as automatic transmission in automobiles. The unit is a single-stage planetary gear unit with three planet gears. Learn about Assembly exercise: planetary gear for educational labs for optimal educational outcomes.. The sun wheel is driven. The hollow wheel (also known as ring gear) is fixed. Learn about Assembly exercise: planetary gear exporters for optimal educational outcomes..

• kit of a planetary gear unit
• part of DigiSkills and of the Practice Line for assembly, maintenance and repair
• disassembled planetary gear with set of small parts and 4 assembly jigs, housed in a storage system with foam inlay
• gear unit comprising input housing, hollow wheel housing, output housing, drive shaft with sun wheel, output shaft with planet carrier, bearings
• augmented reality: visualisation of machine elements, display of exploded views, functions
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
