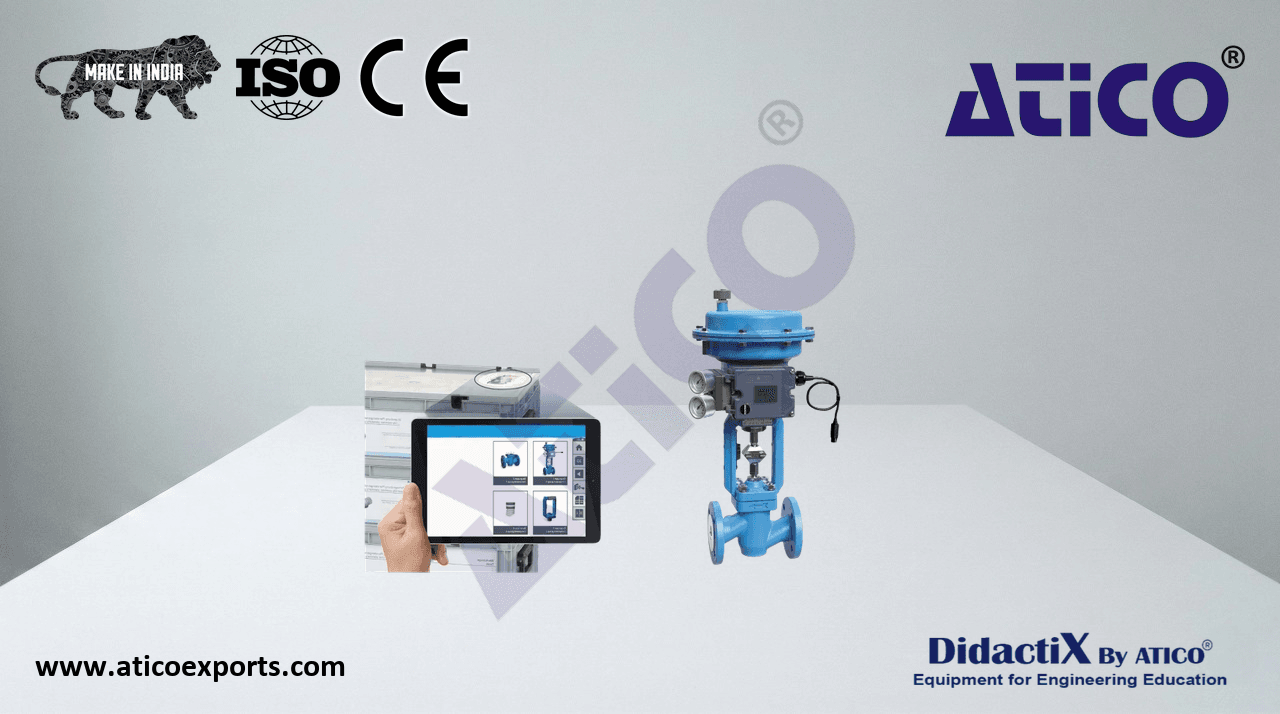

Assembly exercise: pneumatically driven control valve

The MT 101 unit is a control valve with electro-pneumatic positioner. Control valves are key components of process engineering systems. They are generally used for regulating flows of gases or liquids. Learn about Assembly exercise: pneumatically driven control valve equipment for optimal educational outcomes.. The electro-pneumatic control valve is set to the safe –closed– position when no auxiliary power is applied.

• kit of a pneumatically driven control valve with electro-pneumatic positioner
• part of the Practice Line for assembly, maintenance and repair
• disassembled control valve with set of spare parts and tools, housed in a storage system with foam inlay
• control valve comprising valve housing, valve bonnet, pneumatic actuator and positioner
• current signal generator for functional test of the assembled control valve
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
• vice and compressed air supply required for assembly
