Assembly exercise: shut-off valve

Shut-off valves of the type included in the MT 154 unit are used to shut-off and restrict the flow of media. They must be capable of total flow shut-off. The closing of the valve should be such that the volumetric flow does not suddenly drop to zero so as to prevent shock loads. Learn about Assembly exercise: shut-off valve specifications for optimal educational outcomes.. The valve taper is moved by the spindle and ensures a metallic seal against the seating ring pressed into the housing. The spindle is sealed by a packing gland. Learn about Assembly exercise: shut-off valve suppliers for optimal educational outcomes.. The joint between the housing and the clamp cover is sealed by a flat seal.

• assembly exercise for engineering training

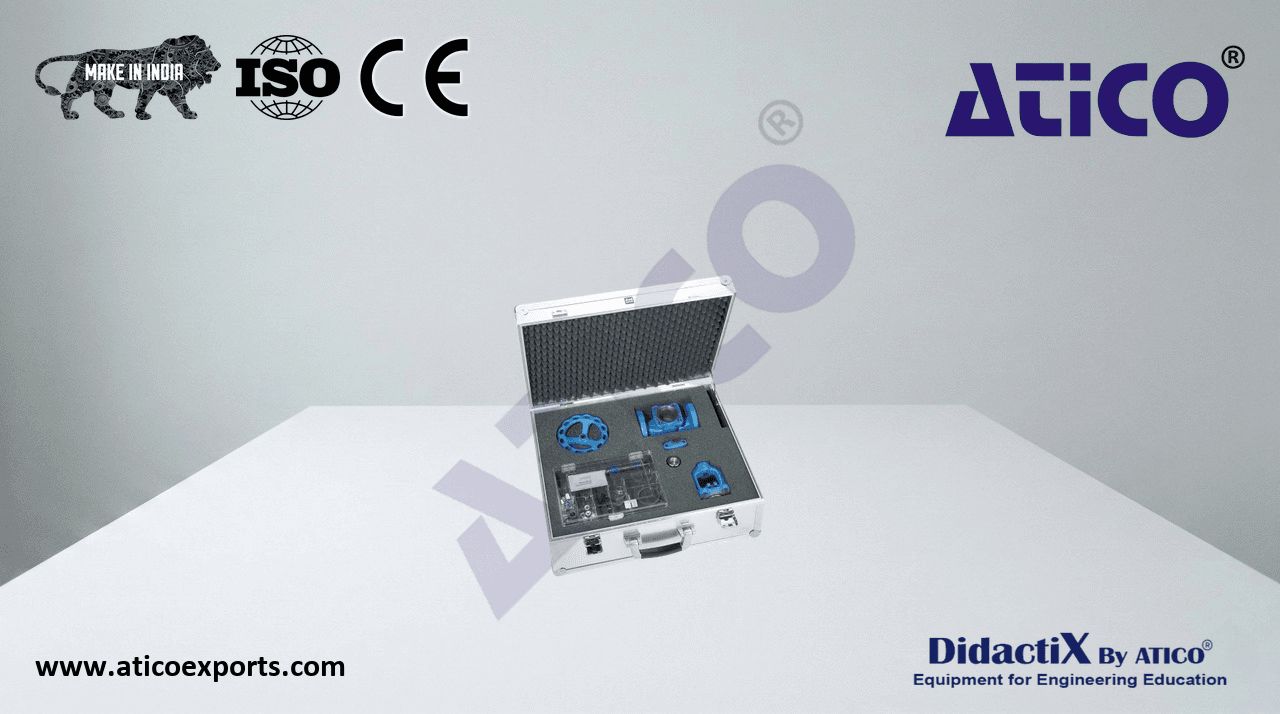

• shut-off valve PN16 as parts set, with associated set of small parts, in a sturdy case
• shut-off valve consisting of housing, hand wheel, clamp cover, packing gland frame, taper and spindle
• spindle sealing based on the gland principle
• part of the Practice Line for assembly, maintenance and repair
