Assembly exercise: spur and worm gear

The unit deals with a twostage gear. The kit contains all the individual parts to build the gear. The gear comprises a spur gear stage as its input, with a downstream worm gear stage (combined gear). Learn about Assembly exercise: spur and worm gear specifications for optimal educational outcomes..

• kit of a spur and worm gear
• part of DigiSkills and of the Practice Line for assembly, maintenance and repair
• complete, disassembled gear unit with set of small parts and 8 assembly jigs, housed in a storage system with foam inlay

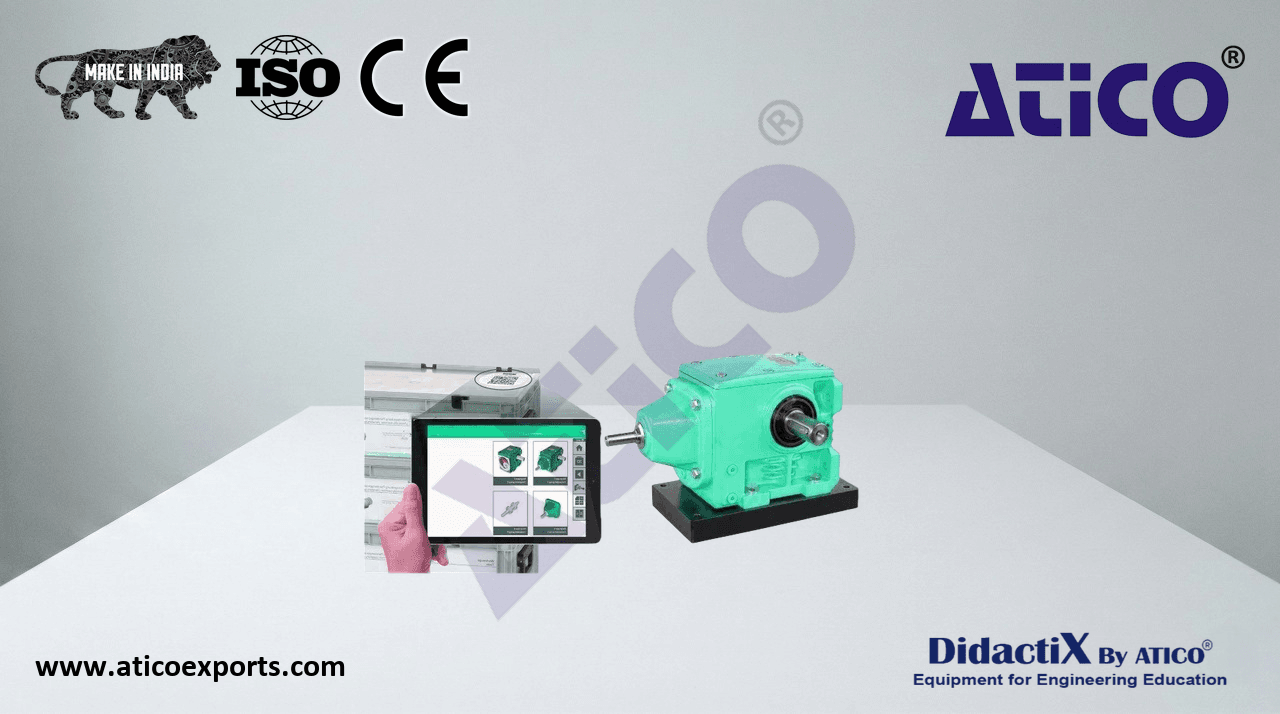

• gear unit comprising drive housing, worm pedestal housing, driving and driven shafts, spur gear stage and worm gear stage
• spur gear stage with helical gear wheels
• worm gear stage with cylindrical worm and globoid wheel
• augmented reality: visualisation of machine elements, display of exploded views, functions
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
