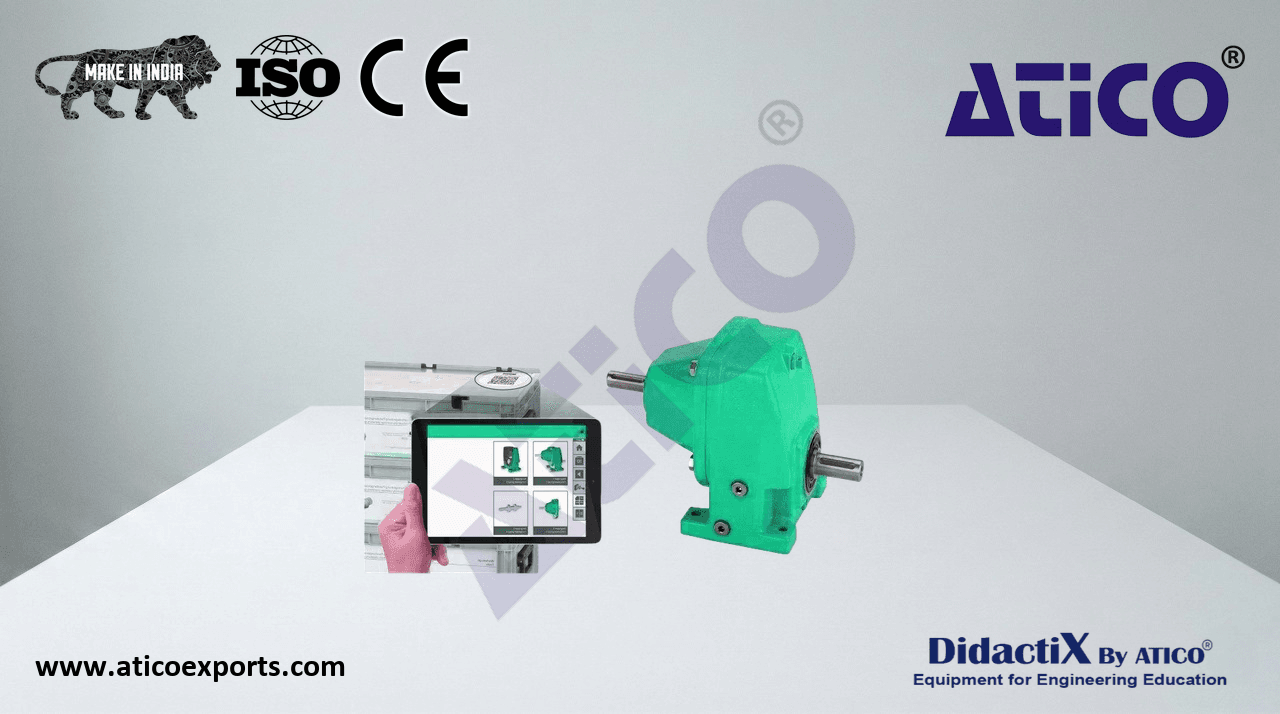

Assembly exercise: spur gear

The unit is a spur gear unit with helical gear wheels. The gear is single-stage and has a fixed transmission ratio (fixed gear unit). Helically cut gear wheels run more smoothly and quietly than straight-toothed gears because the gear teeth intermesh gradually and multiple teeth are engaged. Learn about Assembly exercise: spur gear manufacturers for optimal educational outcomes.. They are suitable for higher speeds, and can withstand greater loading than comparable straight-toothed gears.

• kit of a spur gear unit
• part of DigiSkills and the Practice Line for assembly, maintenance and repair
• disassembled spur gear with set of small parts and 4 assembly jigs, housed in a storage system with foam inlay
• helical spur gear wheels
• gear unit comprising driven parts housing, drive housing, driven and drive shafts, driven gear and drive pinion, as well as bearings
• augmented reality: visualisation of machine elements, display of exploded views, functions
• multimedia instructional materials: PDF, CAD files, STEP files, videos
• online access to the Media Center
