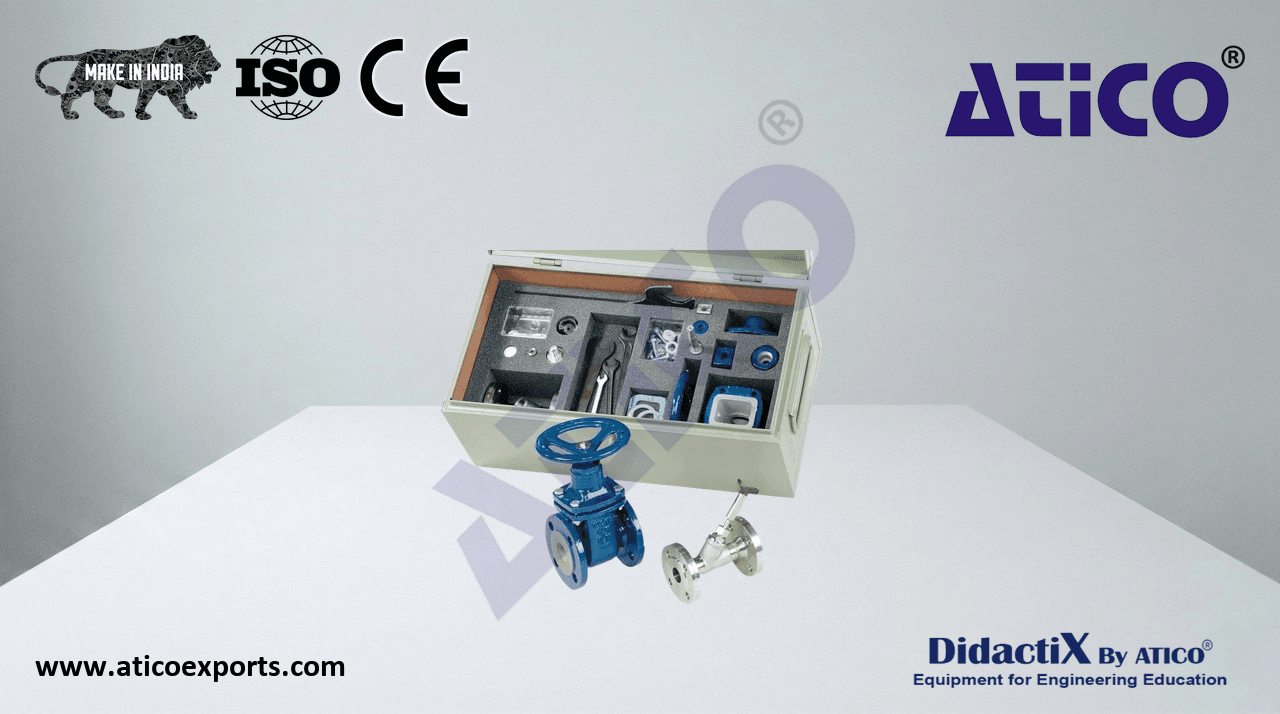

Assembly exercise: wedge gate valve and angle seat valve

Wedge gate valves are used as fittings for water, water vapour, oil and other non-aggressive liquids. Operating temperatures of up to 200°C are possible. Wedge gate valves in this design are operated by a hand-wheel turned spindle. Learn about Assembly exercise: wedge gate valve and angle seat valve suppliers for optimal educational outcomes.. During closing, the slider is pushed by the spindle nut into the sealing rings in the housing.

• learning concept for assembly exercises on valves and fittings
• wedge gate valve with hand wheel, as set of parts
• angle seat valve with manual drive, as set of parts
• complete assembly tool kit
• valve parts and tools housed in a sheet-steel tool box
• part of the Practice Line for assembly, maintenance and repair
