Assembly of a Motorized Control Valve Unit

The Assembly of a Motorized Control Valve Unit, is a motorized ball valve that allows the assembly, the replacement of damaged components, the repair and testing of the device and allows up to three students to perform different actions at the same time.

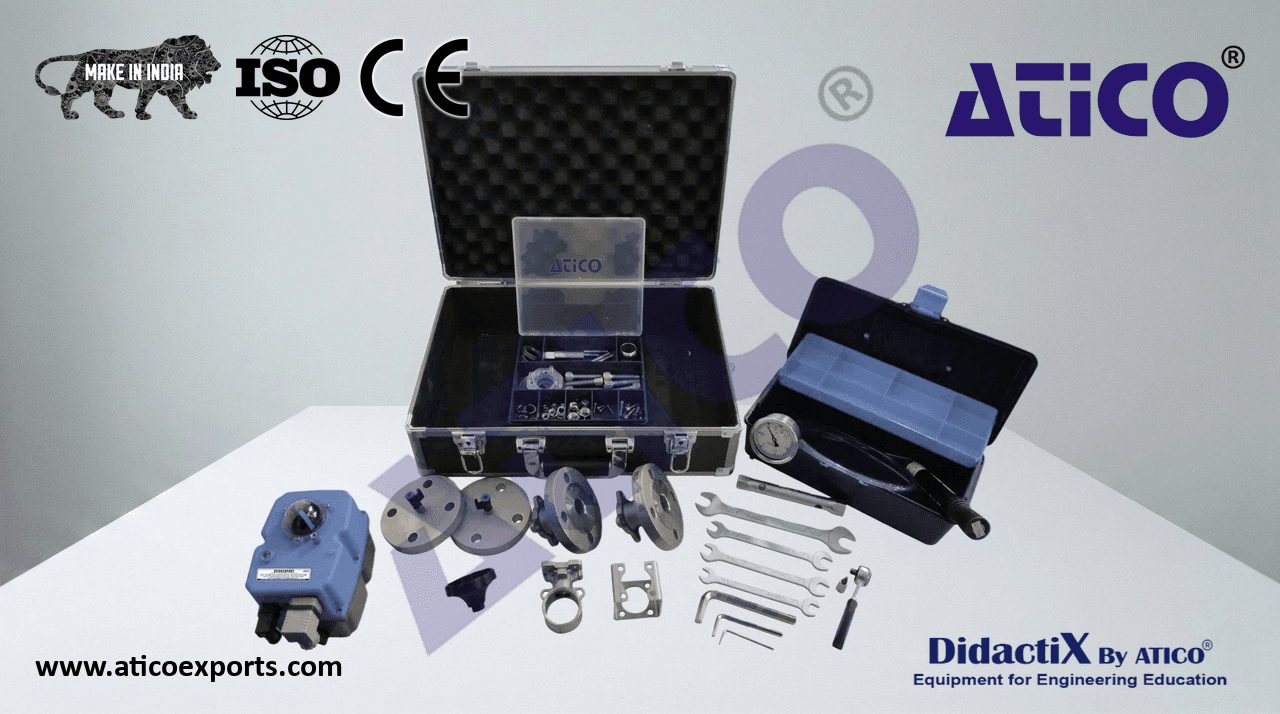

ATENG 11918 — Assembly of a Motorized Control Valve Unit

Carrying case made of aluminum.

Main metal elements made of stainless steel.

Body and cover made of anticorrosive polyamide.

• The “ATENG 11918” unit mainly consists of:
• Motorized ball valve with clamp connections:
  DN 25.
  PN 40.
  Clamp connections made of cast iron.
  Electric actuator.
• Leak test set:
  Hand pump.
  Manometer.
  ATENG 11918 détail
  Flange connections.
• Assembly and disassembly tools set:
  Tool case with several compartments.
  Box with spare nuts and bolts.
• Tools and wrenches:
  Open-end wrenches.
  Allen keys.
  Reversible ratchet wrench.
  Etc.
• Spare parts kit:
  Thrust washers.
  Stem packing.
  O-rings.
  Etc.
