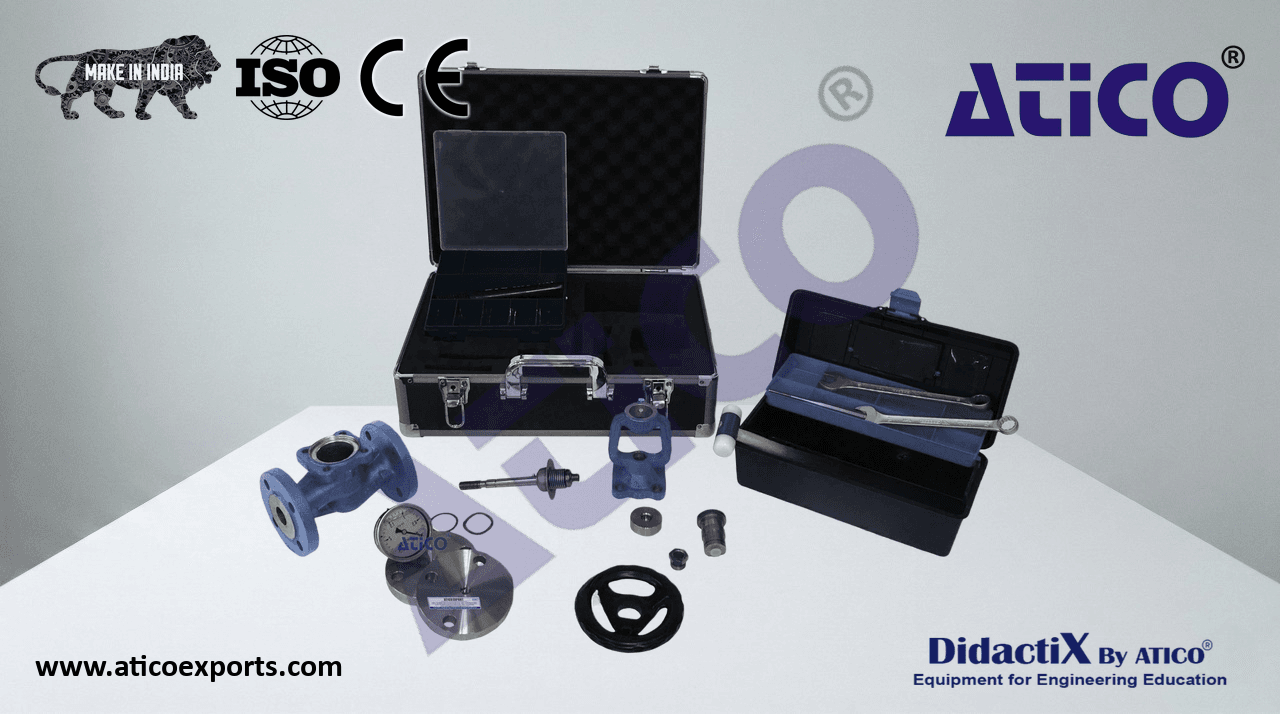

Assembly of a Shut-Off Valve Unit

The Assembly of a Shut-Off Valve Unit, is a bellows-sealed globe valve that allows the study of the assembly, the replacement of damaged components, the repair and testing of the device and allows up to three students to perform different actions at the same time.

ATENG 11917 — Assembly of a Shut-Off Valve Unit

Carrying case made of aluminum.

Main metal elements made of stainless steel.

• The “ATENG 11917” unit mainly consists of:
• Shut-off valve with clamp connections:
  DN 25.
  PN 16.
• Diameter of the wheel: 125 mm.
• Diameter of the pitch: 115 mm.
  Body and cover made of cast iron.
  Disc, seat, bellows, rod and wheel made of stainless steel.
  Seal made of laminated graphite with stainless steel.
  Gland nut made of stainless steel.
• Leak test set:
  Manual pump.
  ATENG 11917 detail
  Manometer.
  Flange connections.
• Assembly and disassembly tools set:
  Tool case with several compartments.
  Box with spare nuts and bolts (screws, nuts, washers and pins).
  Four combination wrenches.
  Adjustable wrench.
  Soft face hammer.
  Circlip puller.
• Spare parts kit:
  Washers.
  Seeger lock rings.
  Gaskets.
  Etc.
