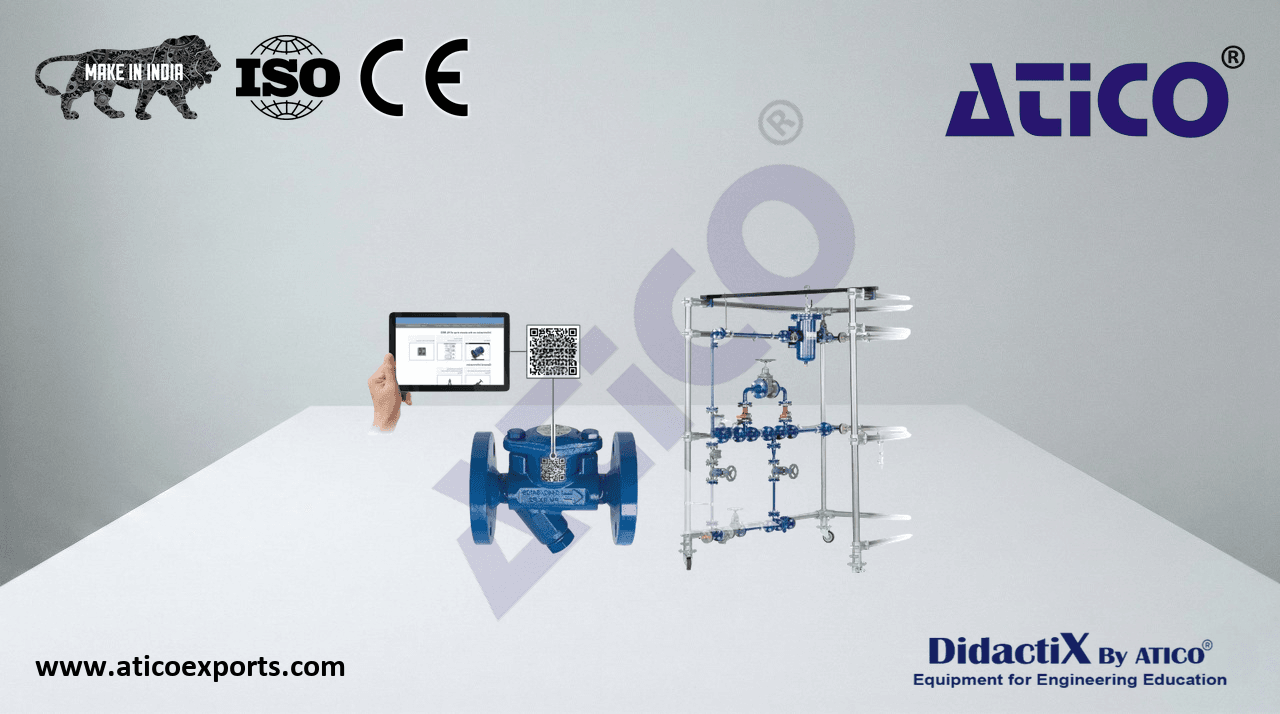

Assembly station pipes and valves and fittings

HL 960 is a practical exercise and training system which provides an entirely authentic introduction to industrial pipes and valves and fittings. The assembly kit comprises a wide variety of valves and fittings, piping elements and one pressure tank, as well as sealing and fastening components. A sturdy U-shaped mounting frame permits assembly of a variety of piping systems, plant components and functional units. Learn about Assembly station pipes and valves and fittings for educational labs for optimal educational outcomes.. The piping elements are prepared ready for assembly, and matched to installation lengths and flange connections. The components permit multiple assembly and disassembly. Learn about Assembly station pipes and valves and fittings price for optimal educational outcomes..

• assembly exercise for engineering training
• piping network comprising pipe bends, elbows, T-pieces and transitions in nominal widths DN15, 25, 40
• pipe connections via flanges or cutting ring screw fittings
• standard commercially available flanged fittings: shut-off valve, non-return valve, strainer, condensation drain, inspection glass, ball valve, gate valve
• ball valve with cutting ring screw fitting
• pressure vessel with manometer, connection via DN15 flanges
• connection to water supply via hose with coupling
• optional water supply via HL 960.01
• mobile frame for mounting of pipe network
• the kit forms part of the assembly, maintenance and repair practice line
• online access via QR code with digital information on the valves and fittings
