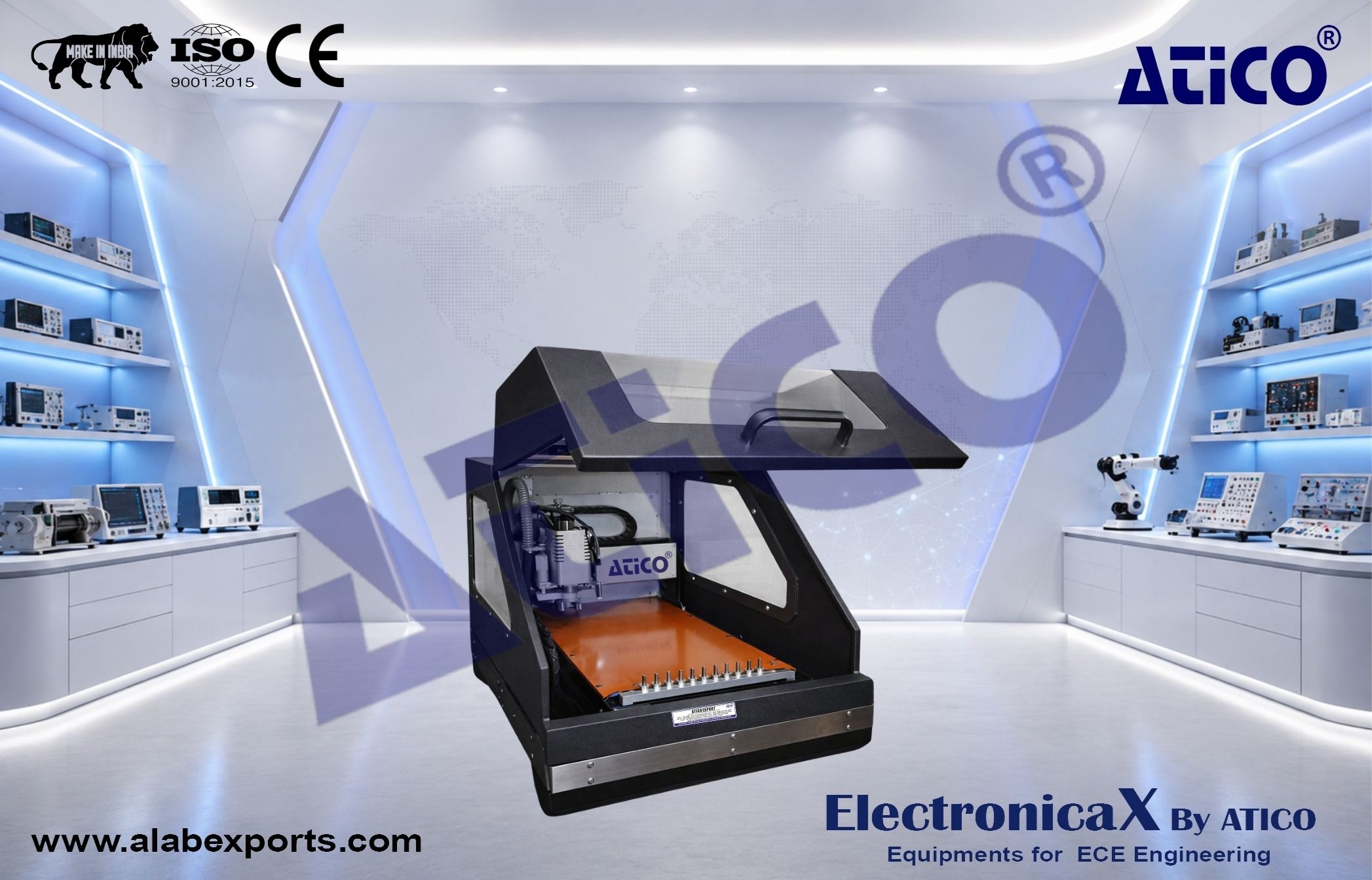

Auto PCB Prototyping Machine AUTO

• One key process advanced PCB making system
• Applicable for RF, microwave, high frequency, digital, analog and manufacturing fixtures
• Supports double and single sided circuit board prototyping
• Motorized Z axis with AI control monitored by PC
• Easy operation with vision alignment system
• Supports GERBER and DXF format

Working area :

• 230 x 320 mm

Axes :

• X, Y, Z

Maximum travel speed :

• 60 mm/sec

Maximum working speed :

• 30 mm/sec

Drilling performance :

• 120 stroke/min

Tool holder :

• 1/8 inch socket

Surface detect :

• auto surface detect

Weight :

• 60 kg

Power consumption :

• AC 110 – 220 V

Resolution X/Y :

• 0.5 °m

Control motor :

• X, Y, Z stepping motor

Minimum trace width :

• 4 mil

Drilling :

• 0.2 – 3.175 mm

Tool change :

• automatic 12 positions

Tool length detect :

• auto tool length detect

Spindle speed :

• 5,000 – 42,000 rpm software control

Dimensions :

• W735 x D500 x H497 mm
