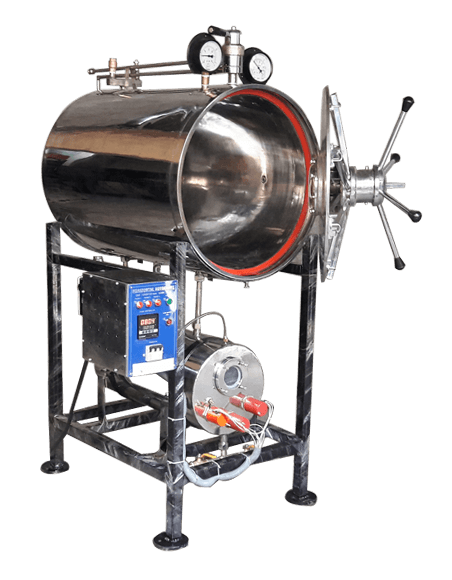

Autoclave - Samples

Body Construction :-

• Inner Chamber, Outer Chamber & Support Ring are fully made of Stainless Steel (304 Grade).
• Heaters Cover Stand & Carrier / Bucket are made of Stainless Steel.
• Supporting Ring & Stand : Made of Mild Steel

Sterilizing Pressure :-

• 1.2 kgf / cm2 (15 Psi) at 121°C

Operating Pressure :-

• from 15 psi to 22 Psi (adjustable)

Lid :-

• Made of Thick Machined Stainless Steel Plate with moulded joint-less Silicon Rubber Gasket.

Locking Mechanism :-

• Radial Locking System to ensure user safety & safe locking.

Safety Features :-

• Pressure Gauge, Spring Loaded Safety Valve, Double Safety Valve, Manual Exhaust Valve, Vacuum Breaker etc. Safety Devices

Control Panel :-

• Provided with miniature circuit breaker for Mains ON/OFF & safety of control panel.

Accessories Included :-

• Water Level Indicator
• Stainless Steel Basket
• Vacuum Breaker

Power Supply :-

• 220 / 230 VAC, 50/60 Hz, Single Phase

OPTIONS

Model Nos.	Chamber Size	Chamber Capacity / Volume	Heater
AELB171/A	250 x 450 / 10 x 18	22 Ltrs.	1.5 kW
AELB171/B	300 x 500 / 12 x 20	40 Ltrs.	2 kW
AELB171/C	350 x 550 / 14 x 22	50 Ltrs.	3 kW
AELB171/D	400 x 600 / 16 x 24	78 Ltrs.	4 kW
AELB171/E	450 x 600 / 18 x 24	98 Ltrs.	4 kW
AELB171/F	550 x 750 / 22 x 30	152 Ltrs.	6 kW

Optional Accessories :-
- Automatic Pressure Control Switch.
- Automatic Low Water Cut-off System.
- Microprocessor based Digital Temperature Indicator-cum-Controller with set value and process value / Digital Timer.
- Microprocessor based Digital Temperature Indicator-cum-Controller with set value and process value / timer and purging on/off fully automatic.
