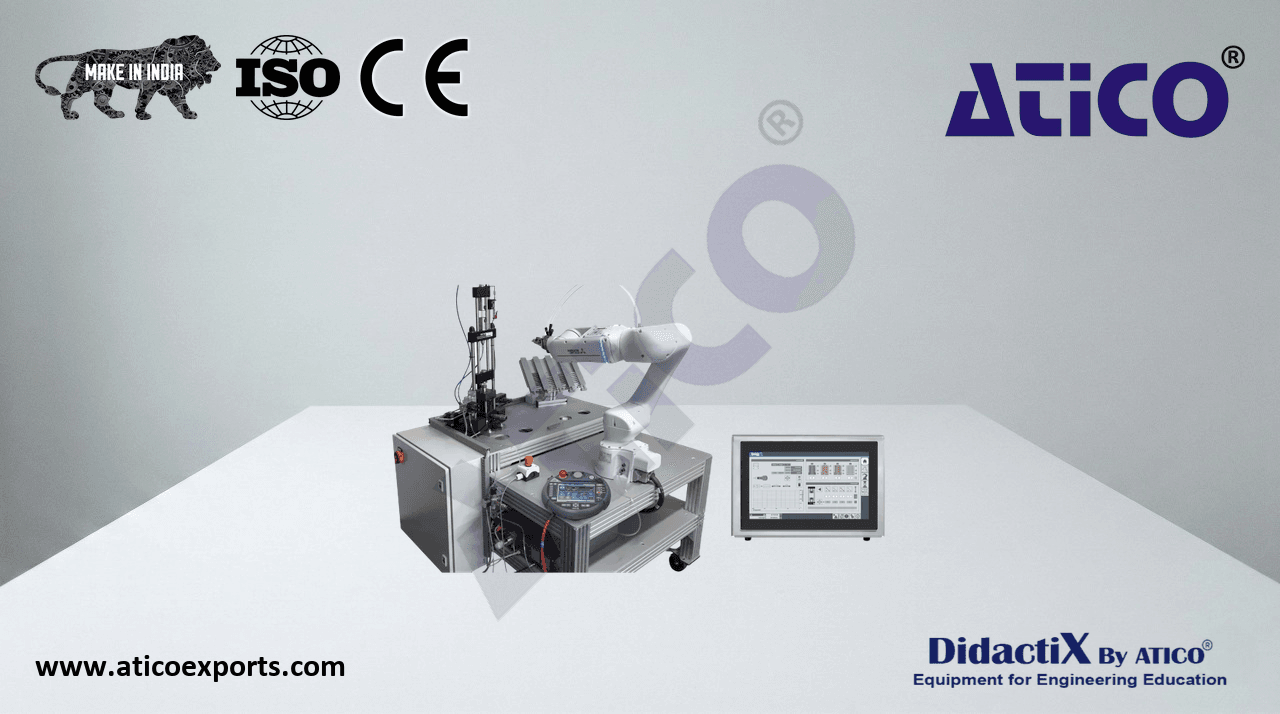

Automated process with cobot

The main task of the IA 500 experimental plant is to convert a manual process – in this case a classic tensile test – into a fully automated process. The goal is a fully automated tensile test without human intervention. Automation is developed step by step and underpinned with practical tasks, instructions and information. Learn about Automated process with cobot price for optimal educational outcomes..

• automation of a manual process
• develop the automation potential in a process analysis as well as implementation, testing and optimisation of the developed solutions
• high-quality industrial collaborative robot (cobot) with associated controller and gripper
• collet chucks with electropneumatic centring to hold the tensile specimen
• application of force via stepper motor with a screw jack and hydraulics, controlled via stepper motor controller
• emergency stop equipment
• fill level monitoring in the specimen store via inductive proximity switches
• force measurement via pressure sensor
• path measurement via linear potentiometer
• experimental plant controlled with PLC, can be operated via touch screen
• data transfer via USB for versatile external use of measured values and screenshots
• network capability: access to ongoing experiments and their results from up to 10 external workstations simultaneously via the local network
• screen mirroring: possible to mirror the user interface on up to 10 end devices
