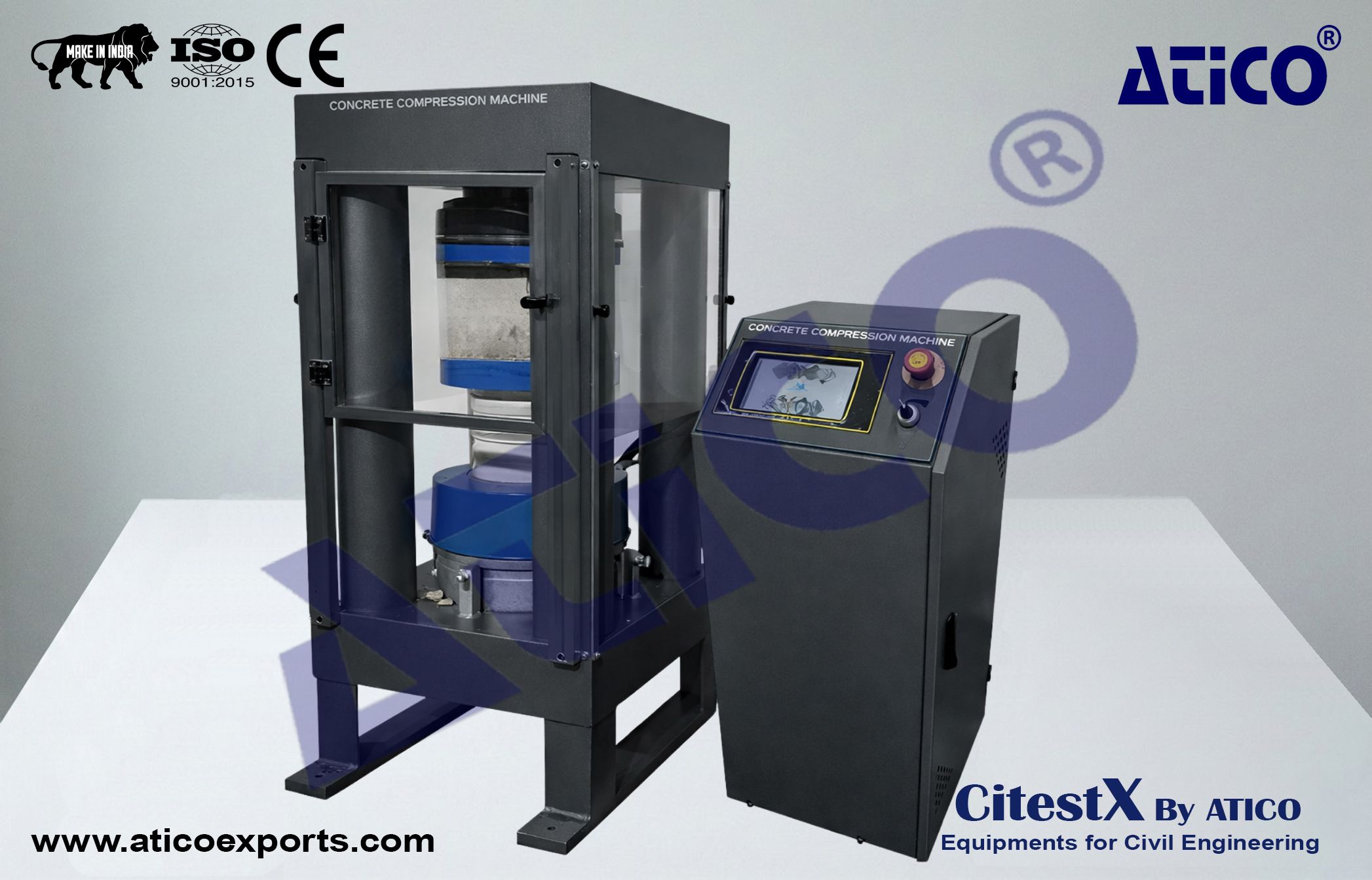

Automatic Concrete Compression Testing Machine Four Column Touch Screen

STANDARD SUPPLY

• Heavy Duty Four Column Load Frame
• Automatic Dual-Stage Hydraulic Power Pack
• Digital Data Acquisition & Control System
• Distance Pieces (°200 ° 30 mm, °200 ° 50 mm, °200 ° 80 mm)
• Upper Platen °300 mm (with ball seating assembly)
• Lower Platen °300 mm
• Loading Cylinder Assembly with Limit Switch
• Front & Rear Protective Doors
• PC Software and Ethernet Cable

FOUR COLUMN LOAD FRAME

Available capacities :

• 2000 kN
• 3000 kN
• 4000 kN
• 5000 kN

Features :

• Heavy-duty column type structure
• High rigidity and long-term stability
• Factory calibration certificate supplied
• Upper platen self-alignment conforming to EN 12390-4

UPPER & LOWER PLATENS

• °300 mm hardened steel platens
• Surface roughness – 3.2 °m
• Ball seating assembly on upper platen
• Centering rings for:
• 100 mm & 150 mm cubes
• °100 mm & °150 mm cylinders
• Specimen centering apparatus for 150 mm cube & °150 mm cylinder

DISTANCE PIECES

• °200 mm distance pieces supplied
• Used to reduce vertical clearance between platens

LOADING CYLINDER & SAFETY SYSTEM

• Single-acting up-stroking ram
• Maximum ram stroke: 50 mm
• Automatic piston return after test
• Limit switch prevents over-travel
• Pressure transducer for load measurement
• Low-friction PTFE seal between piston and cylinder

HYDRAULIC POWER PACK

Performance

• Dual-stage automatic hydraulic system
• Loading rate: 1 – 20 kN/sec
• Accuracy: °5%
• Maximum working pressure: 400 bar
• Rapid approach function included
• Maximum pressure safety valve

Dual Stage Pump

• Low-pressure gear pump – rapid approach
• High-pressure radial piston pump – test execution
  Rapid approach significantly reduces total testing time.

Motor

• AC motor
• Inverter-controlled speed adjustment

Distribution Block

Includes:

• Solenoid valve
• Maximum pressure safety valve
• Pressure transducer
• Low-pressure gear pump
• High-pressure radial piston pump

HIGH PRECISION PRESSURE TRANSDUCER

• Class 1 accuracy starting from 50 kN as standard
• Optional special calibration: Class 1 from 1% of full range

Suitable for :

• Early-age compression tests (2–3 days)
• Flexural testing (with accessories)
• Splitting tensile testing
• Mortar compression testing
• Core testing

OIL TANK

• Capacity: 25 liters
• Oil level & temperature indicator
• Hydraulic oil No. 46 required

DIGITAL DATA ACQUISITION & CONTROL SYSTEM

• Designed to control compressive, flexural, and splitting tensile tests.

User Interface

• Color TFT-LCD touchscreen display
• Menu-driven interface

Simultaneous display of :

• Machine status
• Test values
• Warnings
• Real-time graphs

Real-Time Graphs:

• Load vs Time
• Stress vs Time
• Load vs Displacement

Main Control Features

• 2 analog channels
• Control of 2 frames (optional)
• Closed-loop PID load control
• Optional integrated thermal printer
• Up to 8-point calibration
• Adjustable digital gain per channel
• Customizable load & termination limits

Storage capacity :

• 10,000 test results
• Or 80 hours real-time recording
• Configurable graph axes (fixed or auto-scale)

Unit systems :

• kN – MPa – mm
• lbf – psi – in
• kgf – kgf/cm° – cm
• Real-time clock & date
• Multi-language support
• LAN connection
• USB data export
• Password protection
• TXT & Excel export

HARDWARE

• 2 fully customizable analog channels
• 24-bit ADC with FPGA circuitry
• 800 ° 480 TFT-LCD touchscreen
• 33 Hz control loop
• ARM Cortex-M3 processors
• USB memory support (up to 32 GB)
• Optional integrated thermal printer
• LAN & USB connectivity

PC SOFTWARE

The included PC software provides:

• Data acquisition
• Machine control (Start/Stop)
• Database management
• Automated report generation

Supported Tests

• Compressive strength of concrete cubes & cylinders
• Flexural strength of concrete beams
• Compressive & flexural strength of cement mortars
• Splitting tensile strength
• Flexural strength of kerbs & roofing tiles
• Compressive strength of masonry units

Software Features

• Multi-language interface
• Storage of 30 tests per file
• Advanced graphical interface
• Export to database
• Flexible report formats
• Multi-curve comparison
• Editable test parameters

MAIN DEVICE FEATURES

• Pace rate control: 1 – 20 kN/sec
• Class 1 accuracy per EN 12390-4
• Factory calibration certificate
• Closed-loop automatic testing
• Dual-stage hydraulic pump
• Automatic piston return
• Multi-point calibration
• Ethernet interface
• Optional thermal printer
• Free PC software

SAFETY FEATURES

• Maximum pressure safety valve
• Piston travel limit switch
• Emergency stop button
• Software-controlled maximum load protection
• Front & rear transparent protective guards

The Automatic Four Column Compression Testing Machines are designed for reliable and consistent testing of a wide range of concrete and construction material specimens.
The machines comply with relevant EN, ASTM, and BS standards, and meet CE safety requirements for operator protection.
Testing can be performed either:

• Via the touchscreen digital control unit
• Or through a computer using free PC software
  Computer-based testing provides advantages such as graphical output, database management, and advanced reporting.

EASY OPERATION :

After switching on the machine and positioning the specimen:

• Set test parameters (pace rate required only when specimen type changes).
• Press the START button.

The system automatically:

• Performs rapid approach
• Switches to selected loading rate upon specimen contact
• Stops after specimen failure
• Saves test parameters and results automatically

Dimensions (cm) :

• AECE2042/A - 91 ° 56 ° 107
• AECE2042/B - 102 ° 57 ° 112
• AECE2042/C - 109 ° 61 ° 135
• AECE2042/D - 115 ° 64 ° 154

Weight (kg) :

• AECE2042/A - 1130
• AECE2042/B - 1900
• AECE2042/C - 2450
• AECE2042/D - 2450

Capacity (kN) :

• AECE2042/A - 2000
• AECE2042/B - 3000
• AECE2042/C - 4000
• AECE2042/D - 5000

Roughness (°m) :

• AECE2042/A - – 3.2
• AECE2042/B - – 3.2
• AECE2042/C - – 3.2
• AECE2042/D - – 3.2

° Lower Platen (cm) :

• AECE2042/A - 300
• AECE2042/B - 300
• AECE2042/C - 300
• AECE2042/D - 300

° Upper Platen (cm) :

• AECE2042/A - 300
• AECE2042/B - 300
• AECE2042/C - 300
• AECE2042/D - 300

Max. Vertical Clearance (cm) :

• AECE2042/A - 33
• AECE2042/B - 33
• AECE2042/C - 52
• AECE2042/D - 52

Piston Diameter (cm) :

• AECE2042/A - 25
• AECE2042/B - 32
• AECE2042/C - 37
• AECE2042/D - 41

Piston Stroke (cm) :

• AECE2042/A - 5
• AECE2042/B - 5
• AECE2042/C - 5
• AECE2042/D - 5

Horizontal Clearance (cm) :

• AECE2042/A - 35
• AECE2042/B - 44
• AECE2042/C - 49
• AECE2042/D - 53

Thickness of Platens (cm) :

• AECE2042/A - 5
• AECE2042/B - 5
• AECE2042/C - 5
• AECE2042/D - 5

Hardness of Platens (HRC) :

• AECE2042/A - 55–60
• AECE2042/B - 55–60
• AECE2042/C - 55–60
• AECE2042/D - 55–60

Oil Capacity (L) :

• AECE2042/A - 25
• AECE2042/B - 25
• AECE2042/C - 25
• AECE2042/D - 25

Max. Working Pressure (bar) :

• AECE2042/A - 400
• AECE2042/B - 400
• AECE2042/C - 400
• AECE2042/D - 400

Power (W) :

• AECE2042/A - 750
• AECE2042/B - 750
• AECE2042/C - 750
• AECE2042/D - 750
