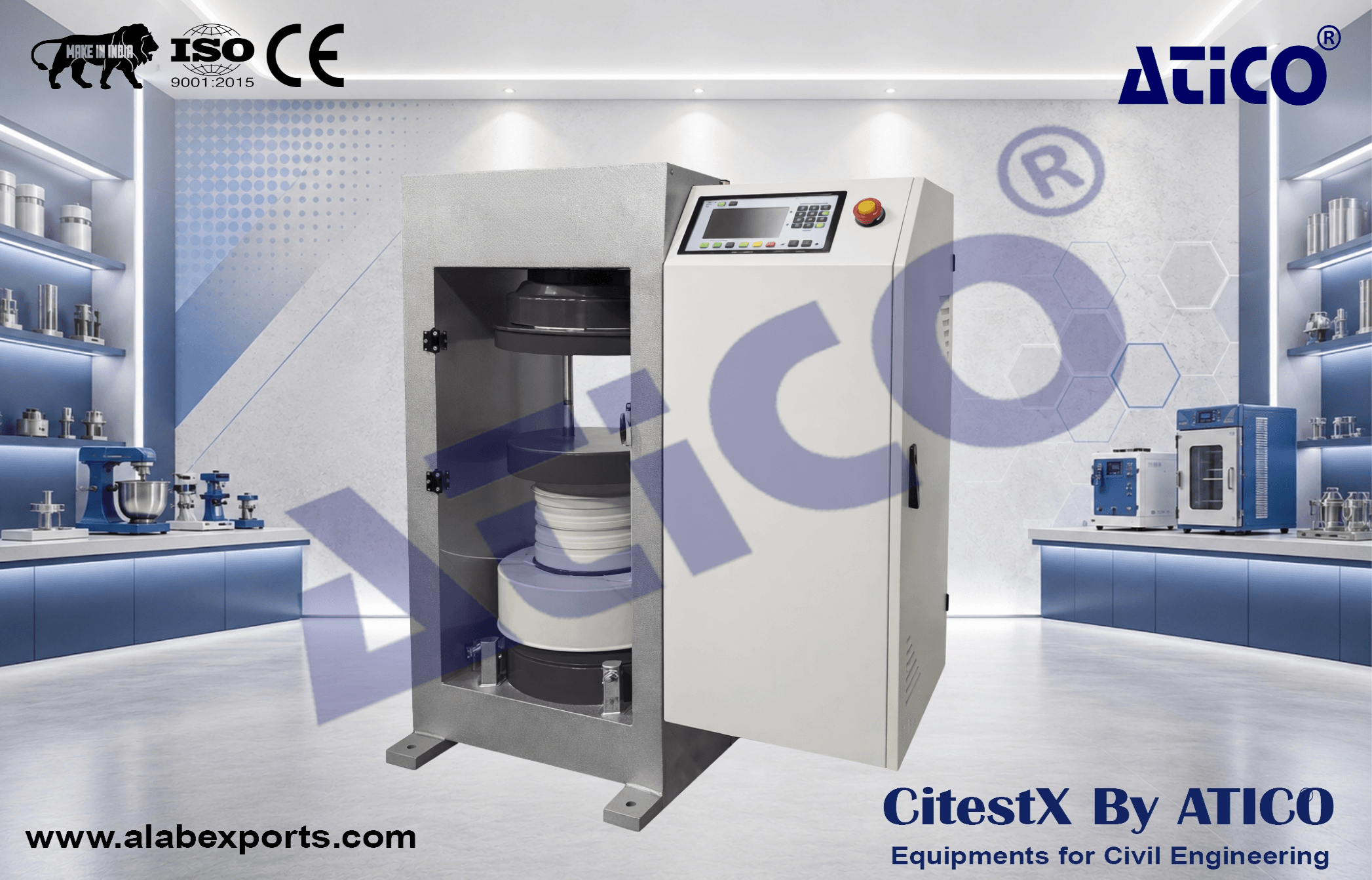

Automatic Concrete Compression Testing Machine, Welded Wall

Application :

• The Automatic Compression Testing Machines allow inexperienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus, the only required operations are;
• Setting test parameters, including pace rate (only required when the specimen type is changed).
  Pressing the START button on the control unit.
• The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
• Automatically saves the test parameters and test results.

Standard Supply :

• The Automatic Concrete Compression Testing Machines consist of;
• Load Frame,
• Automatic Hydraulic Power Pack,
• Digital data acquisition & control system,
• Distance Pieces, 30 mm, 50 mm and 80 mm,
• Upper Platen (with ball seating assembly),
• Lower Platen,
• Loading Cylinder Assembly & Limit Switch for safety,
• Front and Rear Protective Doors for safety,
• Software and Ethernet Cable.

Concrete Compression Load Frame :

• Capacities of 1500 kN, 2000 kN and 3000 kN Load Frames are most popular and available models for welded type - frames.
• The load frame provides the stability needed for accurate and repeatable test results over the years of operation.
• The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

Upper Platens / Lower Platens :

• The platens enable the testing of a wide variety of cylinder, cube blocks or similar samples.
• Manufactured from high quality steel, which is then hardened, smoothed and finished.
• The roughness value for the surface texture of the auxiliary platens is – 3.2 °m.
• °165 mm and °300 mm Upper Platen (with ball seating assembly) and Lower Platen have centering rings on the lower platens for proper centering of 100 mm and 150 mm cube, 100 mm and 150 mm cylinder samples.

Block Platens with Sliding Rail Assembly :

Standards Compliance :

• Complied as per EN 772-1, EN 12390-4
• Block Platens with Sliding Rail Assembly are installed on the compression testing machines for testing concrete blocks and other structural materials. The Sliding Rail Assembly allows the platens to be easily installed without removing the existing °300 mm compression platens. This assembly should be factory installed.
• It should be noted that after installing, the vertical clearance between the platens decreases by 50 mm.
  Block Platens Lifting Assembly is used for easy removal of the lower platen of Block Platens and easy replacement of the distance pieces between the piston and the lower platen.

Distance Pieces :

• Distance pieces are used to reduce the amount of vertical clearance between the upper platen and the lower platen.

Loading Cylinder Assembly & Limit Switch :

• All frames have a single acting up stroking ram. The diameter of piston changes with regard to the capacity.
• The maximum ram stroke is 50 mm, a limit switch is fitted to prevent over travel of the ram which cuts the power to the pump for safety.
• At the end of the test process to start a new test the piston returns to default position.
• The pressure transducer is used for load measurements.
• There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

Hydraulic Power Pack and Digital Data Acquisition & Control System

Hydraulic Power Pack :

• Automatic Hydraulic Power Pack, dual stage, controlled by digital readout unit is designed to supply the required oil to the load frames for loading.
• Controller unit has a simple and compact configuration. The Hydraulic Power Pack, Control and Read out Units are positioned on the right hand side of the load frame for easier accessibility, increased productivity and for safer operations.
• Very silent power pack can load the specimen between 1 kN/sec. to 20 kN/sec, with an accuracy of °5%. A Rapid approach pump is supplied as standard. Safety valve (maximum pressure valve) is used to avoid machine overloading.
• Maximum working pressure of the system is 400 bar.

Dual Stage Pump :

• The dual stage pump is formed by two groups;
• Low pressure gear pump
• High pressure radial piston pump
• On the dual stage pump, a high delivery, low pressure gear pump is used for rapid approach, while a low delivery, high pressure radial piston pump is used for test execution. The rapid approach facility shortens the time interval from piston start until the upper platen touches to the specimen.

Motor :

• The motor which drives the dual pumps is an AC motor and it is controlled by motor inverter. The variation in the oil flow is executed with the variation of the rotation speed of the motor.

Distribution Block :

• A distribution block is used to control the oil flow direction supplied by the dual stage pump. The following parts are fitted to the distribution block;
  Solenoid valve, Safety valve (max. pressure valve), Transducer, Low pressure gear pump and High pressure radial piston pump.
  High Precision Pressure Transducer (Optional Upgrade) :
• The range of Automatic Machines can be upgraded with option High Precision Pressure Transducer special calibration Class 1 starting from 1% of the full range.

This unique performance enables the machines to be used for;

• Early age compression strength tests
• Flexural and splitting tests by using proper accessories
• Mortar compression tests by using proper accessories
• Core Testing

Oil Tank :

• The tank includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil - temperature can be seen on the indicator fitted to the tank.
• Capacity: 25 L
• Hydraulic motor oil number 46 must be used.

Digital Data Acquisition & Control System

• The unit is designed to control the machine and processing of data from load-cells and pressure transducers which are fitted to the machine.
• All the operations of the unit are controlled from the front panel consisting of a LCD display and function keys.
  The unit has easy to use menu options.
• Digital graphic display unit loading rate and load values can be monitored.
• Digital graphic display is able to draw real-time –Load vs. Time–.

Software :

• Sample, company, laboratory and test values can be entered in the programme.
• Load-time graphic, test reports and sample reports can be taken.
• Software provides test data, results, and the load-time graphs can be seen at LCD screen.
• The Automatic Compression Machine can be controlled (Start, Stop commands) by a computer with the software free of charge. This software provides data acquisition and management for compression, tensile and splitting tensile test throughout the test execution.
• Test parameters and details such as client details, test type, specimen type and user info can be entered and printed out as test report and graph.
• Test results, graphics and properties of 24 different specimens can be saved in one folder.
• Old test folders can be reviewed.
• User can highlight all 12 different specimen curves in different colors on the graphics.
• Frequently used information can be stored in memory and reused.
• User can access any data of previously completed tests and use in new report.

Capacity (kN) :

• AECE2239/A - 1500
• AECE2240/A - 1500
• AECE2239/B - 2000
• AECE2240/B - 2000
• AECE2239/C - 3000
• AECE2240/C - 3000

Roughness (°m) :

• AECE2239/A - – 3.2
• AECE2240/A - – 3.2
• AECE2239/B - – 3.2
• AECE2240/B - – 3.2
• AECE2239/C - – 3.2
• AECE2240/C - – 3.2

° Lower Platen (mm) :

• AECE2239/A - 300
• AECE2240/A - 165
• AECE2239/B - 300
• AECE2240/B - 165
• AECE2239/C - 300
• AECE2240/C - 165

° Upper Platen (mm) :

• AECE2239/A - 300
• AECE2240/A - 165
• AECE2239/B - 300
• AECE2240/B - 165
• AECE2239/C - 300
• AECE2240/C - 165

Max. Vertical Clearance (mm) :

• AECE2239/A - 340
• AECE2240/A - 365
• AECE2239/B - 340
• AECE2240/B - 365
• AECE2239/C - 340
• AECE2240/C - 365

Piston Diameter (mm) :

• AECE2239/A - 230
• AECE2240/A - 230
• AECE2239/B - 250
• AECE2240/B -250
• AECE2239/C - 320
• AECE2240/C - 320

Piston Stroke (mm) :

• AECE2239/A - 50
• AECE2240/A - 50
• AECE2239/B - 50
• AECE2240/B - 50
• AECE2239/C - 50
• AECE2240/C - 50

Horizontal Clearance (mm) :

• AECE2239/A - 320
• AECE2240/A - 320
• AECE2239/B - 350
• AECE2240/B - 350
• AECE2239/C - 440
• AECE2240/C - 440

Plate Thickness (mm) :

• AECE2239/A - 50
• AECE2240/A - 50
• AECE2239/B - 50
• AECE2240/B - 50
• AECE2239/C - 50
• AECE2240/C - 50

Platen Hardness (HRC) :

• AECE2239/A - 55–60
• AECE2240/A - 55–60
• AECE2239/B - 55–60
• AECE2240/B - 55–60
• AECE2239/C - 55–60
• AECE2240/C - 55–60

Oil Capacity (L) :

• AECE2239/A - 25
• AECE2240/A - 25
• AECE2239/B - 25
• AECE2240/B - 25
• AECE2239/C - 25
• AECE2240/C - 25

Max. Working Pressure (bar) :

• AECE2239/A - 400
• AECE2240/A - 400
• AECE2239/B - 400
• AECE2240/B - 400
• AECE2239/C - 400
• AECE2240/C - 400

Power (W) :

• AECE2239/A - 750
• AECE2240/A - 750
• AECE2239/B - 750
• AECE2240/B - 750
• AECE2239/C - 750
• AECE2240/C - 750

• Pace rate control from 1 kN/sec to 20 kN/sec depending on piston size.
• Can control 2 frames (optional).
• Can make test with load control.
• Real time display of test graph.
• Analog channels for different frame load cells.
• RS-232 serial port for computer interface.
• LCD display.
• 2 different unit system selection; kN and kgf.
• 2 different unit system selection; SI and Metric.
• Real-time clock and date.
• Free PC software for test control and report printout.
• Maximum pressure valves to avoid machine overloading
• Piston travel limit switch
• Emergency stop button
• Software controlled maximum load value
• Front and rear transparent durable Plexiglas guards
