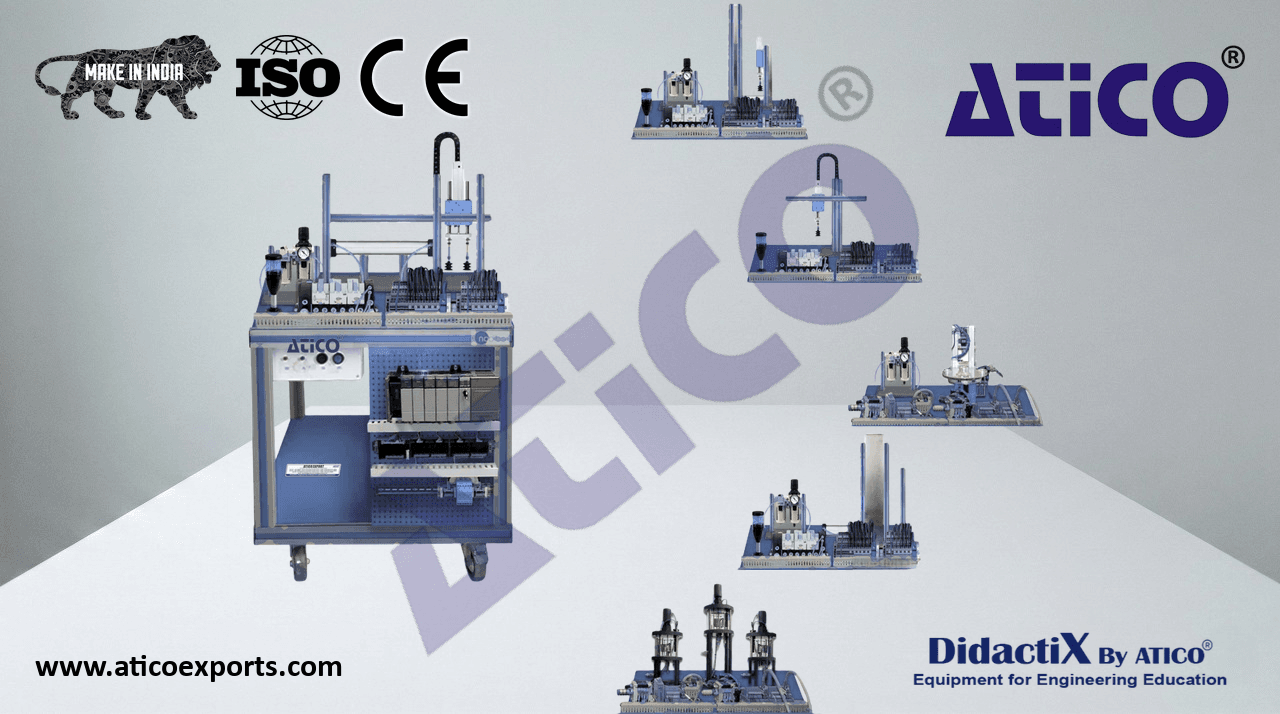

Automatic Pressing Workstation

The workstation includes a set of practical exercises through which the student will understand how to control an automatic pressing system with a pneumatic handling system.

ATENG 12544 — Automatic Pressing Workstation

Mounted with aluminum profiles.

• Electrical panel:
  Differential magneto-thermal switch.
• Power supply of 24 VDC.
• Control panel:
  Mushroom head emergency stop push button switch.
  Start and Stop pushbuttons.
  Switch for manual or automatic operation.
  Light indicator.
  Led stack light.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator with water trap.
  Manometer with double scale indicator.
  Shut-off valve.
  2 Simple acting pneumatic actuators.
  Double acting pneumatic actuator.
  3 pneumatic monoestable 3/2 solenoid valves.
  Pneumatic bistable 5/2 solenoid valve.
  Spring centered 5/3 pneumatic solenoid valve.
  Individually identified tubes and push in fittings.
• Vacuum circuit:
  4 telescopic flat suction pads made of NBR rubber mounted on an aluminum plate.
  Venturi effect vacuum ejector.
  2 Pneumatic monostable 2/2 solenoid valves.
  Pressure relief valve.
• Hydraulic circuit:
  Double acting hydraulic actuator.
  Overcenter hydraulic valve.
  Hydraulic 4/2 solenoid valve.
• Sensors:
  Inductive effect sensor.
  11 reed effect limit switches
• Fault generation module:
  Box with lock with key.
  Allows to generate 20 different faults.
  Each fault is generated through toggle switches.
  2

Specifications

• Recommended accessories: (Not included)
• AE-PLCB. Basic PLC Trainer (optional).
  The AE-PLCB is available with different PLC manufacturer models.
• N-ALI02: is the Main power supply.
• N-CPU: is the PLC CPU that contain the digital In/Out terminals. All CPUs types allow to connect with the PC (for programming and
  monitoring) and the other modules of the trainer through an Ethernet network.
• N-ESA: is the analog In/Out module used to acquire and generate analog signals.
• N-HMIB: is the Human Machine Interface module with a touch screen.
• N-MT: is the test module with switches, push buttons and potentiometers to generate digital and analog signals.
  Software to program the PLC and the HMI device.
• AE-CP. Air compressor module (optional).
• Low noise level: 40 dB maximum.
• Capacity of the boiler: 9 l.
• Power: 340 W.
• Air intake: 50 l/min.
• Maximum pressure: 8 bar or 0.8 MPa.
  It Includes hoses to easy connect with the units.
• AE-GH. Hydraulic pump module (optional).
  Electric motor with hydraulic pump.
  Reservoir tank.
• Pressure: 185 bar.
  Double scale manometer (MPa and Psi).
  Temperature meter.
  Hydraulic liquid level indicator.
  Control panel with ON/OFF lit pushbuttons and emergency stop button.
  Hydraulic liquid required for the operation of the unit included.
  Cables and Accessories, for normal operation.
