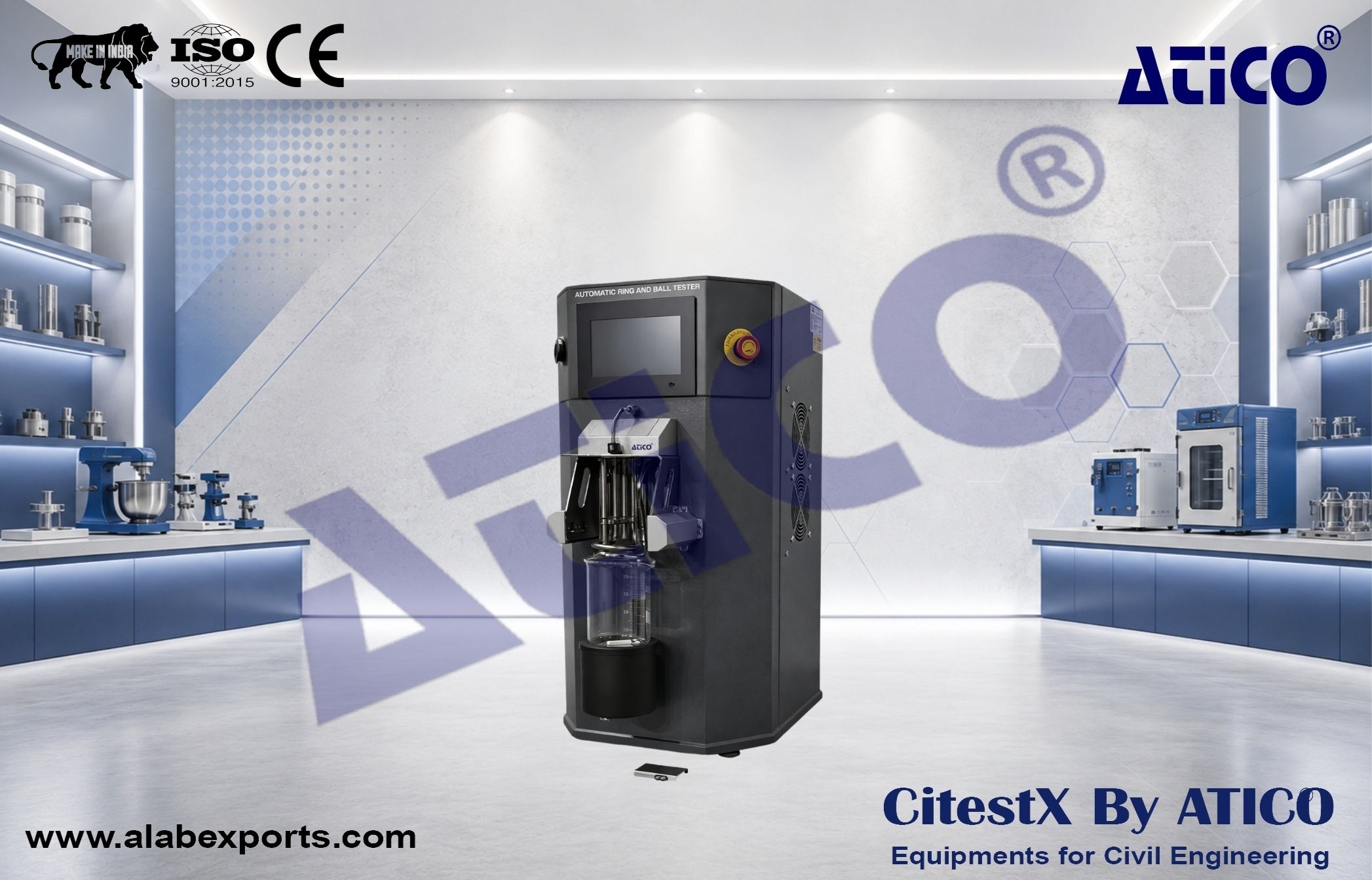

Automatic Ring And Ball Softening Point Apparatus

Automatic Ring and Ball Apparatus is used for determining softening point of bituminous materials by ring and ball method.

Operation / Working Principle

The device is Microprocessor controlled and has Colored, Large Touch screen display. Two bitumen samples casted in shoulder brass rings while being held in horizontal position, temperature is increased controlled according to the standards.
The softening point is the average of the temperature values read from the thermometer when each ball embedded in the disc shaped bitumen samples drops below 25.0 ° 0.4 mm. The softening point is detected by the photoelectric sensors and the temperature is measured with the PT100 sensor.

Test Range

Single test option is available as 30 C to 80 C for water.

Cooling System

The cooling system is integrated to the device. The cooling system ensures that the temperature of the test liquid is reduced rapidly and the stable temperature is reaches the temperature of the standard are achieved and reduces the time between two tests.

Components / Supply

Automatic Ring and Ball Apparatus consist of 2 steel balls, Frame (thermometer and ring holder, ball centering guide and bottom plate), 2 brass rings and 800 ml glass beaker.

Optional Accessories

Thermometer should be ordered separately

Main Features
Features

• Heating system
• Cooling system
• Electrical beaker lifting system
• Speed controlled magnetic stirrer
• Digital Barrier type photoelectric sensor (for the determination of the actual value of the bitumen softening point)
• Microprocessor controlled (automatically programmable for water)
• Colored, Large Touch Screen
• PT100 temperature probe
• 0-10 V, VDC Analog SSR
• USB port for computer or printer connection
• PID controlled heating system
• Custom Software

Software

Features

• Date/Time
• Test parameter suitable for test type: 80C
• Preheat temperature selection and thermocouple calibration (for heater temperature measurement)
• Magnetic stirrer speed adjustment (between 10 and 150 rpm)

Safety Features

Features

• The heater turns off automatically at the end of the test cycle.
• The experiment is stopped automatically when the sensor fails or fails to position.

STANDARDS COMPLIANCE :

• COMPLIED AS PER EN 1427, ASTM D36, AASHTO T 53

Dimensions (cm) :

• 52x43x73

Weight (kg) :

• 27

Power Supply :

• 220 V, 50-60 Hz, 1 ph

Dimensions (cm) :

• Cooling System - ---
• Steel ball, 2 pieces - ---
• Frame - ---
• Brass ring, 2 pieces - ---
• Glass Beaker, 800 ml - 10x10x13,5
• Glass Thermometer; max 110C - 3x3x30
• Glass Thermometer; max 360C - 3x3x30
• ASTM 15C Thermometer; -2 (+80)°C - 3x3x30
• ASTM 16C Thermometer; 30-200C - 3x3x30

Weight (kg) :

• Cooling System - ---
• Steel ball, 2 pieces - ---
• FrameV---
• Brass ring, 2 pieces - ---
• Glass Beaker, 800 ml - 0,5
• Glass Thermometer; max 110C - 0,1
• Glass Thermometer; max 360C - 0,1
• ASTM 15C Thermometer; -2 (+80)C - 0,1
• ASTM 16C Thermometer; 30-200C - 0,1

• With the help of a magnetic stirrer with an adjustable speed control system, a homogenous temperature distribution is achieved in the vessel and temperature control in accordance with the relevant standards during the experiment is provided by the 0-10 V, VDC Analog SSR.
• Due to its custom software; selection of test method and test parameters, automatic start of the test, data acquisition, data recording and printing and calibration of the device can be performed. The device can save a total of 9 tests. Thanks to the USB port available on the device, the data can be transfered to the computer and opened in excel.
