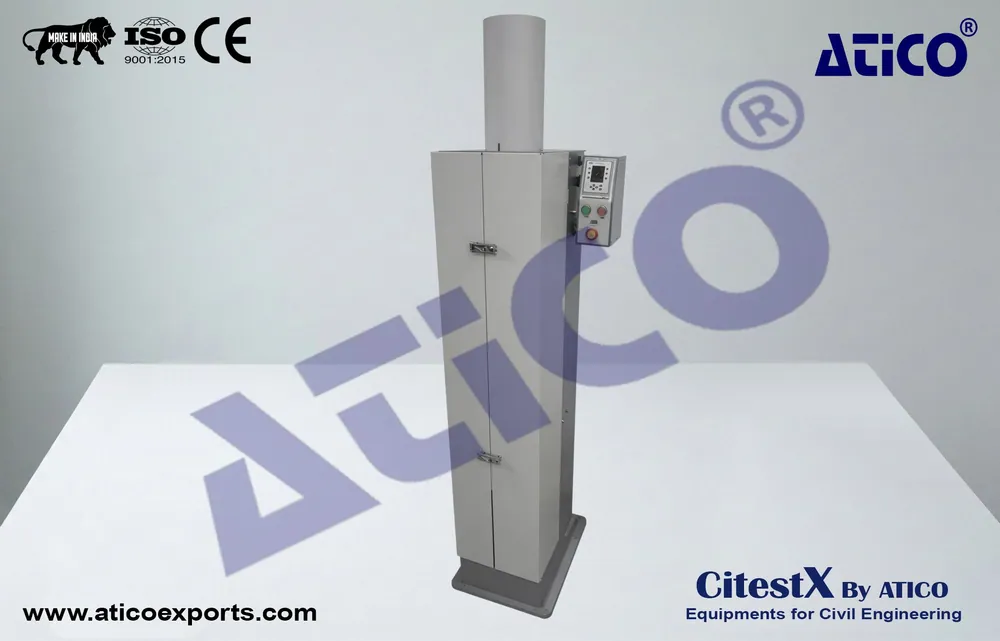

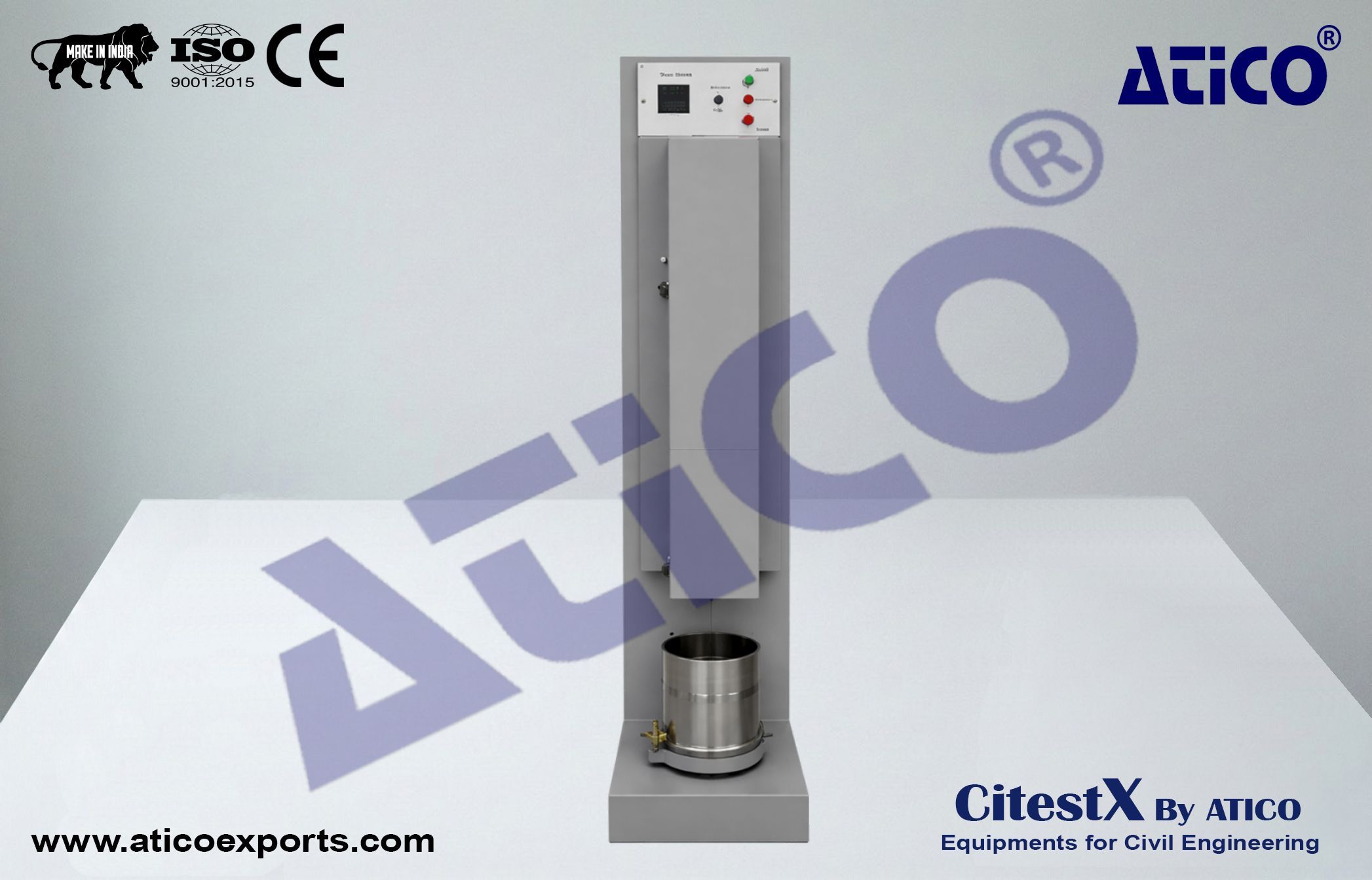

Automatic Soil Compactor

Standards Compliance :

• Complied as per ASTM D558, D1556, D698, D1557, D1883, EN 13286-2, 13286-4, BS 1377-4, AASHTO T99, T134, T135, T136, T180, T193, NLT 107/98, NLT 111/87, TS 1900-1

Application :

• Automatic Soil Compactor is designed to compact Standard / Modified and CBR specimens, it ensures an extremely uniform compaction degree, granting reliable and repeatable test results.

Operation :

• This automatic blow pattern ensures effective and equal compaction for each layer of soil by rotating the base table, so the mould is in equal steps and travelling the rammer across the mould.
• The table rotates the mould in equal steps and the number of blows per layer can be set at the beginning of the test by the digital counter. User defined blow number and in-out distribution is also available.
• Start button, Stop button and Emergency stop button are located beside the blow counter.

Rammer Specifications :

• The rammer is circular faced. Rammer weight is adjustable to 2.5 kg or 4.5 kg according to reference standard.
• When compacting specimens in Standard Proctor moulds, the unit operates on single radius and when compacting specimens in Modified Proctor or CBR moulds, the unit operates on inner and outer radius to obtain even compaction.
• Mould selection number of blows, count of the number of inner and outer drops can be selected as user defined, as well as 4 different programs defined in accordance with the standards from the digital screen mounted on the device.
• Noise Reduction Cabinet is available as optional and should be ordered separately.

Dimensions (cm) :

• 65°55°155cm

Weight (kg) :

• 125kg

Power Supply :

• 220 V, 50 Hz, 1 ph

• The compactor is easy to use, friendly menu driven, simple and practical maintenance.

• Compactor is equipped with programmable digital counter which allows machine to stop at the preset number of blows.

• The height and weight of the rammer is adjustable to suit test requirements. Top quality components and high accuracy mechanical workings grant very long life and also under intensive utilizations.

• The original lift system of the rammer can be selected at 300 mm, 305 mm, 450 mm or 457 mm, granting a correct and constant fall height.

• According to the standard used, rammer heads with a diameter of 50 mm or 50.8 mm can be attached to the circular rammer. (The rammer diameter to be used must be specified at the time of order.)
