Automotive Auxiliary Components Unit

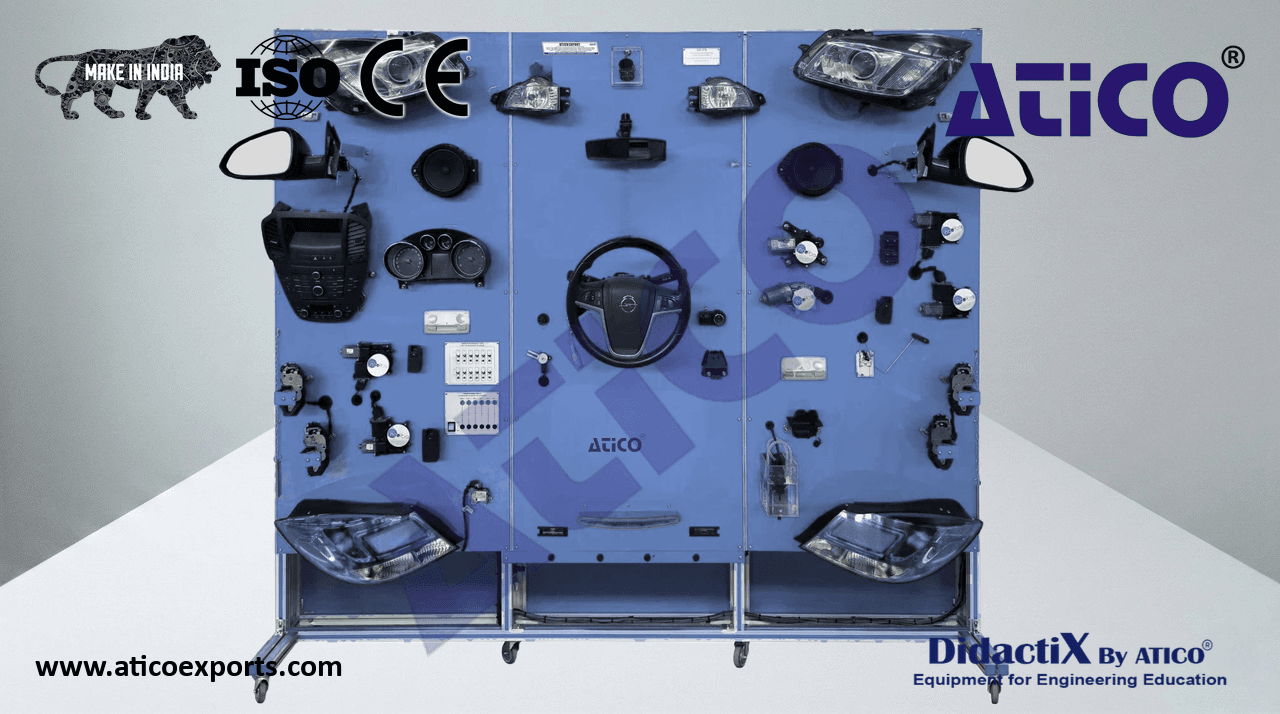

The Automotive Auxiliary Components Unit, to help the students to understand the operation of real automotive sensors and actuators and how an electronic control unit works.

ATENG 11401 — Automotive Auxiliary Components Unit

• The “ATENG 11401” unit includes the following elements:
• Electronic control system:
  Electronic control unit.
  Wiring from electronic control unit to each component.
• Fuses and relays box:
  Car GEM module.
• Operating voltage: 12 VDC.
  OBDII diagnosis connector.
• Sensor and actuator circuits:
• Power supply components:
• 12 VDC power supply to feed the system.
  Car ignition switch.
  ATENG 11401 detail
• Power door locks system:
  Remote car key.
  Front left and right electronic door locks.
  Rear left and right rear electronic door locks.
  Trunk electronic door lock.
  Electronic door lock of the fuel tank cap.
  Trunk door push-button.
• Car lightning system:
  Light sensor.
• Front lights:
  Automatic headlamp leveling system.
  Left and right low beam headlights.
  Left and right high beam headlights.
  Daytime running lights.
  Left and right front turn signals.
  Left and right side turn signals.
  Left and right front fog lights.
• Rear lights:
  Left and right rear turn signals.
  Rear fog light.
  Left and right rear brake lights.
  Third brake light.
  Reverse light.
  License plate lights.
  2

Specificacions

• Auxiliary lights:
  Interior car light.
  Trunk light.
• Rear-view mirror system:
  Rear-view mirror control switch.
  Adjustable and heated lateral rear-view mirror.
  Interior rear-view mirror with auto-dimming.
• Car instrument panel with controls:
  Tachometer.
  Speedometer.
  Fuel gauge.
  Car lightning system indicators.
  Battery charge warning indicator light.
  Oil-pressure warning indicator light.
• Light control switch:
  Low beam headlights.
  High beam headlights.
  Front fog lights switch.
  Rear fog light switch.
• Steering wheel with controls:
  Wiper washer control.
  Horn push-button.
  Emergency lights push-button.
  Reverse switch to activate the reverse light.
  Brake switch to activate the brake lights.
  Turn signals control.
• Wiper washer system:
  Rain sensor.
  Front and rear wiper washer motor.
  Washing water pump.
• Car audio system:
  Car stereo radio.
  Car stereo radio control panel.
• Two 12 VDC speakers.
• Car electric windows system:
  Left and right front electric windows motor.
  Electric windows control switches.
  CAN bus communication.
• Ultrasonic car park system:
  Four ultrasonic emitter and receiver units.
  Ultrasonic car control unit.
• 12 VDC speaker.
  Fuel level sensor.
• 12 VDC car socket.
  Heated rear window simulator.
• Test module to check the operation of each sensor and actuator working individually:
  Attached to the frame of the unit.
• 4 mm lab jack with the 12 VDC power supply.
• 4 mm lab jack with the communication terminals of the electronic control unit.
• Fault generation module:
  Attached to the frame of the unit.
  Generates twelve faults in the operation of different sensors and actuators and the communication between them and the electronic
  control unit.
  The faults are generated through toggle switches.
  Cables and accessories, for normal operation.
