Automotive Engine Cooling Circuit Unit

The Automotive Engine Cooling Circuit Unit, to teach the electronic components, sensors and actuators related to the engine cooling systems used in the automotive field.

ATENG 11399 — Automotive Engine Cooling Circuit Unit

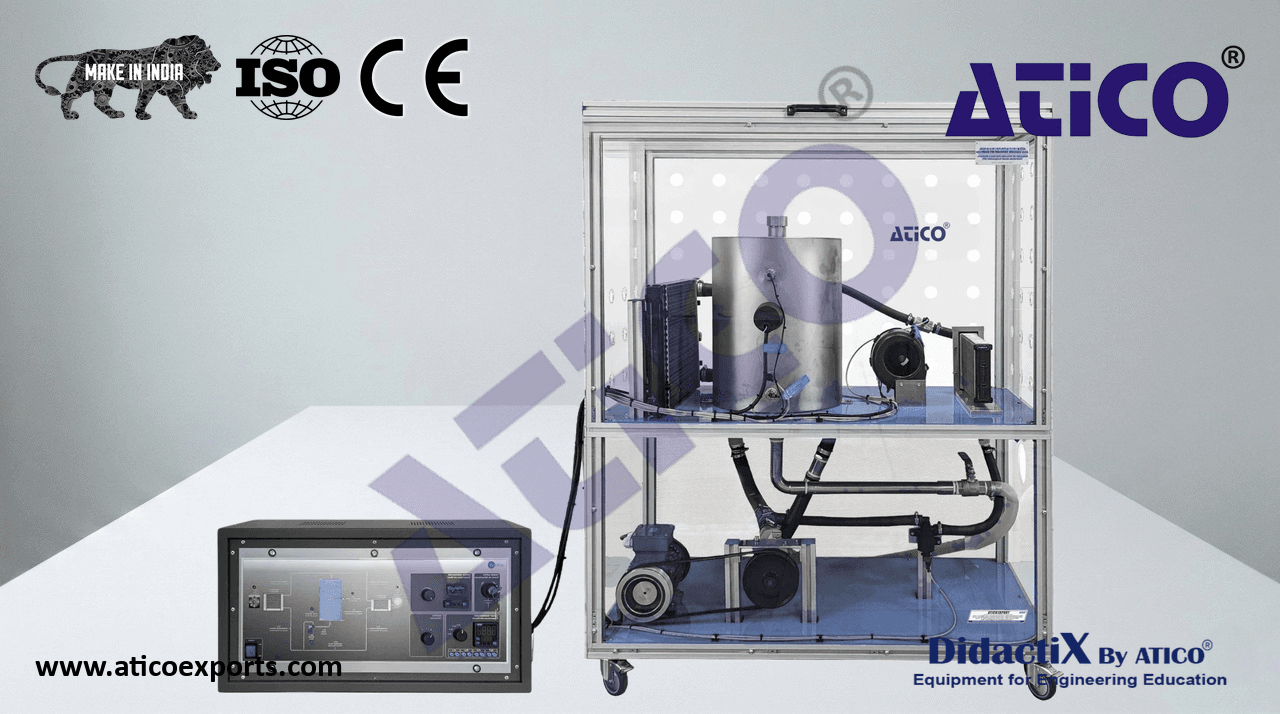

The “ATENG 11399” unit is mounted on a metallic frame.

• The “ATENG 11399” unit includes the following elements:
• Power supply components:
• Power supply:
• Operating voltage: 12 VDC.
  Car ignition switch.
• Control components:
  Electronic control unit.
  Control switch.
  ATENG 11399 detail
  Tank level switch.
  Power on indicator for the actuators.
• Temperature sensors:
  One temperature sensor in each circuit stage.
  Temperature meter for the engine and the different circuit stages.
• Coolant circuits:
  Circuit to cool the engine.
  Circuit to heat the passenger cabin.
• Actuator components:
  Simulated engine.
  Engine cooling fan.
  Passenger cabin fan.
  Engine coolant pump.
  Solenoid valve to activate the circuit to heat the passenger cabin.
  Cables and accessories, for normal operation.
