Automotive Fundamental Electronic Circuits Unit

The Automotive Fundamental Electronic Circuits Unit, is a group of the main electronic circuits used in all modern cars today. It offers a good introduction to the automotive electronic systems.

ATENG 11393 — Automotive Fundamental Electronic Circuits Unit

• The “ATENG 11393” unit includes the following circuits:
• DC motor circuits:
  DC motor power supply.
  DC motor speed control.
• Lamp circuits:
  Lamp resistance.
  Light intensity variation.
• DC power supply:
• Circuit with a car key-switch to supply 12 VDC to the circuit.
• Electronic ignition circuits:
  Adjustable astable multivibrator circuit with 555IC.

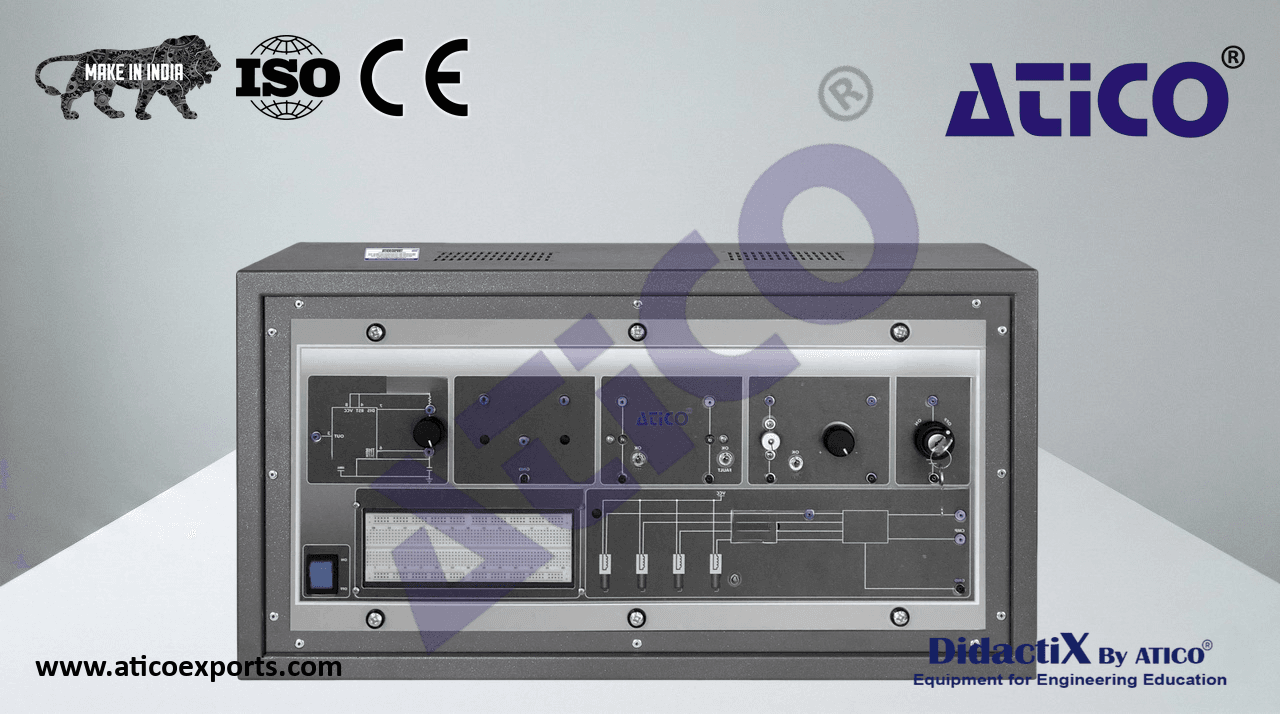

  ATENG 11393 detail
  Camshaft and crankshaft sensor emulator using electrical signals.
  Spark generator system controlled electronically and Hall sensor.
• Protoboard plate:
  Protoboard plate for experimental circuit mounting without soldering.
  Components to mount an adjustable astable multivibrator circuit with 555IC.
  Cables and accessories, for normal operation.
