Automotive Sensors Unit

The Automotive Sensors Unit, to study the electronics componets and sensors used in the automotive.

ATENG 11404 — Automotive Sensors Unit

• The “ATENG 11404” unit includes the following elements:
  Power supply and signal conditioning circuits.
• Motor sensors:
  Oxygen or Lambda sensor.
  Manifold absolute pressure sensor.
  Knock sensor.
  Throttle-valve position sensor.
• Inlet air admission sensors:
  Outdoor temperature sensor.
  Inlet air temperature sensor.
  Air flow sensor.
• Safety sensors:
  Inertia switch.

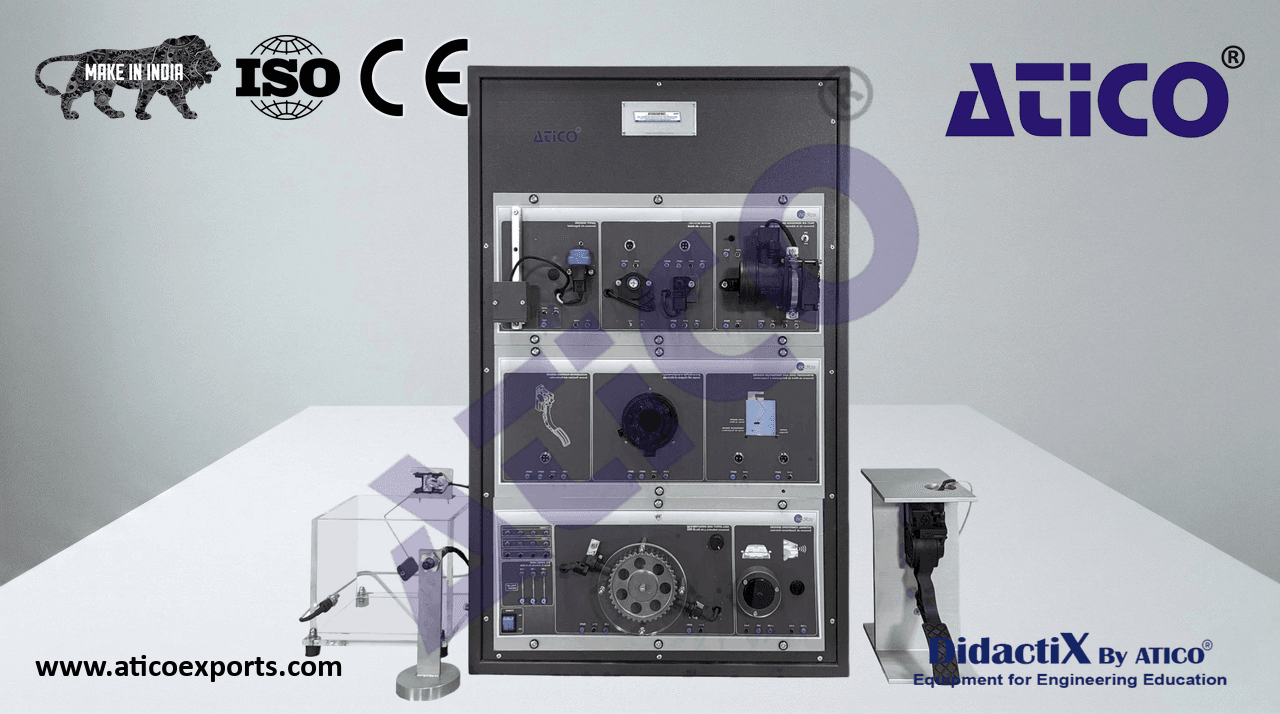

  Yaw-rate and transverse acceleration sensor. ATENG 11404 detail
• External conditions sensors:
  Rain and light intensity sensor.
  Ultrasonic proximity sensor.
• Hall-efect and inductive sensors:
• Camshaft toothed disc:
• 12 VDC motor.
  Adjustable speed by pulse width modulation PWM.
  Inductive sensor (also called phase sensor).
  Hall effect sensor.
• Refrigerant level and temperature sensors:
  Methacrylate tank with 2.5 l capacity.
  Refrigerant level switch.
  Refrigerant temperature sensor.
  Accelerator pedal position sensor.
  Steering angle sensor.
  Cables and accessories, for normal operation.
