Automotive Wiper Washer Unit

The Automotive Wiper Washer Unit, to study the electronic components, sensors and actuators related to the wiper washer systems used in the automotive.

ATENG 11398 — Automotive Wiper Washer Unit

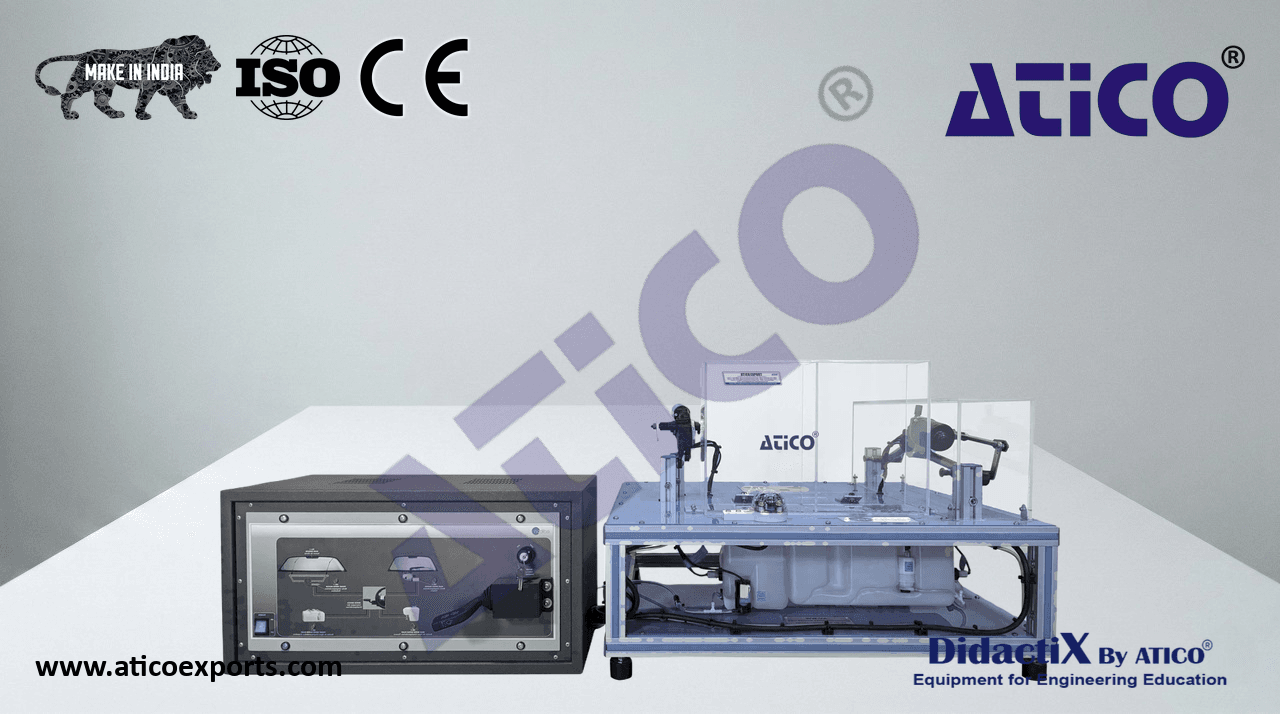

The “ATENG 11398” unit is mounted on a metallic frame.

• The “ATENG 11398” unit includes the following elements:
• Power supply components:
• Power supply:
• Operating voltage: 12 VDC.
  Car ignition key.
• Wiper washer tank components:
• Front wiper washer tank:
  3 l of capacity.
  Wiper washer tank level switch. ATENG 11398 detail
• Rear wiper washer tank:
  1.5 l of capacity.
  Wiper washer tank level switch.
• Control components:
  Electronic control equipment.
  Rain sensor.
  Wiper washer control switch.
• Lights indicators:
  Power on indicator for every motor.
  Wipers washer tanks level indicator.
• Actuator components:
  Front wiper washer washing water pump.
  Rear wiper washer washing water pump.
  Front wiper washer motor.
  Front wiper washer nozzles.
  Front wiper washer motor transmission and linkage.
  Rear wiper washer motor.
  Rear wiper washer nozzles.
  Rear wiper washer motor transmission and linkage.
  Cables and accessories, for normal operation.
