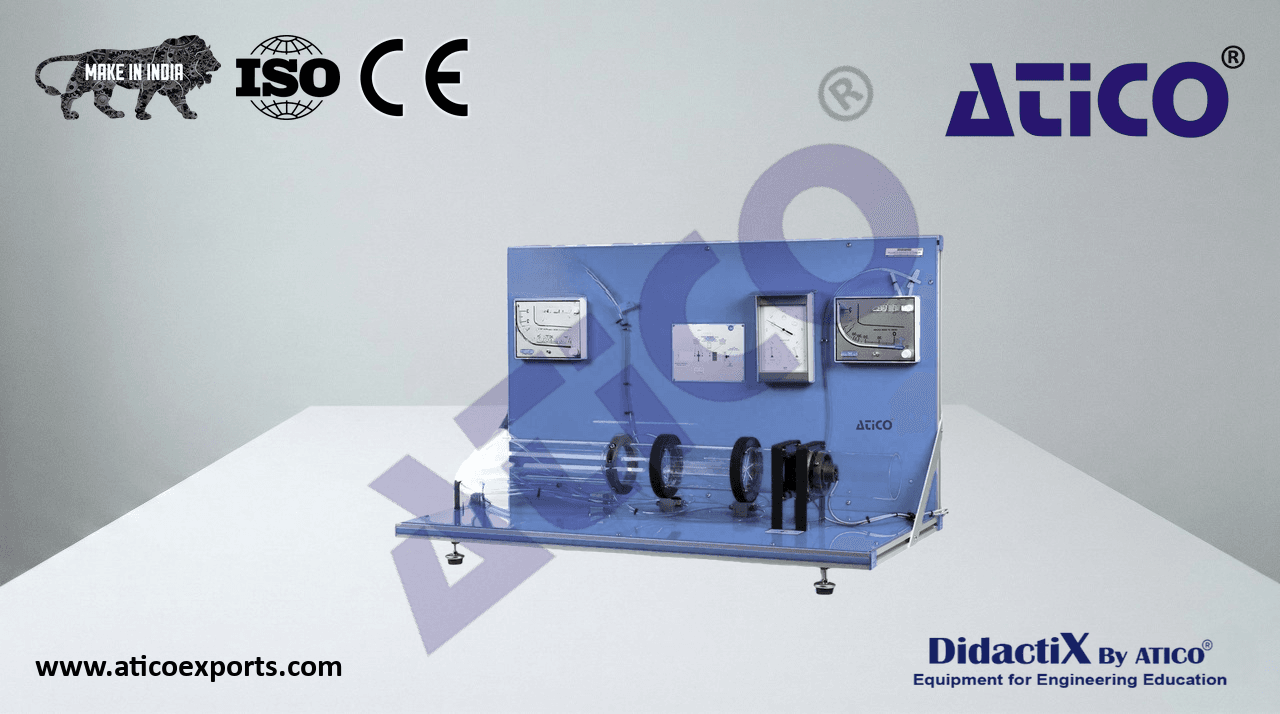

ATENG 11846 — Axial Fan Teaching Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The unit includes:
- Single stage axial fan with speed regulation, range: 0 – 7000 rpm.
- Transparent straight duct for suction and discharge:
- Diameter: 115 mm.
ATENG 11846 detail
Included an air flow rectifier and an orifice plate with air flow measurement.
Adjustable aperture system to regulate the air flow rate.
- Speed sensor, range: 0 – 7000 rpm.
- Slanted tube manometer to measure the differential pressure and the air flow, range: 0 – 3 inch H O (0 – 76 mm H O).
2 2
- Slanted tube manometer to measure the static pressure, range: 0 – 3 inch H O (0 – 76 mm H O).
2 2
Weather station, with room temperature, pressure and humidity measurement to know the conditions of the inlet air.
- Electronic console:
Metallic box.
Speed variator to modify the speed of the axial fan.
Speed sensor connector.
Digital display for the speed sensor.
Digital display for the wattmeter.
Wattmeter.
Cables and accessories, for normal operation.
