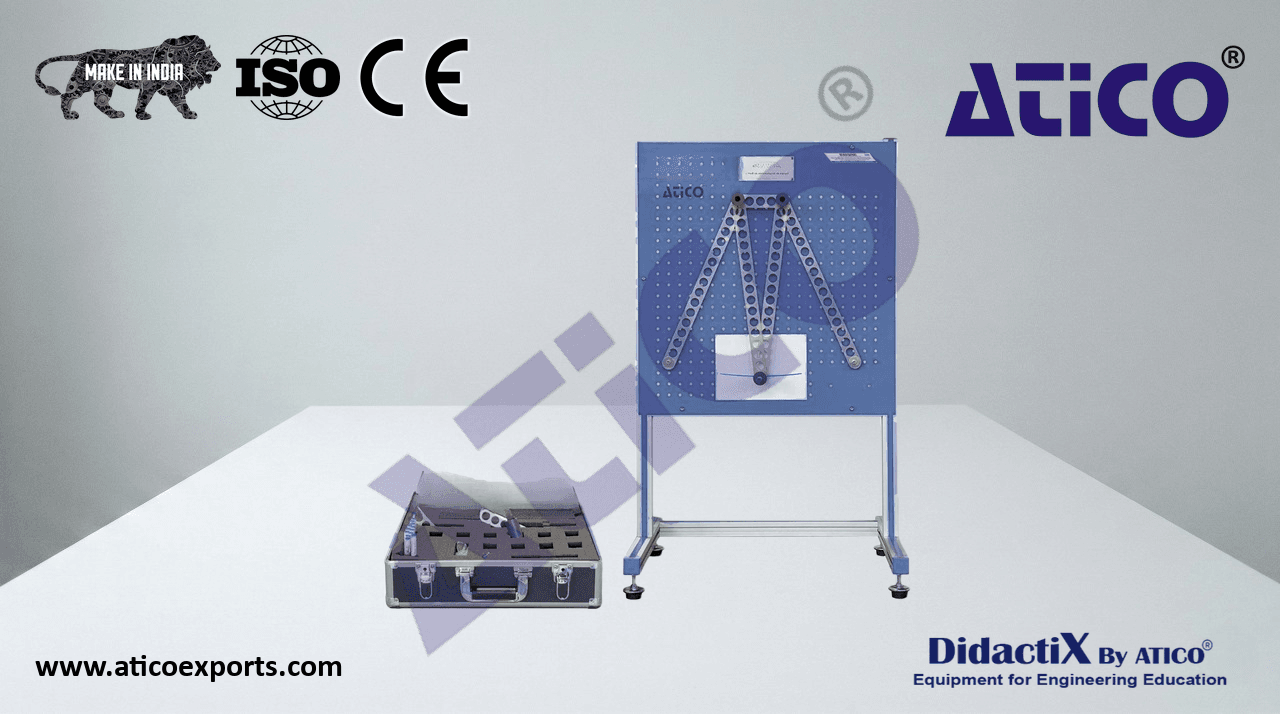

Bar Linkages Unit

The Bar Linkages Unit, allows multiple experiments to be carried out using different arrangements of bars and supports. This unit introduces students to key engineering terms, such as four-bar mechanisms or rotary and linear motion.

ATENG 12076 — Bar Linkages Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12076” unit mainly consists of:
• Storage suitecase that includes:
• Set of bars:
  Four bars with seventeen holes.
  Six bars with thirteen holes. ATENG 12076 detail
  Six bars with nine holes.
  Six bars with five holes.
  Joints and pen holders.
  Two magnetic wipeable sheets.
  Non-permanent markers.
