Base Service Unit (Common for all available Heat Exchangers type "TI.B")

This unit is common for Heat Exchangers type "TI. B" and can work with one or several exchangers.

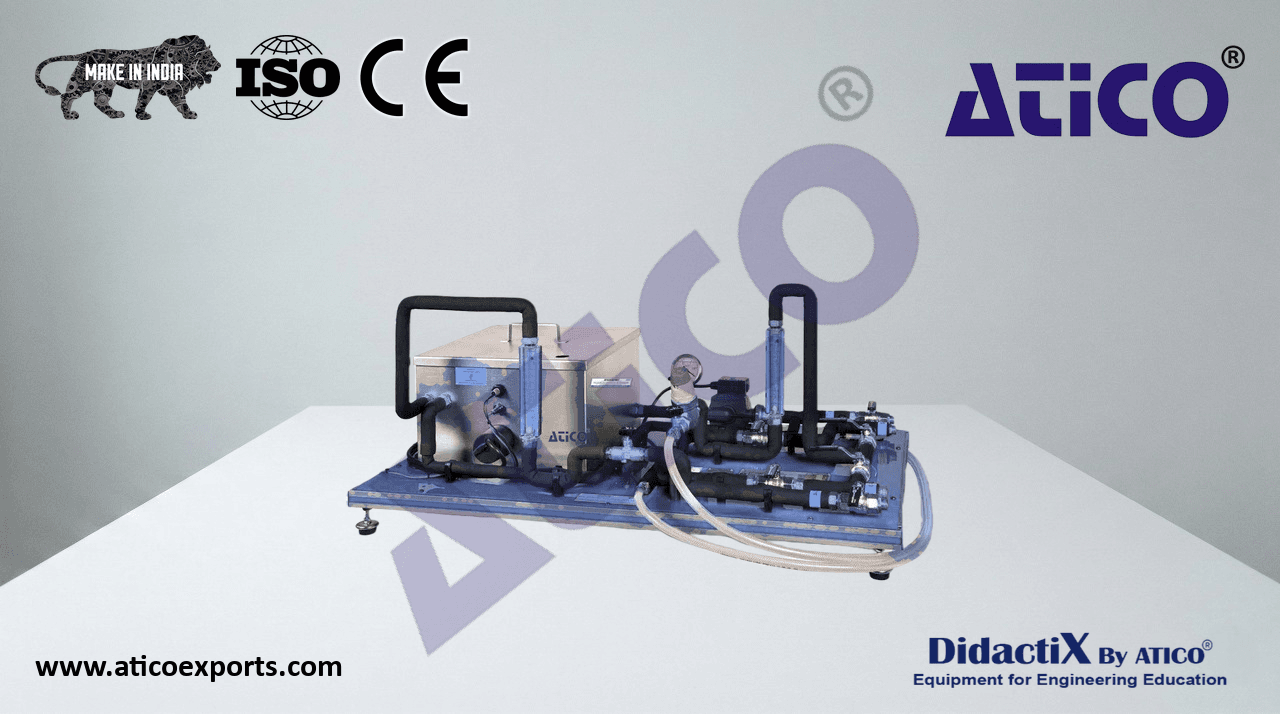

ATENG 12875 — Base Service Unit (Common for all available Heat Exchangers type "TI.B")

• ATENG 12875. Base Service Unit:
  Bench-top unit.
  Anodized aluminum frame and panels made of painted steel.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to
  the real one.
  This unit is common for the required elements (at least one) (Not included).
• This unit performs the following tasks:
  Heating the water.
  Pumping of hot water.
  Change in the direction of cold water flows.
  Cold and hot water measures.
• Stainless steel tank (30 l), equipped with:
  Electric heating element (3000 W) with thermostat (70 °C), to heat the water. ATENG 12875 detail
  Temperature sensor (“J” type) to measure the water temperature.
  Level switch to control the water level in the tank.
  Stainless steel cover to avoid the contact with hot water. In this cover there is a hole that allows us
  to visualize the water level and also to stuff the tank.
  Draining water valve.
• Centrifugal pump, range: 0 – 3 l/min.
• Two flow meters, one for hot water and the other for cold water, range: 0.2 – 2 l/min.
  Control valves for the cold and hot water.
  Four ball valves that, depending on how we manipulate them, give us co-current or counter-current
  flux in the exchanger.
  Two ball valves to control and drain the hot water of the base unit.
• Pressure regulator to avoid the introduction of too much pressure in the exchangers, tared at 0.6 bar.
  Four flexible tubes to connect with the different exchangers.
• Electronic console:
  Common for the required elements (at least one) (Not included).
  Metallic box.
  Temperature sensors connectors.
  Digital display for the temperature sensors.
  Selector for temperature sensors.
  Level switch connector.
  Heating element connector.
  Heating element control (temperature control).
  Fan switch.
  Fan regulator.
  Stirrer switch.
  Pump connection.
  Pump switch.
  Cables and accessories, for normal operation.
