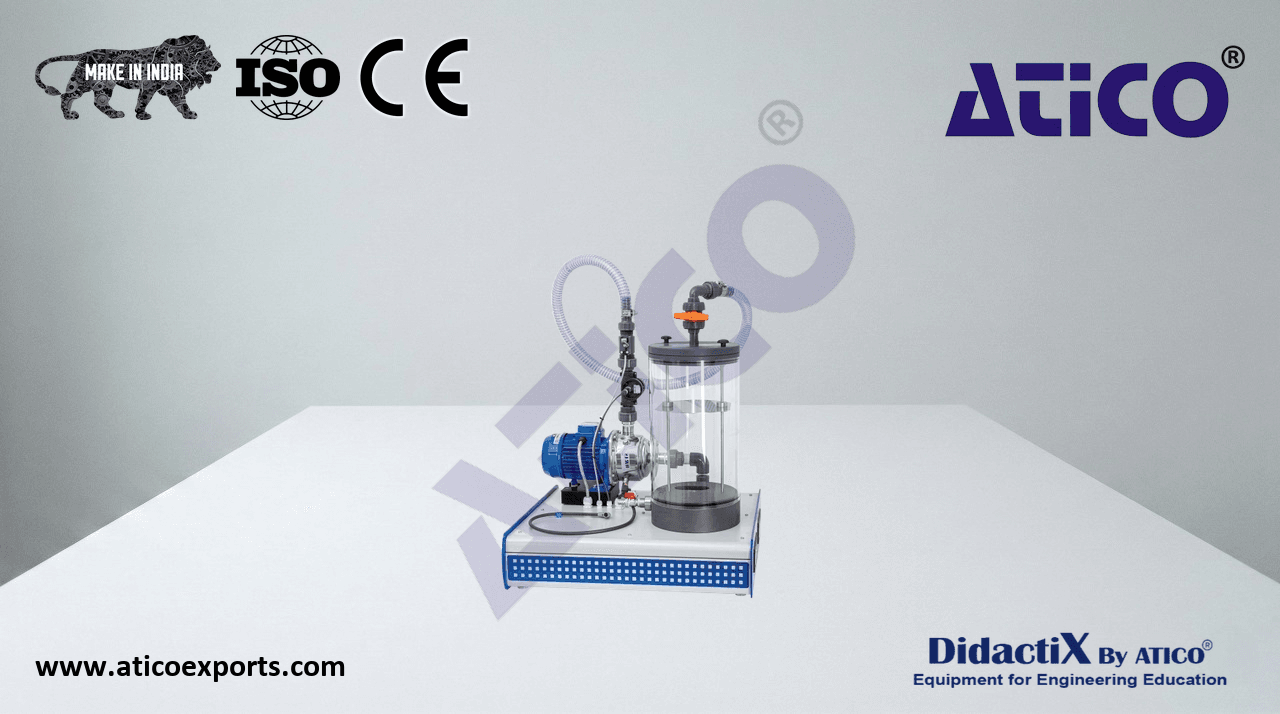

Base unit for turbines

The base unit is required to supply different turbines. Additionally, the base unit enables basic experiments on a centrifugal pump.

• supplying the turbines with water under pressure
• basic experiments on centrifugal pumps
• together with the turbines: investigation of operating behaviour and recording of turbine characteristics
• includes pump and transparent water tank
• low air entry into circulating water ensured by damping plate inside the tank
• variable pump speed via frequency converter
• sensors for flow rate and pressure
• due to integrated microprocessor-based instrumentation no additional devices with error-prone wiring are required
• display and evaluation of the measured values as well as operation of the unit via software
• software with control functions and data acquisition via USB under Windows 11
